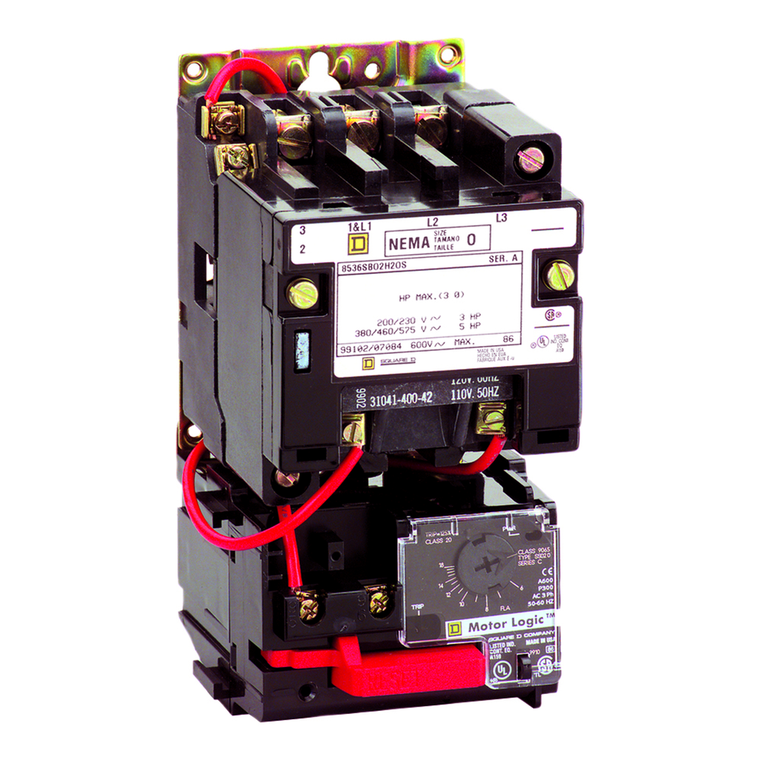

Schneider Electric 8536SBO2V08H30 NEMA Motor Starter, Type S, nonreversing, Size 0, 18A, 5 HP at 460 VAC, up to 100 kA SCCR, 3 phase, 3 pole, Motor Logic, 208 VAC coil, open

Schneider Electric 8536SBO2V08H30 NEMA Motor Starter, Type S, nonreversing, Size 0, 18A, 5 HP at 460 VAC, up to 100 kA SCCR, 3 phase, 3 pole, Motor Logic, 208 VAC coil, open

Schneider Electric
SKU:
8536SBO2V08H30
$578.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
Type S NEMA motor starters are used for full voltage starting and stopping of AC squirrel cage motors. Type S motor starters have ratings up to 810 amperes. This 3 pole NEMA Size 0 non-reversing starter has an 18 ampere rating. NEMA Size 0 motor starters have 3 phase ratings of 3 HP at 200 and 230 VAC and 5 HP at 460 and 575 VAC. This non-reversing NEMA motor starter has a Motor Logic overload relay with a 6A to 18A range to sense over current conditions. This NEMA starter has a 100 kA maximum SCCR (Short Circuit Current Rating) per UL508A when protected by an appropriate circuit breaker or fuse. Type S motor starters are available with replaceable coils in a wide variety of voltages. This starter has a 208 VAC 60 Hz operating coil wired for common control. This NEMA starter is an open device without an enclosure. This starter is 6.77 inches tall, 3.50 inches wide and 4.22 inches deep. A wide variety of accessories are available for Type S starters. Type S non-reversing NEMA motor starters are UL listed and CSA certified.
Additional Information
Depth:
107 mm
Motor Starter Type:
non reversing
Phase:
3 phase
Electrical Connection:
screw clamp terminals
Poles Description:
3P
Pvc Free:
Yes
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Control Type:
no control units
Product Certifications:
UL Listed || CSA || NEMA
Product Or Component Type:
motor starter
Country of Origin:
Mexico
[Uc] Control Circuit Voltage:
208 V AC 60 Hz
Local Signaling:
without pilot light
Thermal Overload Type:
solid state Motor Logic class 10/20
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Control Circuit:
common control circuit
Range Of Product:
S
Line Rated Current:
18 A
Eu Rohs Directive:
Not compliant
Warranty:
18 months
Rated Power In Hp:
3 HP 200 V AC || 3 HP 230 V AC || 5 HP 460 V AC || 5 HP 575 V AC
Auxiliary Contact Composition:
without
[Ue] Rated Operational Voltage:
600 V AC
Nema Size:
0
Nema Degree Of Protection:
not rated (open device)
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
