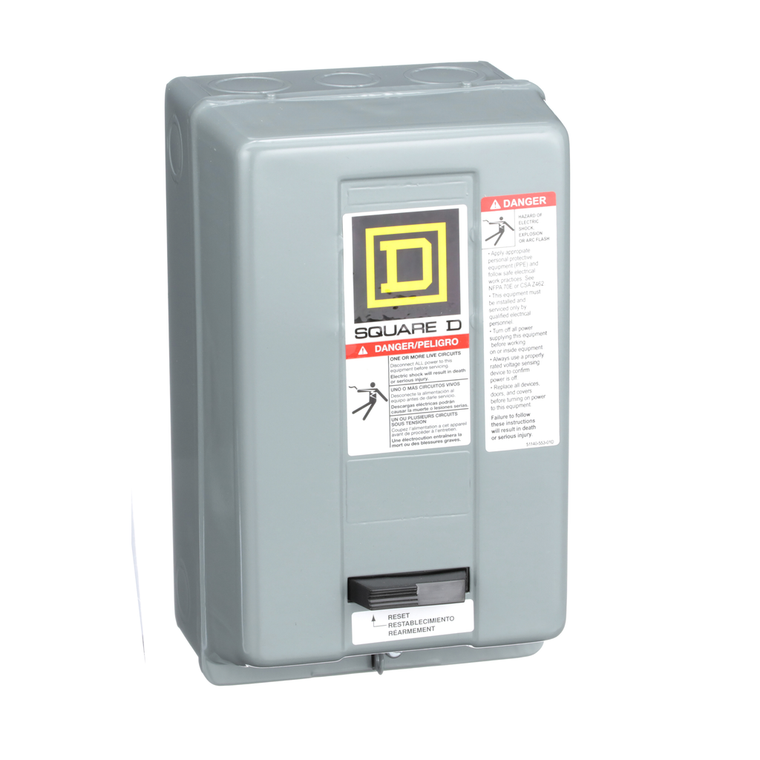

Schneider Electric 8536SCG3V01S NEMA Motor Starter, Type S, nonreversing, Size 1, 27A, 10 HP at 460 VAC, 5 kA SCCR, 3 phase, 3 pole, melting alloy, 24 VAC coil, NEMA 1

(No reviews yet) Write a Review
SKU:
8536SCG3V01S
MPN:
8536SCG3V01S
Condition:
New
Rated Power In Hp:
7.5 HP 200 V AC || 7.5 HP 230 V AC || 10 HP 460 V AC || 10 HP 575 V AC
Local Signaling:
without pilot light
Nema Degree Of Protection:
NEMA 1 painted sheet steel
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Motor Starter Type:
non reversing
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Poles Description:
3P
Warranty:
18 months
Control Circuit:
separate control circuit
Depth:
141 mm
Nema Size:
1
Range Of Product:
S
Country of Origin:
United States
Product Or Component Type:
motor starter
Line Rated Current:
27 A
Phase:
3 phase
Electrical Connection:
screw clamp terminals
Pvc Free:
Yes
Auxiliary Contact Composition:
without
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Control Type:
no control units
Eu Rohs Directive:
Not compliant
[Ue] Rated Operational Voltage:
600 V AC
Product Certifications:
UL Listed || CSA || NEMA
[Uc] Control Circuit Voltage:
24 V AC 60 Hz
Thermal Overload Type:
melting alloy 3
$590.00

Description

Type S NEMA motor starters are used for full voltage starting and stopping of AC squirrel cage motors. Type S motor starters have ratings up to 810 amperes. This 3 pole NEMA Size 1 non-reversing starter has a 27 ampere rating. This NEMA Size 1 motor starter has 3 phase ratings of 7.5 HP at 200 and 230 VAC and 10 HP at 460 and 575 VAC. This non-reversing NEMA motor starter has a melting alloy type overload relay that uses Type B thermal units to sense over current conditions. This NEMA starter has a 5 kA maximum SCCR (Short Circuit Current Rating) per UL508A when protected by an appropriate circuit breaker or fuse. Type S motor starters are available with replaceable coils in a wide variety of voltages. This starter has a 24 VAC 60 Hz operating coil wired for separate control. A painted sheet steel NEMA 1 general purpose enclosure is used to protect this starter. Enclosure is 10.00 inches tall, 6.00 inches wide and 5.56 inches deep. A wide variety of accessories are available for Type S starters. Type S non-reversing NEMA motor starters are UL listed and CSA certified.
