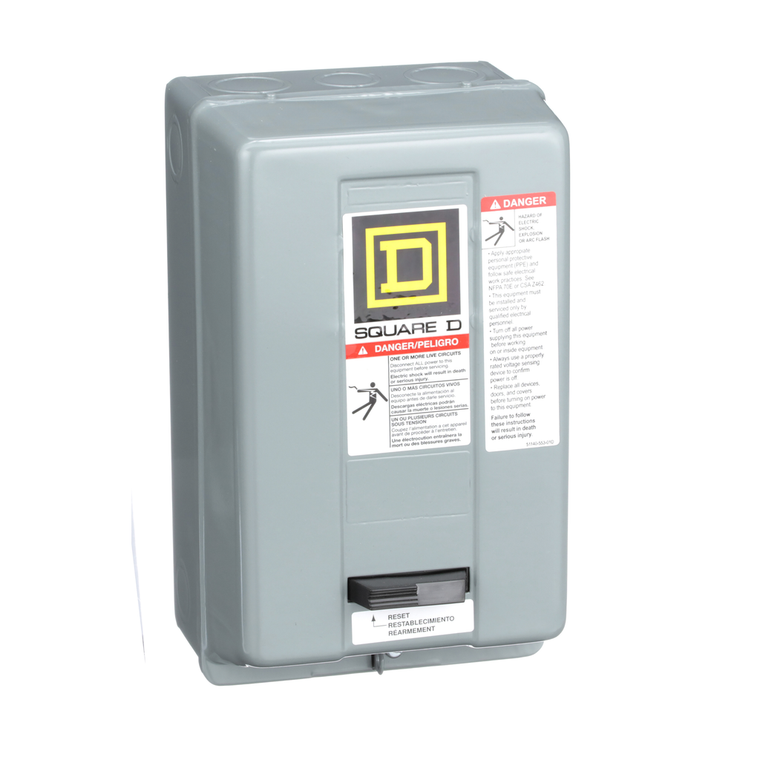

Schneider Electric 8536SCG3V08S NEMA Motor Starter, Type S, nonreversing, Size 1, 27A, 10 HP at 460 VAC, 5 kA SCCR, 3 phase, 3 pole, melting alloy, 208 VAC coil, NEMA 1

(No reviews yet) Write a Review
SKU:
8536SCG3V08S
MPN:
8536SCG3V08S
Condition:
New
Electrical Connection:
screw clamp terminals
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Depth:
141 mm
Product Certifications:
UL Listed || CSA || NEMA
Eu Rohs Directive:
Not compliant
[Uc] Control Circuit Voltage:
208 V AC 60 Hz
Local Signaling:
without pilot light
Warranty:
18 months
Thermal Overload Type:
melting alloy 3
Range Of Product:
S
Phase:
3 phase
Nema Degree Of Protection:
NEMA 1 painted sheet steel
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Product Or Component Type:
motor starter
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Control Type:
no control units
Poles Description:
3P
Country of Origin:
United States
Nema Size:
1
Motor Starter Type:
non reversing
Line Rated Current:
27 A
Control Circuit:
separate control circuit
Auxiliary Contact Composition:
without
Pvc Free:
Yes
[Ue] Rated Operational Voltage:
600 V AC
Rated Power In Hp:
7.5 HP 200 V AC || 7.5 HP 230 V AC || 10 HP 460 V AC || 10 HP 575 V AC
$590.00

Description

Type S NEMA motor starters are used for full voltage starting and stopping of AC squirrel cage motors. Type S motor starters have ratings up to 810 amperes. This 3 pole NEMA Size 1 non-reversing starter has a 27 ampere rating. This NEMA Size 1 motor starter has 3 phase ratings of 7.5 HP at 200 and 230 VAC and 10 HP at 460 and 575 VAC. This non-reversing NEMA motor starter has a melting alloy type overload relay that uses Type B thermal units to sense over current conditions. This NEMA starter has a 5 kA maximum SCCR (Short Circuit Current Rating) per UL508A when protected by an appropriate circuit breaker or fuse. Type S motor starters are available with replaceable coils in a wide variety of voltages. This starter has a 208 VAC 60 Hz operating coil wired for separate control. A painted sheet steel NEMA 1 general purpose enclosure is used to protect this starter. Enclosure is 10.00 inches tall, 6.00 inches wide and 5.56 inches deep. A wide variety of accessories are available for Type S starters. Type S non-reversing NEMA motor starters are UL listed and CSA certified.
