Schneider Electric

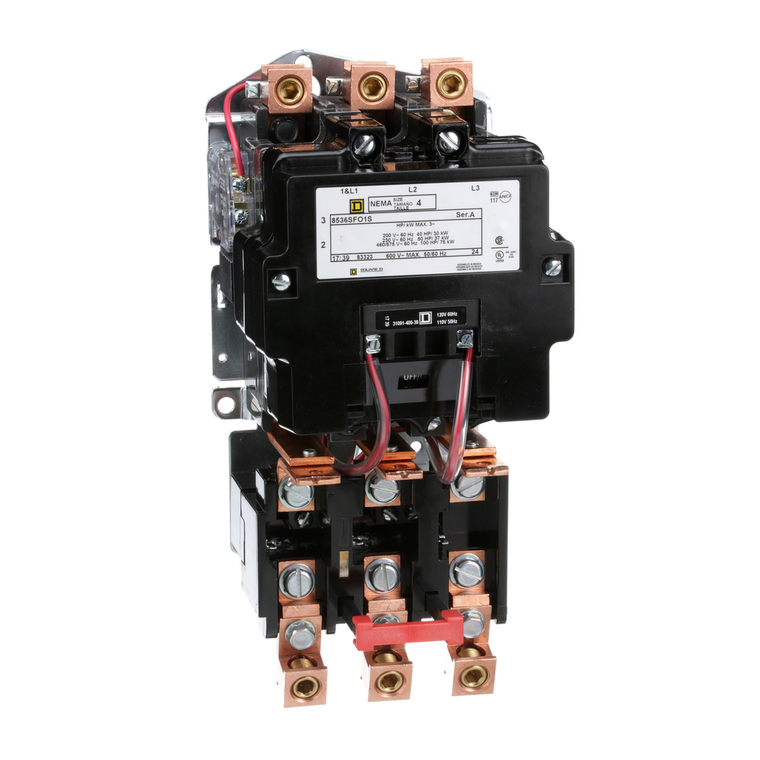

Schneider Electric 8536SFO1V02S NEMA motor starter, Type S, nonreversing, Size 4, 135A, 100HP at 460VAC, 10kA SSCR, 3 phase, 3 pole, melting alloy, 120VAC coil, open

(No reviews yet) Write a Review
SKU:
8536SFO1V02S
MPN:
8536SFO1V02S
Condition:
New
Country of Origin:
Mexico
Control Type:
no control units
[Uc] Control Circuit Voltage:
110 V AC 50 Hz || 120 V AC 60 Hz
Poles Description:
3P
Product Certifications:
UL Listed || CSA || NEMA
Electrical Connection:
screw clamp terminals
Motor Starter Type:
non reversing
Range Of Product:
S
Auxiliary Contact Composition:
without
Warranty:
18 months
Line Rated Current:
135 A
Thermal Overload Type:
melting alloy 3
Control Circuit:
separate control circuit
Product Or Component Type:
motor starter
Nema Size:
4
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Phase:
3 phase
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Nema Degree Of Protection:
not rated (open device)
Rated Power In Hp:
40 HP 200 V AC || 50 HP 230 V AC || 100 HP 460 V AC || 100 HP 575 V AC
Depth:
165 mm
Local Signaling:
without pilot light
[Ue] Rated Operational Voltage:
600 V AC
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Eu Rohs Directive:
Not compliant
$3,747.00

Description

Type S NEMA motor starters are used for full voltage starting and stopping of AC squirrel cage motors. Type S motor starters have ratings up to 810 amperes. This 3 pole NEMA Size 4 non-reversing starter has a 135 ampere rating. This NEMA Size 4 motor starter has 3 phase ratings of 40 HP at 200 VAC, 50 HP at 230 VAC and 100 HP at 460 and 575 VAC. This non-reversing NEMA motor starter has a melting alloy type overload relay that uses Type CC thermal units to sense over current conditions. This NEMA starter has a 10 kA maximum SCCR (Short Circuit Current Rating) per UL508A when protected by an appropriate circuit breaker or fuse. Type S motor starters are available with replaceable coils in a wide variety of voltages. This starter has a 110/120 VAC 50/60 Hz operating coil wired for separate control. This NEMA starter is an open device without an enclosure. This starter is 12.88 inches tall, 6.00 inches wide and 6.50 inches deep. A wide variety of accessories are available for Type S starters. Type S non-reversing NEMA motor starters are UL listed and CSA certified.
