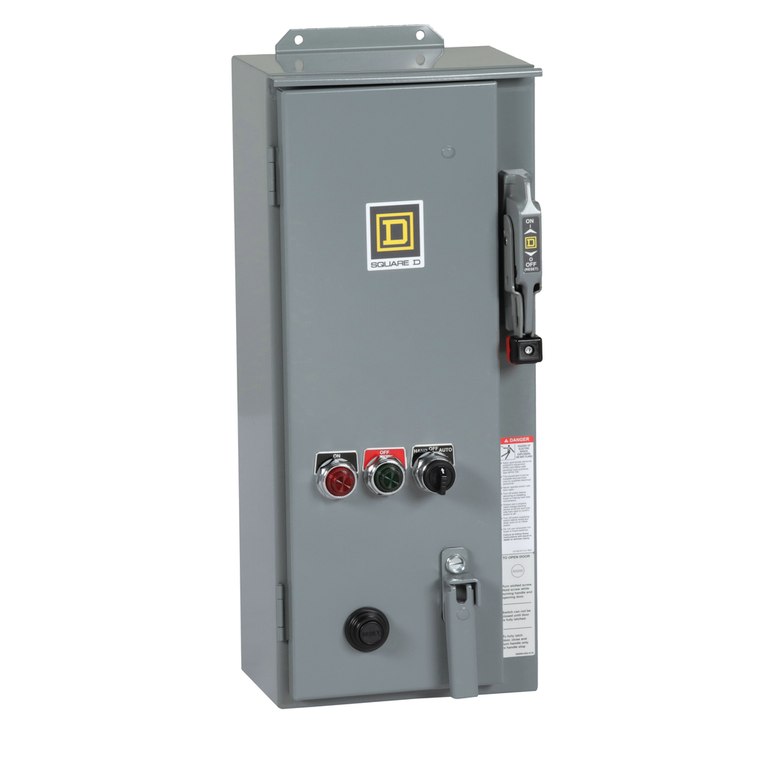

Schneider Electric 8538SCASP4 NEMA combination starter, Type S, 30A fusible disconnect, Size 1, 27A, Motor Logic SSOLR, 120VAC coil, NEMA 3R/12

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric 8538SCASP4 NEMA combination starter, Type S, 30A fusible disconnect, Size 1, 27A, Motor Logic SSOLR, 120VAC coil, NEMA 3R/12

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

8538SCASP4

UPC:

MPN:

8538SCASP4

Condition:

New

Product Or Component Type:

Combination Starter

[Uc] Control Circuit Voltage:

110 V AC 50 Hz || 120 V AC 60 Hz

Motor Starter Type:

non reversing

Line Rated Current:

27 A

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Depth:

9.5 in

Warranty:

18 months

Nema Degree Of Protection:

NEMA 12 painted sheet steel with external reset

Maximum Horse Power Rating:

5-5 hp 200 V AC, 3 phase || 5-5 hp 230 V AC, 3 phase

Local Signaling:

red indicator on LED || green indicator off LED

Control Type:

selector switch HAND-OFF-AUTO)

Nema Size:

1

Poles Description:

3P

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

[Ue] Rated Operational Voltage:

600 V AC

Eu Rohs Directive:

Not compliant

Control Circuit:

separate control circuit

Range Of Product:

S

Disconnector Device Type:

fusible disconnect switch H and K, 30 A, electrical SPDT

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Auxiliary Contact Composition:

2 NO + 2 NC

Thermal Overload Type:

solid state Motor Logic class 10/20 3-9 A

Country of Origin:

Mexico

Product Certifications:

CSA || UL Listed
