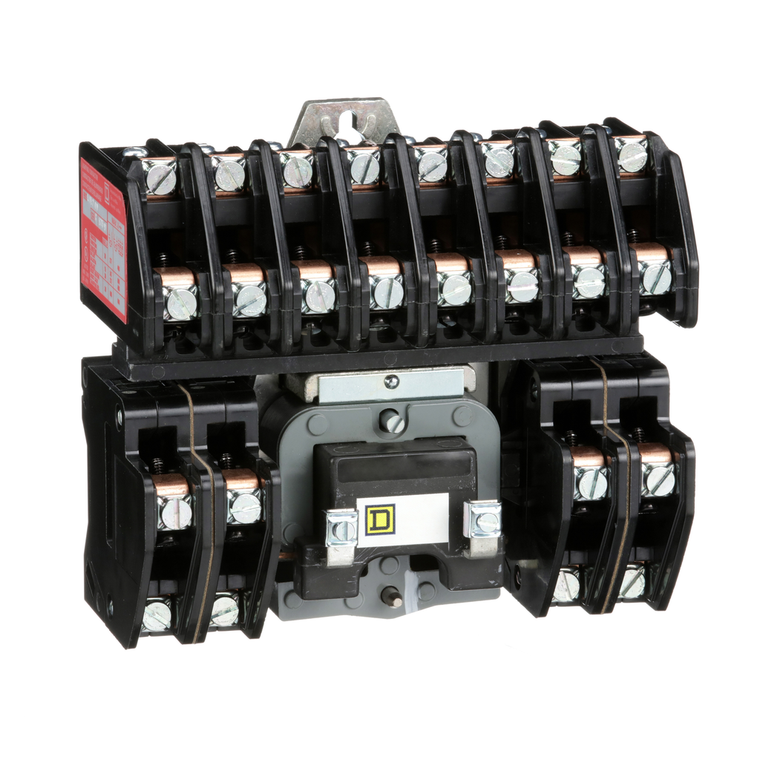

Schneider Electric 8903LO0012V02 Contactor, Type L, multipole lighting, electrically held, 30A, 12 pole, 600V, 110/120VAC 50/60Hz coil, open style
Schneider Electric
$1,430.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric 8903LO0012V02 Contactor, Type L, multipole lighting, electrically held, 30A, 12 pole, 600V, 110/120VAC 50/60Hz coil, open style
Type L multipole lighting contactors are use to manage lighting loads and to control electrical heating. 8903L lighting contactors are available in either mechanically held or electrically held versions. This is an electrically held device. Contacts can switch up to 30A fluorescent and 20A tungsten lighting loads. The contacts are field convertible from normally open to normally closed. This 12 pole device has 12 normally closed contacts. Replacement contact kits are available for this lighting contactor. Interchangeable coil is available in a wide variety of common voltages up to 600 VAC. Contactor is supplied with a 110/120 VAC 50/60 Hz coil. This lighting contactor is an open device without an enclosure. contactor is 5.00 inches tall, 5.63 inches wide and 3.12 inches deep. A wide variety of accessories are available for Type L lighting contactors. 8903L lighting contactors are UL Listed and CSA Certified.
- Inrush Power In Va:
- 180-180 VA 60 Hz || 170-170 VA 50 Hz
- Range Of Product:
- 8903L
- Product Or Component Type:
- Electrically Held Lighting Contactor
- China Rohs Regulation:
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Depth:
- 79 mm
- Halogen Content Performance:
- Halogen free plastic parts product
- Toxic Heavy Metal Free:
- Yes
- Line Rated Current:
- 20-20 A tungsten || 30-30 A fluorescent
- Sustainable Offer Status:
- Green Premium product
- Control Circuit:
- separate control circuit
- Warranty:
- 18 months
- Country of Origin:
- Mexico
- Reach Free Of Svhc:
- Yes
- Poles Description:
- 12P 12 NC
- Nema Degree Of Protection:
- not rated (open device)
- Environmental Disclosure:
- ENVPEP1407018EN
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Local Signaling:
- no indicator
- Electrical Connection:
- screw-clamp terminals
- Mercury Free:
- Yes
- [Uc] Control Circuit Voltage:
- 110 V AC 50 Hz || 120 V AC 60 Hz
- Circularity Profile:
- N/A
- Rohs Exemption Information:
- Yes
- Control Type:
- no control units
- Pvc Free:
- Yes
- Eu Rohs Directive:
- Compliant
- Product Certifications:
- UL Listed || CSA
- Hold-In Power Consumption In Va:
- 35-35 VA 60 Hz || 35-35 VA 50 Hz
