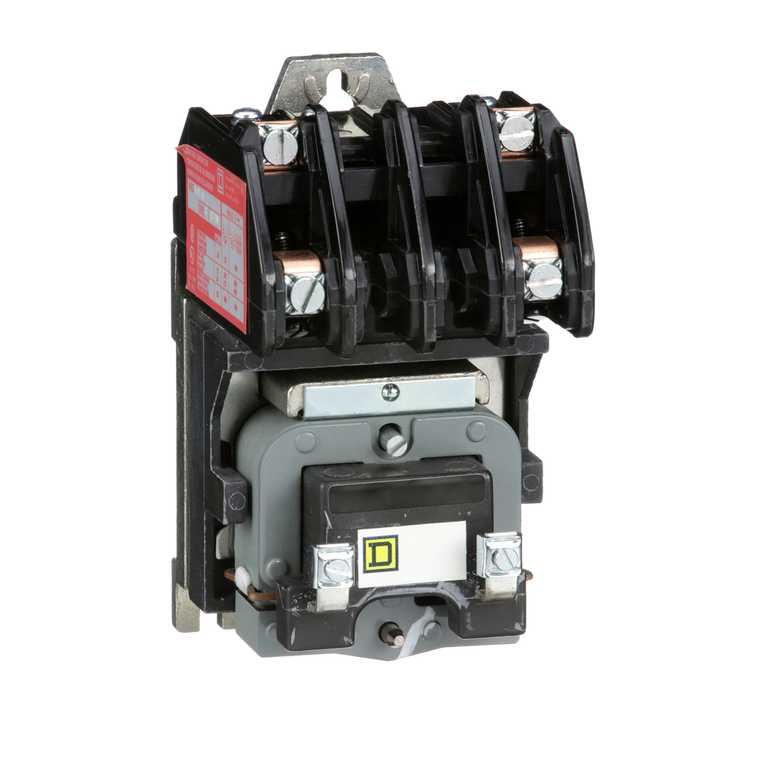

Schneider Electric 8903LO20V03 Contactor, Type L, multipole lighting, electrically held, 30A, 2 pole, 600V, 220/240VAC 50/60Hz coil, open style
Schneider Electric
$404.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric 8903LO20V03 Contactor, Type L, multipole lighting, electrically held, 30A, 2 pole, 600V, 220/240VAC 50/60Hz coil, open style
8903L multipole lighting contactors are for lighting control applications. 8903L lighting contactors are available in either mechanically held or electrically held versions. This is an electrically held device. Can switch up to 30 A fluorescent and 20 A tungsten lighting loads. The contacts are field convertible from NO to NC. This device 2 pole device has 2 NO contacts. Supplied with a 220/240 VAC 50/60 Hz interchangeable operating coil but other coils are available in a wide variety of common voltages up to 600VAC. Contactor is an open device. A variety of enclosure types are available. Coil and contacts are easily replaced. Lighting contactor is 5.00 inches tall, 2.88 inches wide and 3.12 inches deep. 8903L lighting contactors are UL Listed and CSA Certified.
- Toxic Heavy Metal Free:
- Yes
- Control Type:
- no control units
- Poles Description:
- 2P 2 NO
- China Rohs Regulation:
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Line Rated Current:
- 20-20 A tungsten || 30-30 A fluorescent
- Local Signaling:
- no indicator
- Environmental Disclosure:
- ENVPEP1407018EN
- Eu Rohs Directive:
- Compliant
- Country of Origin:
- Mexico
- Reach Free Of Svhc:
- Yes
- Inrush Power In Va:
- 150-150 VA 60 Hz || 140-140 VA 50 Hz
- Product Or Component Type:
- Electrically Held Lighting Contactor
- Product Certifications:
- UL Listed || CSA
- Electrical Connection:
- screw-clamp terminals
- Depth:
- 79 mm
- Hold-In Power Consumption In Va:
- 30-30 VA 60 Hz || 30-30 VA 50 Hz
- Control Circuit:
- separate control circuit
- Mercury Free:
- Yes
- Warranty:
- 18 months
- Sustainable Offer Status:
- Green Premium product
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information:
- Yes
- Halogen Content Performance:
- Halogen free plastic parts product
- Pvc Free:
- Yes
- Range Of Product:
- 8903L
- [Uc] Control Circuit Voltage:
- 220 V AC 50 Hz || 240 V AC 60 Hz
- Circularity Profile:
- N/A
- Nema Degree Of Protection:
- not rated (open device)
