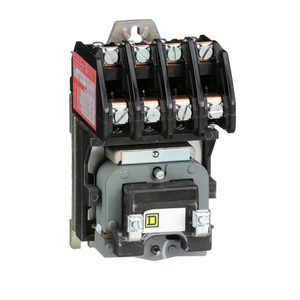

Schneider Electric 8903LO40V02 Contactor, Type L, multipole lighting, electrically held, 30A, 4 pole, 600V, 110/120VAC 50/60Hz coil, open style
Schneider Electric
$575.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric 8903LO40V02 Contactor, Type L, multipole lighting, electrically held, 30A, 4 pole, 600V, 110/120VAC 50/60Hz coil, open style
8903L multipole lighting contactors are for lighting control applications. 8903L lighting contactors are available in either mechanically held or electrically held versions. This is an electrically held device. Can switch up to 30 A fluorescent and 20 A tungsten lighting loads. The contacts are field convertible from NO to NC. This device 4 pole device has 4 NO contacts. Supplied with a 110/120 VAC 50/60 Hz interchangeable operating coil but other coils are available in a wide variety of common voltages up to 600VAC. Contactor is an open device. A variety of enclosure types are available. Coil and contacts are easily replaced. Lighting contactor is 5.00 inches tall, 2.88 inches wide and 3.12 inches deep. 8903L lighting contactors are UL Listed and CSA Certified.
- [Uc] Control Circuit Voltage:
- 110 V AC 50 Hz || 120 V AC 60 Hz
- Depth:
- 79 mm
- Nema Degree Of Protection:
- not rated (open device)
- Range Of Product:
- 8903L
- Eu Rohs Directive:
- Compliant
- Control Type:
- no control units
- China Rohs Regulation:
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Pvc Free:
- Yes
- Hold-In Power Consumption In Va:
- 30-30 VA 60 Hz || 30-30 VA 50 Hz
- Line Rated Current:
- 20-20 A tungsten || 30-30 A fluorescent
- Local Signaling:
- no indicator
- Warranty:
- 18 months
- Electrical Connection:
- screw-clamp terminals
- Product Or Component Type:
- Electrically Held Lighting Contactor
- Poles Description:
- 4P 4 NO
- Product Certifications:
- UL Listed || CSA
- Environmental Disclosure:
- ENVPEP1407018EN
- Reach Free Of Svhc:
- Yes
- Halogen Content Performance:
- Halogen free plastic parts product
- Sustainable Offer Status:
- Green Premium product
- Circularity Profile:
- N/A
- Mercury Free:
- Yes
- Country of Origin:
- Mexico
- Toxic Heavy Metal Free:
- Yes
- Rohs Exemption Information:
- Yes
- Control Circuit:
- separate control circuit
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Inrush Power In Va:
- 150-150 VA 60 Hz || 140-140 VA 50 Hz
