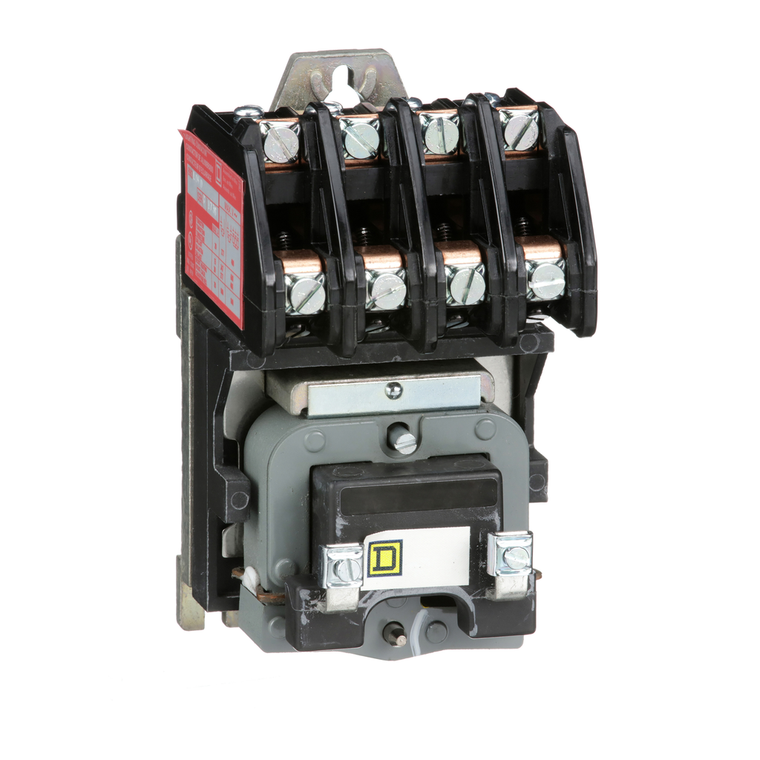

Schneider Electric 8903LO40V04 Contactor, Type L, multipole lighting, electrically held, 30A, 4 pole, 600V, 277VAC 60Hz coil, open style
Schneider Electric
$575.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric 8903LO40V04 Contactor, Type L, multipole lighting, electrically held, 30A, 4 pole, 600V, 277VAC 60Hz coil, open style
8903L multipole lighting contactors are for lighting control applications. 8903L lighting contactors are available in either mechanically held or electrically held versions. This is an electrically held device. Can switch up to 30 A fluorescent and 20 A tungsten lighting loads. The contacts are field convertible from NO to NC. This device 4 pole device has 4 NO contacts. Supplied with a 277 VAC 60 Hz interchangeable operating coil but other coils are available in a wide variety of common voltages up to 600VAC. Contactor is an open device. A variety of enclosure types are available. Coil and contacts are easily replaced. Lighting contactor is 5.00 inches tall, 2.88 inches wide and 3.12 inches deep. 8903L lighting contactors are UL Listed and CSA Certified.
- Rohs Exemption Information:
- Yes
- Circularity Profile:
- N/A
- Local Signaling:
- no indicator
- Country of Origin:
- Mexico
- Eu Rohs Directive:
- Compliant
- Pvc Free:
- Yes
- Line Rated Current:
- 20-20 A tungsten || 30-30 A fluorescent
- Product Or Component Type:
- Electrically Held Lighting Contactor
- China Rohs Regulation:
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Control Type:
- no control units
- Poles Description:
- 4P 4 NO
- Electrical Connection:
- screw-clamp terminals
- Toxic Heavy Metal Free:
- Yes
- Hold-In Power Consumption In Va:
- 30-30 VA 60 Hz
- Depth:
- 79 mm
- Halogen Content Performance:
- Halogen free plastic parts product
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Product Certifications:
- UL Listed || CSA
- Mercury Free:
- Yes
- Sustainable Offer Status:
- Green Premium product
- Nema Degree Of Protection:
- not rated (open device)
- Environmental Disclosure:
- ENVPEP1407018EN
- [Uc] Control Circuit Voltage:
- 277 V AC 60 Hz
- Control Circuit:
- separate control circuit
- Reach Free Of Svhc:
- Yes
- Range Of Product:
- 8903L
- Warranty:
- 18 months
- Inrush Power In Va:
- 150-150 VA 60 Hz
