Schneider Electric

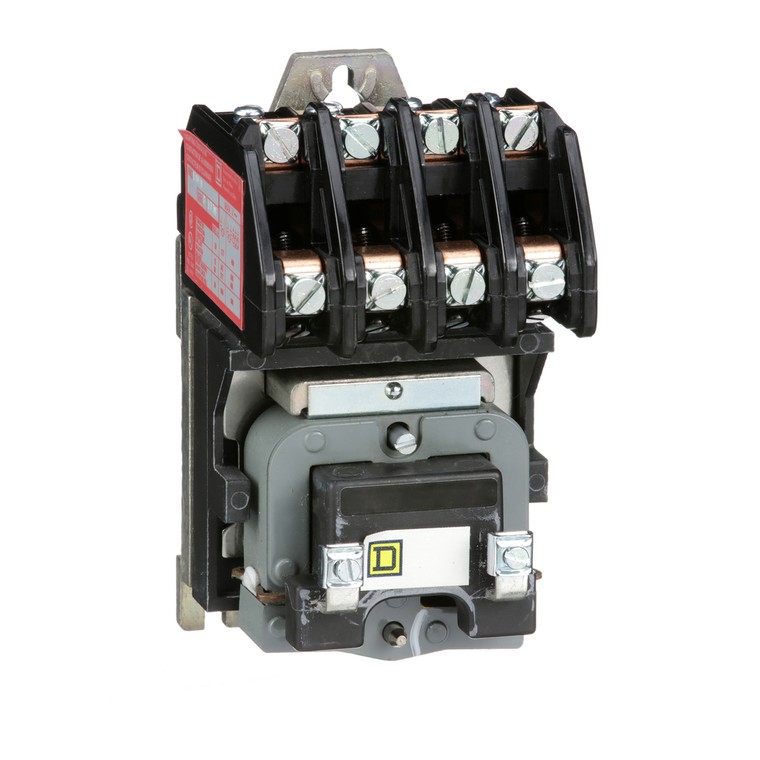

Schneider Electric 8903LO40V08 Contactor, Type L, multipole lighting, electrically held, 30A, 4 pole, 600 V, 208 VAC 60 Hz coil, open style

SKU:

8903LO40V08

UPC:

MPN:

8903LO40V08

Condition:

New

Poles Description:

4P 4 NO

Toxic Heavy Metal Free:

Yes

Mercury Free:

Yes

Product Certifications:

UL Listed || CSA

Rohs Exemption Information:

Yes

Product Or Component Type:

Electrically Held Lighting Contactor

Depth:

79 mm

[Uc] Control Circuit Voltage:

208 V AC 60 Hz

Electrical Connection:

screw-clamp terminals

Country of Origin:

Mexico

Nema Degree Of Protection:

not rated (open device)

China Rohs Regulation:

Pro-active China RoHS declaration (out of China RoHS legal scope)

Control Circuit:

separate control circuit

Pvc Free:

Yes

Range Of Product:

8903L

Local Signaling:

no indicator

Warranty:

18 months

Hold-In Power Consumption In Va:

30-30 VA 60 Hz

Halogen Content Performance:

Halogen free plastic parts product

Line Rated Current:

20-20 A tungsten || 30-30 A fluorescent

Eu Rohs Directive:

Compliant

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Inrush Power In Va:

150-150 VA 60 Hz

Circularity Profile:

N/A

Environmental Disclosure:

ENVPEP1407018EN

Reach Free Of Svhc:

Yes

Sustainable Offer Status:

Green Premium product

Control Type:

no control units
