Schneider Electric

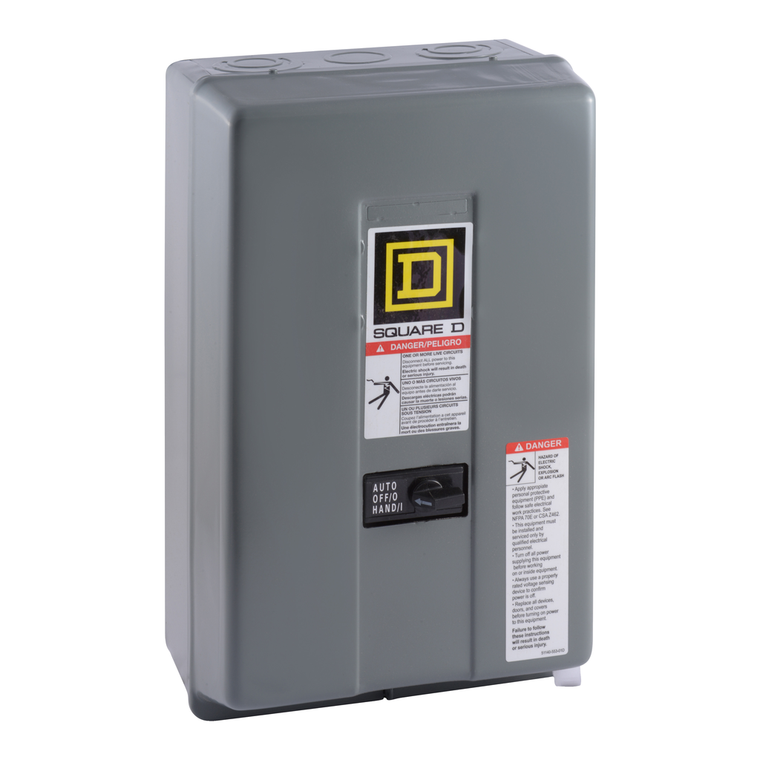

Schneider Electric 8903LXG30V02CR6 LIGHTING CONTACTOR 600VAC 30A LX

SKU:

8903LXG30V02CR6

UPC:

MPN:

8903LXG30V02CR6

Condition:

New

Product Or Component Type:

Mechanically Held Lighting Contactor

[Uc] Control Circuit Voltage:

110 V AC 50 Hz || 120 V AC 60 Hz

Depth:

153 mm

Rohs Exemption Information:

Yes

Warranty:

18 months

Eu Rohs Directive:

Compliant

Environmental Disclosure:

ENVPEP1407018EN

Local Signaling:

no indicator

California Proposition 65:

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Range Of Product:

8903LX

Product Certifications:

UL Listed || CSA

Poles Description:

3P 3 NO

Inrush Power In Va:

140-140 VA 60 Hz || 150-150 VA 50 Hz || 25-25 VA 50/60 Hz

Reach Free Of Svhc:

Yes

Additional Included Device:

2P relay (1 NO + 1 NC)

Circularity Profile:

N/A

Line Rated Current:

20-20 A tungsten || 30-30 A fluorescent

Sustainable Offer Status:

Green Premium product

Nema Degree Of Protection:

NEMA 1 painted sheet steel surface

Pvc Free:

Yes

Toxic Heavy Metal Free:

Yes

Control Type:

selector switch HAND-OFF-AUTO)

Electrical Connection:

screw-clamp terminals

Country of Origin:

United States

Halogen Content Performance:

Halogen free plastic parts product

Mercury Free:

Yes

Control Circuit:

separate control circuit

China Rohs Regulation:

Pro-active China RoHS declaration (out of China RoHS legal scope)

Reach Regulation:

Free of Substances of Very High Concern above the threshold
