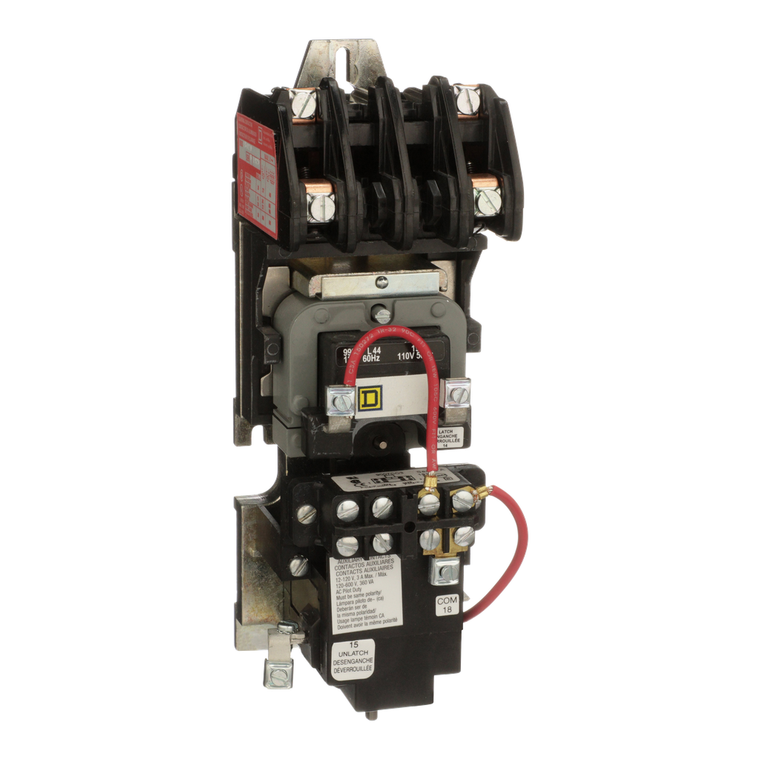

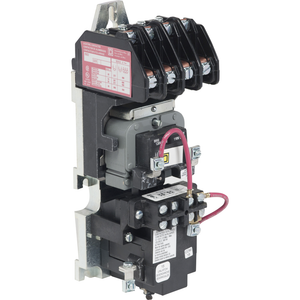

Schneider Electric 8903LXO20V06 Contactor, Type L, multipole lighting, mechanically held, 30A, 2 pole, 600 V, 440/480 VAC 50/60 Hz coil, open style
Schneider Electric
$590.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric 8903LXO20V06 Contactor, Type L, multipole lighting, mechanically held, 30A, 2 pole, 600 V, 440/480 VAC 50/60 Hz coil, open style
Contactor, Type L, multipole lighting, mechanically held, 30A, 2 pole, 600 V, 440/480 VAC 50/60 Hz coil, open style
- Sustainable Offer Status:
- Green Premium product
- Control Circuit:
- separate control circuit
- Additional Included Device:
- none
- Line Rated Current:
- 20-20 A tungsten || 30-30 A fluorescent
- Eu Rohs Directive:
- Compliant
- Nema Degree Of Protection:
- not rated (open device)
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Circularity Profile:
- N/A
- Poles Description:
- 2P 2 NO
- California Proposition 65:
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Environmental Disclosure:
- ENVPEP1407018EN
- Electrical Connection:
- screw-clamp terminals
- Range Of Product:
- 8903LX
- Product Or Component Type:
- Mechanically Held Lighting Contactor
- China Rohs Regulation:
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Mercury Free:
- Yes
- Inrush Power In Va:
- 140-140 VA 60 Hz || 150-150 VA 50 Hz || 25-25 VA 50/60 Hz
- Control Type:
- no control units
- Rohs Exemption Information:
- Yes
- Reach Free Of Svhc:
- Yes
- Depth:
- 83 mm
- Product Certifications:
- UL Listed || CSA
- Warranty:
- 18 months
- [Uc] Control Circuit Voltage:
- 440 V AC 50 Hz || 480 V AC 60 Hz
- Pvc Free:
- Yes
- Toxic Heavy Metal Free:
- Yes
- Halogen Content Performance:
- Halogen free plastic parts product
- Country of Origin:
- Mexico
- Local Signaling:
- no indicator
