Schneider Electric

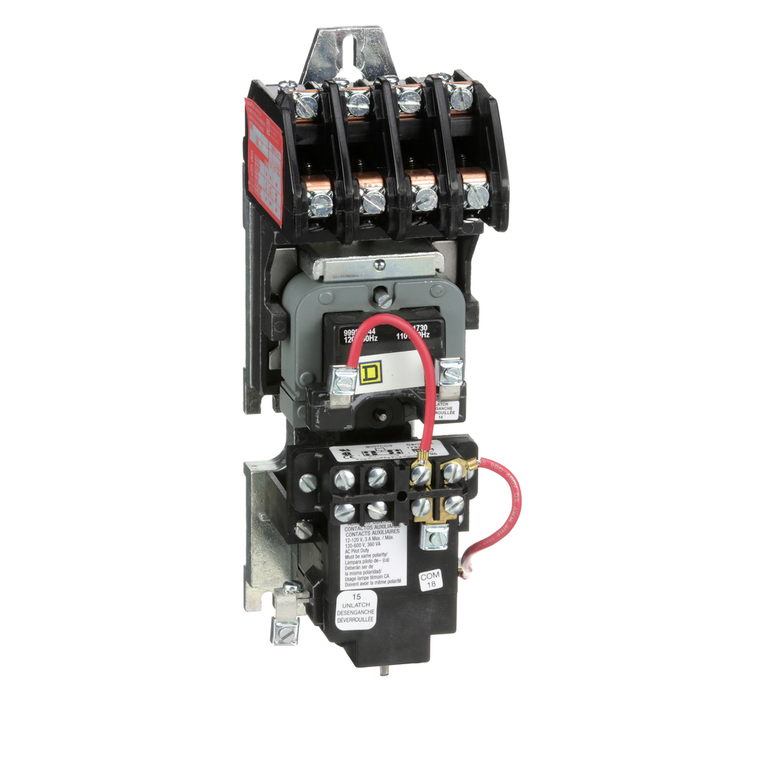

Schneider Electric 8903LXO40V02 Contactor, Type L, multipole lighting, mechanically held, 30A, 4 pole, 600V, 110/120VAC 50/60Hz coil, open style

(No reviews yet) Write a Review
SKU:
8903LXO40V02
MPN:
8903LXO40V02
Condition:
New
Nema Degree Of Protection:
not rated (open device)
Poles Description:
4P 4 NO
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Country of Origin:
Mexico
China Rohs Regulation:
Pro-active China RoHS declaration (out of China RoHS legal scope)
Control Type:
no control units
Local Signaling:
no indicator
Toxic Heavy Metal Free:
Yes
Mercury Free:
Yes
Circularity Profile:
N/A
Control Circuit:
separate control circuit
Electrical Connection:
screw-clamp terminals
Product Or Component Type:
Mechanically Held Lighting Contactor
Range Of Product:
8903LX
Halogen Content Performance:
Halogen free plastic parts product
Inrush Power In Va:
25-25 VA 60 Hz || 150-150 VA 50 Hz || 140-140 VA 50/60 Hz
Eu Rohs Directive:
Compliant
[Uc] Control Circuit Voltage:
110 V AC 50 Hz || 120 V AC 60 Hz
California Proposition 65:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Reach Free Of Svhc:
Yes
Rohs Exemption Information:
Yes
Line Rated Current:
20-20 A tungsten || 30-30 A fluorescent
Warranty:
18 months
Product Certifications:
UL Listed || CSA
Additional Included Device:
none
Sustainable Offer Status:
Green Premium product
Environmental Disclosure:
ENVPEP1407018EN
Pvc Free:
Yes
Depth:
83 mm
$647.00

Description

8903L multipole lighting contactors are for lighting control applications. 8903L lighting contactors are available in either mechanically held or electrically held versions. This is a mechanically held device. Can switch up to 30 A fluorescent and 20 A tungsten lighting loads. The contacts are field convertible from NO to NC. This device 4 pole device has 4 NO contacts. Supplied with two operating coils. One is for latching the contactor and the other is to unlatch the contactor. Both coils are 110/120 VAC 50/60 Hz rated. Other coils are available in a wide variety of common voltages up to 600VAC. Contactor is an open device. A variety of enclosure types are available. Coils and contacts are easily replaced. Lighting contactor is 8.81 inches tall, 2.88 inches wide and 3.25 inches deep. 8903L lighting contactors are UL Listed and CSA Certified.
