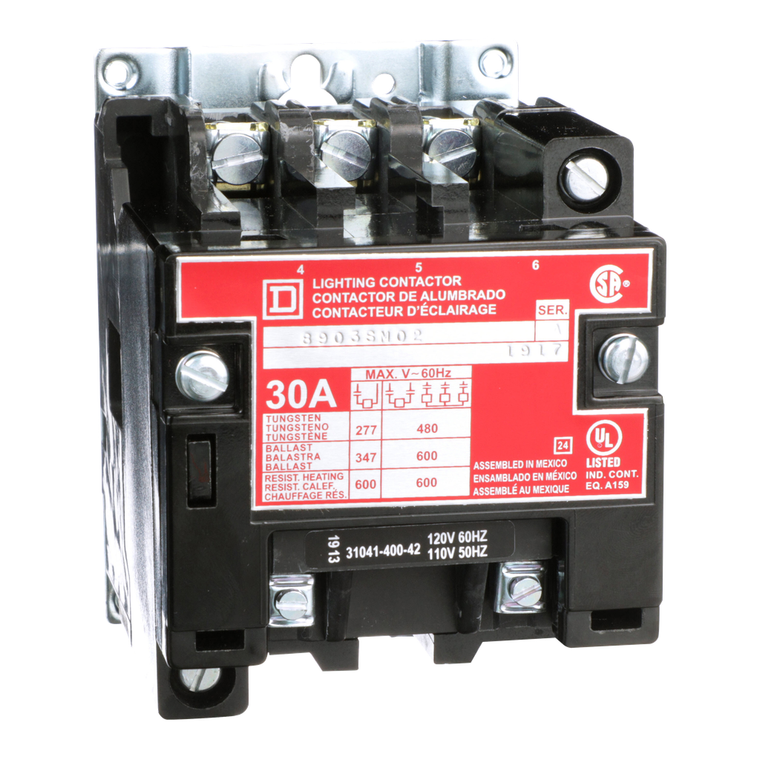

Schneider Electric 8903SMO2V02 Contactor, Type S, multipole lighting, electrically held, 30A, 3 pole, 110/120VAC 50/60Hz coil, open style

Schneider Electric 8903SMO2V02 Contactor, Type S, multipole lighting, electrically held, 30A, 3 pole, 110/120VAC 50/60Hz coil, open style

Schneider Electric
SKU:
8903SMO2V02
$489.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
8903S lighting contactors are for lighting control applications. 8903S lighting contactors are available in either mechanically held or electrically held versions. This is an electrically held device. This contactor is designed to switch 30 amperes. This device 3 pole device has 3 NO contacts. Supplied with a 110/120 VAC 50/60 Hz interchangeable operating coil but other coils are available in a wide variety of common voltages up to 600VAC. Contactor is an open device. A variety of enclosure types are available. Coil and contacts are easily replaced. Lighting contactor is 3.50 inches tall, 3.22 inches wide and 4.22 inches deep. 8903L lighting contactors are UL Listed and CSA Certified.
Additional Information
Country of Origin:
Mexico
Nema Degree Of Protection:
not rated (open device) surface none
Auxiliary Contact Composition:
without
Poles Description:
3P
[Uc] Control Circuit Voltage:
120 V AC 60 Hz || 110 V AC 50 Hz
Depth:
107 mm
Control Type:
no control units
Line Rated Current:
30 A
Local Signaling:
without pilot light
Product Certifications:
UL Listed || CSA
Electrical Connection:
lugs
Additional Included Device:
none
Eu Rohs Directive:
Not compliant
Product Or Component Type:
Electrically Held Lighting Contactor
Warranty:
18 months
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Range Of Product:
S
