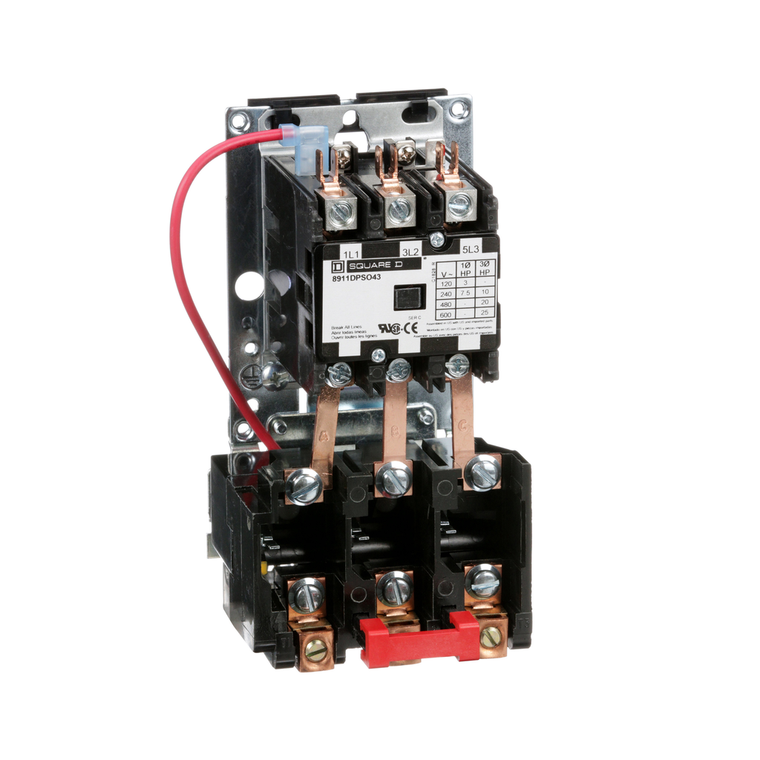

Schneider Electric 8911DPSO43V06 NEMA starter, Definite Purpose, 40A, 25HP at 600VAC, 3 phase, 3 pole, melting alloy, 480VAC coil, open
Schneider Electric
$431.55
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric 8911DPSO43V06 NEMA starter, Definite Purpose, 40A, 25HP at 600VAC, 3 phase, 3 pole, melting alloy, 480VAC coil, open
NEMA starter, Definite Purpose, 40A, 25HP at 600VAC, 3 phase, 3 pole, melting alloy, 480VAC coil, open
- Range Of Product:
- DPS
- Mercury Free:
- Yes
- Maximum Horse Power Rating:
- 3-3 hp 115 V AC, 1 phase || 10-10 hp 230 V AC, 3 phase || 7.5-7.5 hp 230 V AC, 1 phase || 20-20 hp 460 V AC, 3 phase || 25-25 hp 575 V AC, 3 phase
- Product Or Component Type:
- Definite Purpose Starter
- Eu Rohs Directive:
- Compliant with Exemptions
- Line Rated Current:
- 40 A
- Country of Origin:
- China
- Warranty:
- 18 months
- Thermal Overload Type:
- melting alloy
- Nema Degree Of Protection:
- not rated (open device)
- Rohs Exemption Information:
- Yes
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Number Of Thermal Units Required:
- 3
- Poles Description:
- 3P
- [Uc] Control Circuit Voltage:
- 440 V AC 50 Hz || 480 V AC 60 Hz
- [Ue] Rated Operational Voltage:
- 600 V AC
- Locked Rotor Rated Current:
- 240 A 230 V AC || 200 A 460 V AC || 160 A 575 V AC
- Phase:
- 3 phase
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
