Schneider Electric

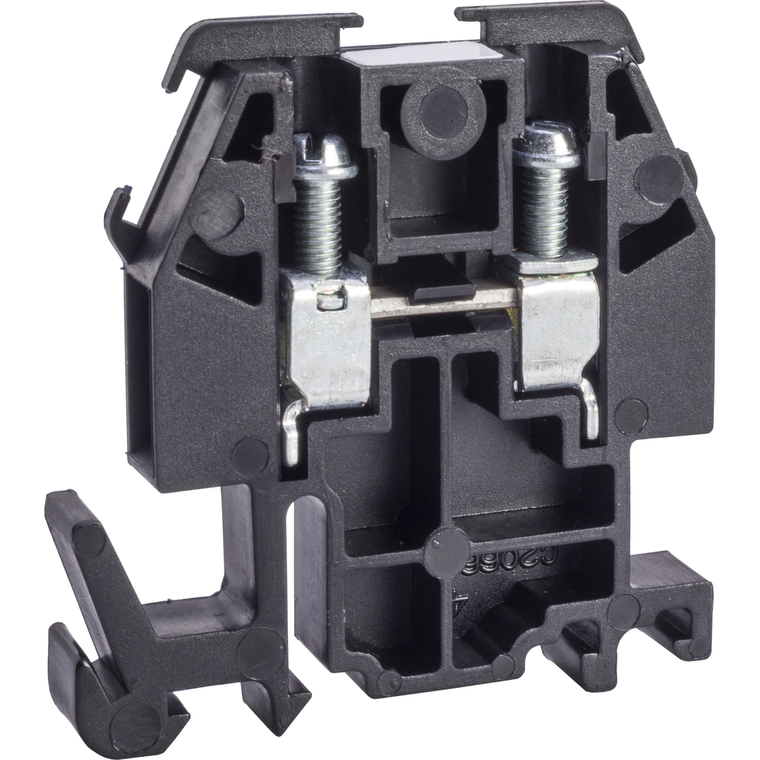

Schneider Electric 9080GMB6 Terminal Block 600V 30Amp Nema +Options Pack of 50

(No reviews yet) Write a Review
SKU:
9080GMB6
UPC:
785901743279
Condition:
New
Product Or Component Type:
terminal block
China Rohs Regulation:
Pro-active China RoHS declaration (out of China RoHS legal scope)
Number Of Terminal Blocks:
51 per foot
Mercury Free:
Yes
Localisation On Device:
standard
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Warranty:
18 months
Reach Free Of Svhc:
Yes
Awg Gauge:
AWG 22...AWG 10 copper
Range Of Product:
9080G
Height:
1.82 in
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Product Compatibility:
GM6B
Product Certifications:
CSA file 62144 class 6228 01 || UL recognized E60616 CCN XCFR2 || CE
Pvc Free:
Yes
Ambient Air Temperature For Operation:
-40-257 °F
Toxic Heavy Metal Free:
Yes
Mounting Support:
35 mm DIN rail || 9080GH track
[Ue] Rated Operational Voltage:
600 V AC/DC
Eu Rohs Directive:
Compliant
Connections - Terminals:
lug zinc plated steel 7-8 lbf.in : AWG 22...AWG 10 copper)
Electrical Connection:
zinc plated steel box lugs
Rohs Exemption Information:
Yes
Line Rated Current:
30-30 A UL || 30-30 A CSA
Protection Type:
fingersafe DIN 57470
Quantity Per Set:
set of 50
Depth:
0.235 in
Color:
Black
Width:
1.72 in
Catalog:
View
Datasheet:
View
$90.00

Description

Linergy NEMA sectional terminal blocks are for terminating wires in a control panel and are designed to NEMA standards. This terminal block has a box lug connector for use with solid or stranded copper wires from #22 through #10 AWG. Each box lug terminal is approved for use with various wire combinations. Each lug accepts 1 # 10 AWG, 1 #12 AWG, 1 #14 AWG, 1 or 2 #16 AWG, 1 or 2 #18 AWG, 1 to 5 #20 AWG or 1 to 8 #22 AWG wires. The nylon block is molded in black. This block is UL component recognized and CSA certified for up to 30 ampere up to 600 VAC or VDC.
