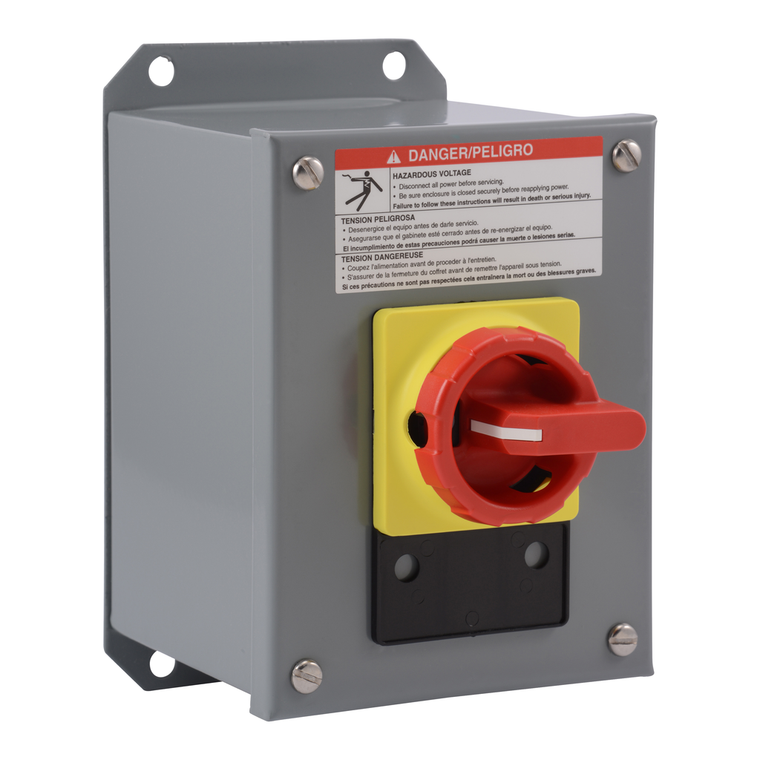

Schneider Electric 9421V1A30 Manual Motor Switch, TeSys Vario, rotary handle, 20A, 3 pole, 10HP at 480V, metallic enclosure, UL Type 12

Schneider Electric 9421V1A30 Manual Motor Switch, TeSys Vario, rotary handle, 20A, 3 pole, 10HP at 480V, metallic enclosure, UL Type 12

Schneider Electric
SKU:
9421V1A30
$145.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
Vario manual motor control switches meet UL508 requirements as both enclosed and open manual motor controllers. They are also marked “Suitable as Motor Disconnect” allowing installation on the load side of the motor branch circuit short circuit and ground fault protection. These manual motor control switches include switches mounted in enclosure with a handle. The switch has a 20A current rating and a 5 HP at 240 V, 10 HP at 480V and a 10 HP at 600V ratings per UL508. The switch has a 32A current rating and a 5.5 kW at 230V and 240 V, 11 kW at 400V 415V and 500V and a 15 kW at 690V ratings per IEC. A KCD1YZ low profile handle is used for this device. This 60 mm by 60 mm single hole handle assembly has a red handle and yellow bezel. This switch is mounted in a metallic NEMA Type 12 enclosure. This manual motor control switch is 7.38 inches tall, 5.50 inches wide and 6.25 inches deep. This switch has no auxiliary contacts. This manual motor control switch is UL Listed and CSA certified.
Additional Information
Eu Rohs Directive:
Under investigation
Lock Type:
padlockable
Country of Origin:
Mexico
Enclosure Material:
metallic metal
Warranty:
18 months
Color:
red/yellow
Depth:
6.25 in
Range Of Product:
VARIO
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Line Rated Current:
20 A
Enclosure Type:
dust and damp proof enclosure indoor
Nema Degree Of Protection:
NEMA 12
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Device Mounting:
surface
Product Certifications:
UL listed file E164864 CCN NLRV || CSA LR81630 class 3211 05
Auxiliary Contact Composition:
without
Maximum Horse Power Rating:
5-5 hp 240 V AC || 10-10 hp 480/600 V AC
Permissible Voltage:
600 V AC
Circularity Profile:
N/A
