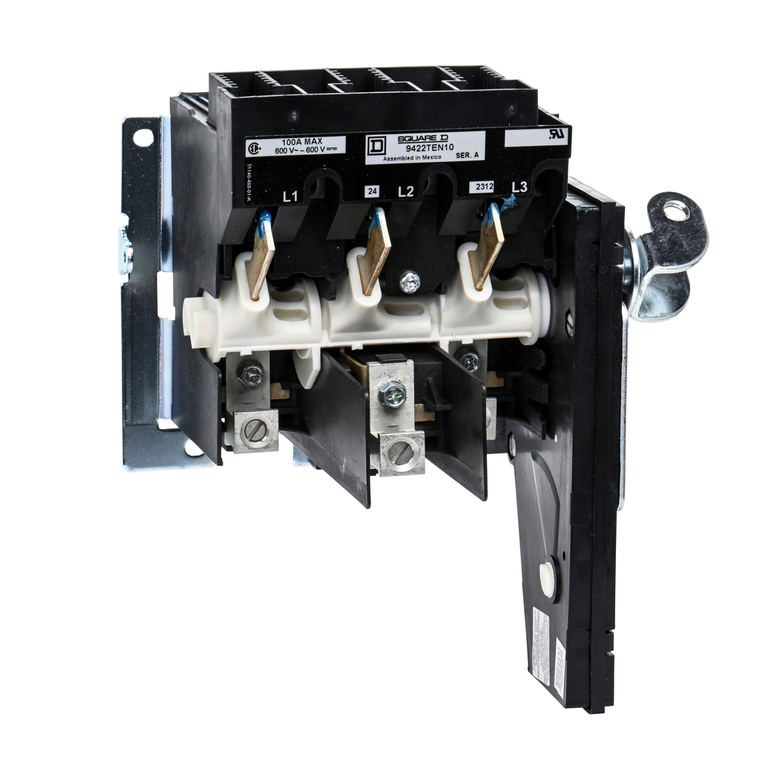

Schneider Electric 9422ATEN101 Operating mechanism, flange mounted, variable depth, 100A, 600V, no fuse, switch mechanism, 6 inch handle, NEMA 4

(No reviews yet) Write a Review
SKU:
9422ATEN101
MPN:
9422ATEN101
Condition:
New
Product Mounting:
flange rod variable depth
Range Of Product:
9422T
Mercury Free:
Yes
Product Certifications:
UL Recognized || CSA
Rohs Exemption Information:
Yes
Warranty:
18 months
Pvc Free:
Yes
Maximum Horse Power Rating:
25 hp 200 V AC || 30 hp 230 V AC || 60 hp 460 V AC || 75 hp 575 V AC || 20 hp 250 V DC
Provided Equipment:
6 in handle included NEMA 1/3/3R/4 enclosures sheet steel
Line Rated Current:
100 A
Eu Rohs Directive:
Compliant with Exemptions
Disconnector Device Type:
non-fusible disconnect switch
Country of Origin:
Mexico
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Product Or Component Type:
Disconnect Switch
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
$837.50

Description

9422ATCF disconnect switches are designed for control panel installations. This disconnect switch is fully compatible with 9422A handle operators and 9423 door closing mechanisms. This disconnect switch is without fuse clips. This switch and operating mechanism comes with a 9422A1 handle mechanism overpacked. The variable depth mounting range is 6.63 to 18.00 inches. Disconnect switch has horsepower ratings of 25 HP at 208 VAC, 30 HP at 240 VAC, 60 HP at 480 VAC and 75 HP at 600 VAC. Switch is also rated for 20 HP at 250 VDC and 50 HP at 600 VDC when using two poles. 9422A1 operating handle is overpacked with this disconnect switch. Disconnect switch lugs are rated for #10 to #0 AWG with copper wire and #6 to #0 with aluminum wire. Disconnect switch is UL Component Recognized and CSA certified
