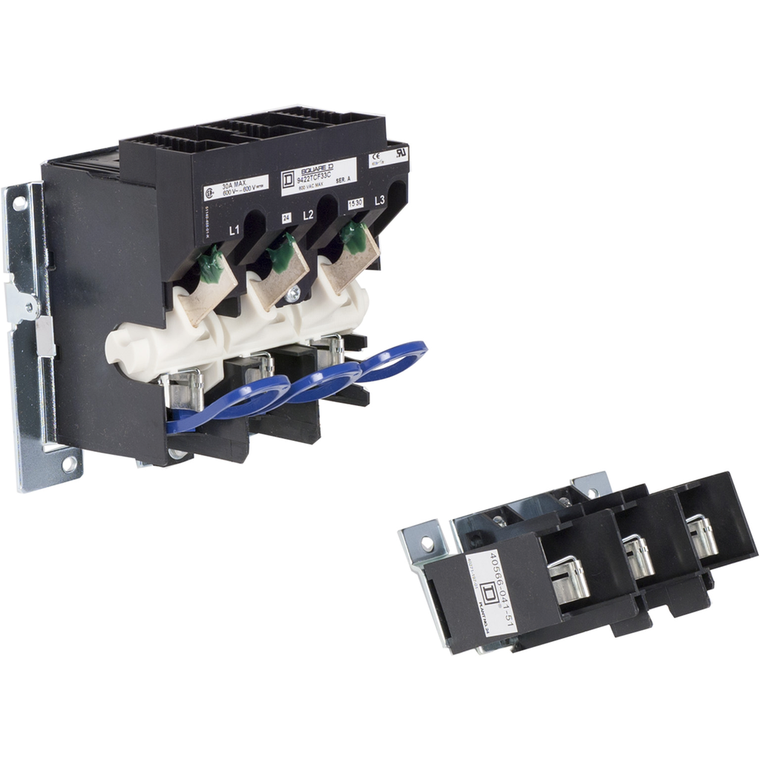

Schneider Electric 9422TCF33C Operating mechanism, flange mounted, variable depth, 30A, 600V, H, K, J, R fuseholder, cable operated switch mechanism

Schneider Electric 9422TCF33C Operating mechanism, flange mounted, variable depth, 30A, 600V, H, K, J, R fuseholder, cable operated switch mechanism

Schneider Electric
SKU:
9422TCF33C
$452.80
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
9422ATCF disconnect switches are designed for control panel installations. This disconnect switch is fully compatible with 9422A handle operators and 9423 door closing mechanisms. This disconnect switch will accept Class H, J, K or R fuses only. It has a rating of 60 Amps up to 250 V and 30 Amps up to 600 V. This 30 A disconnect switch is designed for flange mounting. The variable depth mounting range is 6.63 to 18.00 inches. Disconnect switch has horsepower ratings of 7.5 HP at 208 VAC, 7.5 HP at 240 VAC, 15 HP at 480 VAC and 20 HP at 600 VAC. Switch is also rated for 5 HP at 250 VDC and 15 HP at 600 VDC when using two poles. This disconnect switch uses 9422A operating handles or cable operator. Handle is to be ordered seoparately. Disconnect switch lugs are rated for #14 to #2 AWG with copper wire and #10 to #2 with aluminum wire. Disconnect switch is UL Component Recognized and CSA certified
Additional Information
China Rohs Regulation:
Pro-active China RoHS declaration (out of China RoHS legal scope)
Mercury Free:
Yes
Line Rated Current:
30 A
Product Or Component Type:
Disconnect Switch
Maximum Horse Power Rating:
7.5 hp 200 V AC || 7.5 hp 230 V AC || 15 hp 460 V AC || 20 hp 575 V AC || 5 hp 250 V DC
Product Mounting:
flange cable variable depth
Range Of Product:
9422T
Product Certifications:
CSA || UL Recognized
Toxic Heavy Metal Free:
Yes
Eu Rohs Directive:
Compliant
Provided Equipment:
ordered separately
Disconnector Device Type:
fusible disconnect switch
Fuse Type:
H || R || K || J
Rohs Exemption Information:
Yes
Reach Free Of Svhc:
Yes
Warranty:
18 months
Country of Origin:
United States
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Associated Fuse Rating:
60 A 250 V || 30 A 600 V
Reach Regulation:
Free of Substances of Very High Concern above the threshold
