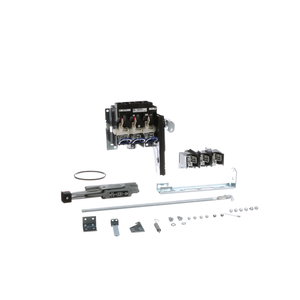

Schneider Electric 9422TDF63C Operating mechanism, flange mounted, variable depth, 60A, 600V, H, K, J, R fuseholder, cable operated switch mechanism

(No reviews yet) Write a Review
SKU:
9422TDF63C
MPN:
9422TDF63C
Condition:
New
Provided Equipment:
ordered separately
Country of Origin:
Mexico
Line Rated Current:
60 A
Disconnector Device Type:
fusible disconnect switch
Warranty:
18 months
Fuse Type:
K || H || J || R
Eu Rohs Directive:
Compliant
Product Mounting:
flange cable variable depth
China Rohs Regulation:
Pro-active China RoHS declaration (out of China RoHS legal scope)
Associated Fuse Rating:
60 A 600 V
Product Certifications:
CSA || UL Recognized
Rohs Exemption Information:
Yes
Mercury Free:
Yes
Toxic Heavy Metal Free:
Yes
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc:
Yes
Range Of Product:
9422T
Maximum Horse Power Rating:
15 hp 200 V AC || 15 hp 230 V AC || 30 hp 460 V AC || 50 hp 575 V AC || 10 hp 250 V DC
Product Or Component Type:
Disconnect Switch
Reach Regulation:
Free of Substances of Very High Concern above the threshold
$552.50

Description

9422ATCF disconnect switches are designed for control panel installations. This disconnect switch is fully compatible with 9422A handle operators and 9423 door closing mechanisms. This disconnect switch will accept Class H, J, K or R fuses only. It has a rating of 60 Amps up to 600 V. This 60 A disconnect switch is designed for flange mounting. The variable depth mounting range is 6.63 to 18.00 inches. Disconnect switch has horsepower ratings of 15 HP at 240 VAC, 30 HP at 480 VAC and 50 HP at 600 VAC. Switch is also rated for 10 HP at 250 VDC and 30 HP at 600 VDC when using two poles. This disconnect switch uses 9422A operating handles or cable operator. Handle is to be ordered seoparately. Disconnect switch lugs are rated for #14 to #2 AWG with copper wire and #10 to #2 with aluminum wire. Disconnect switch is UL Component Recognized and CSA certified
