Schneider Electric AK5PC33 Plug Bi 32A Fil Lg 250Mm
Schneider Electric
$23.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

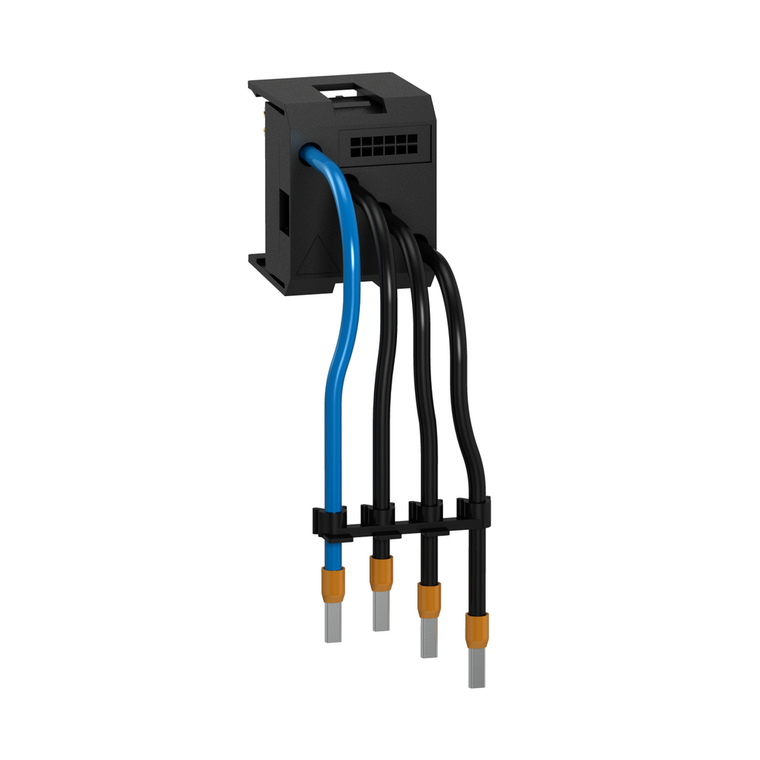

Schneider Electric AK5PC33 Plug Bi 32A Fil Lg 250Mm
Linergy 3P plug outlet. It provides 3P, 2 points and 3 cables with 4 mm², 0.25 m. The conventional free air thermal current is 32A. Sold in lots of 6 units. It conforms to IEC 60439 standard. Multi standards certified (CSA, DNV, UL, LROS (Lloyds register of shipping). It is compliant with Green Premium (RoHS/REACH).
- Mercury Free:
- Yes
- Rohs Exemption Information:
- Yes
- Reach Free Of Svhc:
- Yes
- Eu Rohs Directive:
- Compliant
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- [Ui] Rated Insulation Voltage:
- 600 V CSA || 600 V UL || 690 V IEC 60439-1
- Number Of Points:
- 2
- Standards:
- IEC 60439
- Number Of Cables:
- 3 4-4 mm²
- Height:
- 46 mm
- Sustainable Offer Status:
- Green Premium product
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Product Name:
- HK
- Range:
- Linergy
- Poles Description:
- 3P
- Width:
- 36 mm
- [Ith] Conventional Free Air Thermal Current:
- 32 A
- Cable Length:
- 0.25 m
- Environmental Disclosure:
- ENVPEP120206EN
- Warranty:
- 18 months
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- I²T On Activation:
- 200000 A².s
- China Rohs Regulation:
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Depth:
- 38 mm
- Net Weight:
- 0.045 kg
- Product Or Component Type:
- plug outlet
- Circularity Profile:
- N/A
- Peak Current:
- 25 kA
- Quantity Per Set:
- set of 6
- Product Certifications:
- DNV || LROS (Lloyds register of shipping) || CSA || UL
- Toxic Heavy Metal Free:
- Yes
- Datasheet:
- View
