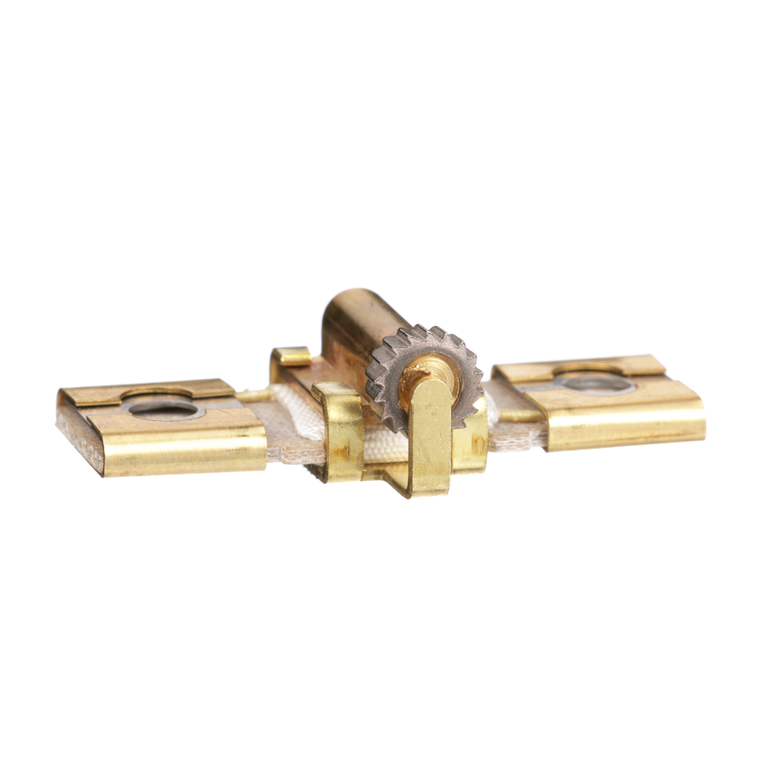

Schneider Electric B22.0 Thermal Unit, Type S, Type B, melting alloy, Class 20

(No reviews yet) Write a Review
SKU:
B22.0
MPN:
B22.0
Condition:
New
Pvc Free:
Yes
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Country of Origin:
Mexico
Warranty:
18 months
Thermal Overload Type:
melting alloy
Motor Tripping Class:
20
Range Of Product:
B
Eu Rohs Directive:
Not applicable, out of EU RoHS legal scope
$36.38

Description

Linergy NEMA fuse holders are panel mount fuse holders that will accept class H, R, CC, M, and J fuses up to 200 Amps. This two pole fuse holder will accept class M fuses. The rating of the fuse can be up to 30 Amps with a 600 V maximum rating. These thermal units will trip in 20 seconds or less on overload conditions. Fuse clips are made of a copper alloy that is tin plated. The fuse clips are standard fuse clips. The fuse holder base is made of high impact thermoplastic. AIC Rating in accordance with UL512 is 100,000 Amp. This fuse holder is UL component recognized and CSA certified.
