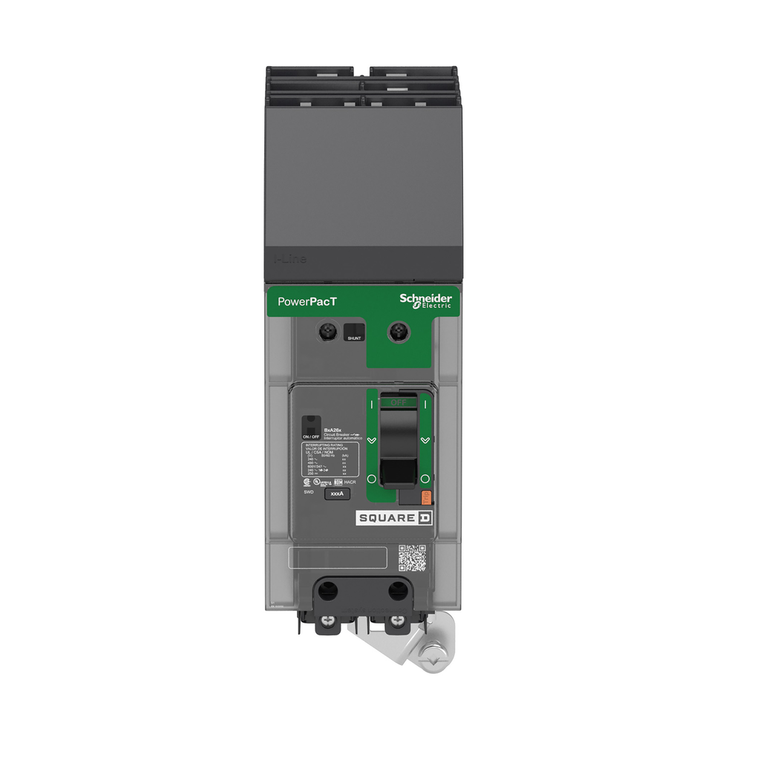

Schneider Electric BDA260802 Molded Case Circuit Brkr 600Y/347V 80A
Schneider Electric
$979.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
PowerPacT B-Frame brings thermal-mechanical circuit protection in a compact size and offers a wide range of accessories, auxiliaries, and connection options. This PowerPacT B-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 14kA at 600Y/347VAC. All PowerPacT B-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT B-Frame circuit breakers come in 1 to 4-pole unit mount construction and in 1 to 3-pole I-Line construction. I-Line circuit breakers come with a shrouded I-Line plug on jaw. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT B, 80A, 2 pole, circuit breaker has a breaking capacity of 14kA at 600Y/347VAC. This circuit breaker has a continuous current rating of 80% with an AC phase connection. PowerPacT B circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Product Name:
- PowerPact B
- Electrical Durability:
- 10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Ik Degree Of Protection:
- IK07 IEC 62262
- Range:
- PowerPact
- Ambient Air Temperature For Storage:
- -50-85 °C
- Eu Rohs Directive:
- Compliant with Exemptions
- Color:
- Gray RAL 7016)
- Local Signalling:
- presence of auxiliary contacts flag green)
- Environmental Disclosure:
- ENVPEP1610005EN
- Sustainable Offer Status:
- Green Premium product
- Network Frequency:
- 50/60 Hz
- Product Or Component Type:
- circuit breaker
- Tightening Torque:
- 3.6-4.4 N.m 2.5-6 mm² (AWG 14...AWG 10) || 5-6.2 N.m 10-70 mm² (AWG 8...AWG 2/0)
- Ip Degree Of Protection:
- front cover IP40 IEC 60529
- 9 Mm Pitches:
- 6
- Pvc Free:
- Yes
- [Ics] Rated Service Breaking Capacity:
- 25 kA 220...240 V AC 50/60 Hz IEC 60947-2 || 14 kA 500...525 V AC 50/60 Hz IEC 60947-2 || 18 kA 380...415 V AC 50/60 Hz IEC 60947-2 || 18 kA 440 V AC 50/60 Hz IEC 60947-2
- Standards:
- GB 14048.2 || UL 489 || NEMA AB1 || EN/IEC 60947-5-1 || NMX J-266 || EN/IEC 60947-2 || CSA C22.2 No 5
- Mounting Height:
- 76.2 mm
- Continuous Current Rating:
- 0.8
- Phase Connection:
- AC
- Control Type:
- toggle
- [Ue] Rated Operational Voltage:
- 525 V AC 50/60 Hz UL 489
- Halogen Content Performance:
- Halogen free product
- Trip Unit Technology:
- thermal-magnetic
- Rohs Exemption Information:
- Yes
- Breaking Capacity:
- 25 kA 208Y/120 V AC 50/60 Hz UL 489 || 25 kA 240 V AC 50/60 Hz UL 489 || 18 kA 480/277 V AC 50/60 Hz UL 489 || 18 kA 480 V AC 50/60 Hz UL 489 || 14 kA 600Y/347 V AC 50/60 Hz UL 489 || 10 kA 250 V DC UL 489
- Width:
- 54 mm
- Depth:
- 89 mm
- Device Application:
- distribution
- Height:
- 137 mm
- Ambient Air Temperature For Operation:
- -25-70 °C
- Utilisation Category:
- category A
- Net Weight:
- 0.952 kg
- Poles Description:
- 2P
- Mechanical Durability:
- 20000 cycles IEC 947-1 Annex K ed 5.2
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Electrical Connection:
- I-Line connection, line || lugs, load
- Circularity Profile:
- N/A
- Quality Labels:
- CE
- Product Certifications:
- UL || IEC || CCC || EAC || CSA || NOM
- Device Short Name:
- BD 080
- Quantity Per Set:
- set of 1
- Breaking Capacity Code:
- D
- Suitability For Isolation:
- yes IEC 60947-2
- Mercury Free:
- Yes
- Connection Pitch:
- 27 mm
- Pollution Degree:
- 3 IEC 60947-1
- Mounting Mode:
- I-Line
- Wire Stripping Length:
- 20 mm
- Awg Gauge:
- AWG 14...AWG 2/0 aluminium/copper
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- [Ui] Rated Insulation Voltage:
- 800 V IEC 60947-2
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Circuit Breaker Application:
- HACR rated
- Line Rated Current:
- 80-80 A
- Number Of Slots:
- 1 auxiliary switch OF plug-in) || 1 voltage release MN or MX plug-in)
