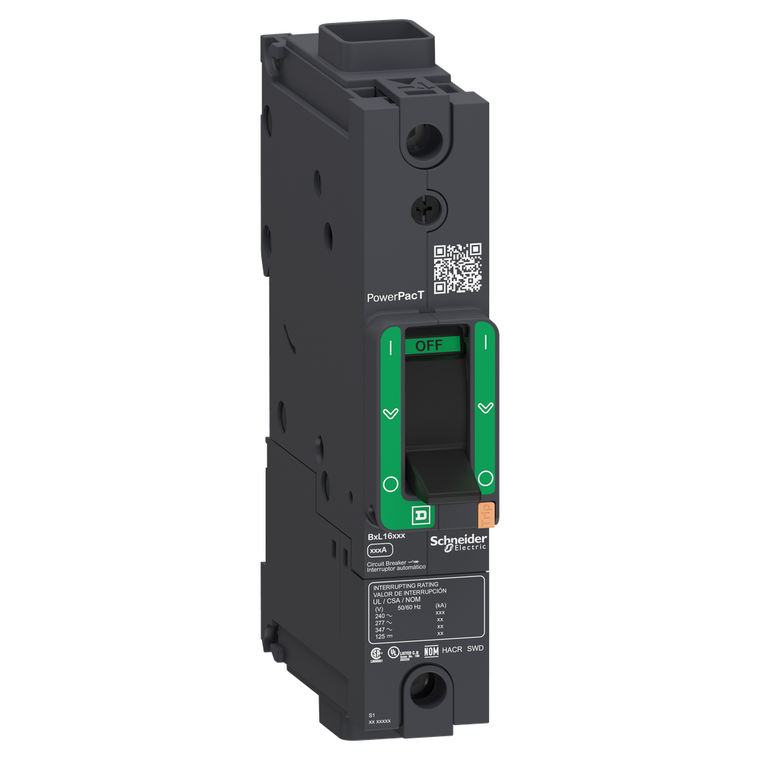

Schneider Electric BDF16100 Circuit breaker, PowerPacT B, 100A, 1 pole, 600Y/347VAC, 14kA, terminal nut, thermal magnetic, 80%
Schneider Electric
$627.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric BDF16100 Circuit breaker, PowerPacT B, 100A, 1 pole, 600Y/347VAC, 14kA, terminal nut, thermal magnetic, 80%
PowerPacT B-Frame brings thermal-mechanical circuit protection in a compact size and offers a wide range of accessories, auxiliaries, and connection options. This PowerPacT B-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 14kA at 600Y/347VAC. All PowerPacT B-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT B-Frame circuit breakers come in 1 to 4-pole unit mount construction and in 1 to 3-pole I-Line construction. This circuit breaker's unit mount construction features traditional back pan mounting with screws or integrated DIN rail mounting for installation flexibility. This unit has terminal nuts on both termination ends. This PowerPacT B, 100A, 1 pole, circuit breaker has a breaking capacity of 14kA at 600Y/347VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT B circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Operating Altitude:
- 6561.68 ft (2000 m) without derating || 5000 m with derating
- Trip Unit Technology:
- thermal-magneticTM-D,
- Device Application:
- distribution
- Sustainable Offer Status:
- Green Premium product
- Pvc Free:
- Yes
- Product Certifications:
- UL || IEC || CCC || EAC || CSA || NOM
- Environmental Disclosure:
- ENVPEP1610005EN
- [Ue] Rated Operational Voltage:
- 240 V AC 50/60 Hz UL 489
- Length:
- 20 mm
- Color:
- Gray RAL 7016)
- Network Frequency:
- 50/60 Hz
- Ik Degree Of Protection:
- IK07 conforming to IEC 62262
- Protected Poles Description:
- 1t
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Quantity Per Set:
- set of 1
- Range:
- PowerPact
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Device Short Name:
- BD 100
- Circuit Breaker Application:
- HACR rated
- Ambient Air Temperature For Storage:
- -50-85°C
- Mounting Mode:
- clip-on 35 mm symmetrical DIN rail) || by screws plate)
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Country of Origin:
- Mexico
- Depth:
- 80 mm
- Ip Degree Of Protection:
- front cover IP40 IEC 60529
- Awg Gauge:
- AWG 14...AWG 8 aluminium/copper || AWG 6...AWG 3/0 aluminium/copper
- Breaking Capacity:
- 25 kA 208Y/120 V AC 50/60 Hz UL 489 || 25 kA 240 V AC 50/60 Hz UL 489 || 18 kA 480Y/277 V AC 50/60 Hz UL 489 || 10 kA 125 V DC 50/60 Hz UL 489 || 14 kA 600/347 V AC 50/60 Hz UL 489
- Continuous Current Rating:
- 0.8
- Utilisation Category:
- category A
- Pollution Degree:
- 3 IEC 60947-1
- Rohs Exemption Information:
- Yes
- Breaking Capacity Code:
- D
- [Ui] Rated Insulation Voltage:
- 800 V IEC 60947-2
- Control Type:
- toggle
- Mercury Free:
- Yes
- Mechanical Durability:
- 15000 cycles IEC 947-1 Annex F ed 5.2
- Electrical Connection:
- terminal nut, ON and OFF end
- Connection Pitch:
- 27 mm
- Wire Stripping Length:
- 20 mm
- Halogen Content Performance:
- Halogen free product
- Quality Labels:
- CE
- [Ics] Rated Service Breaking Capacity:
- 25 kA 220...240 V AC 50/60 Hz IEC 60947-2
- Product Name:
- PowerPact B
- Suitability For Isolation:
- yes IEC 60947-2
- Eu Rohs Directive:
- Compliant
- 9 Mm Pitches:
- 3
