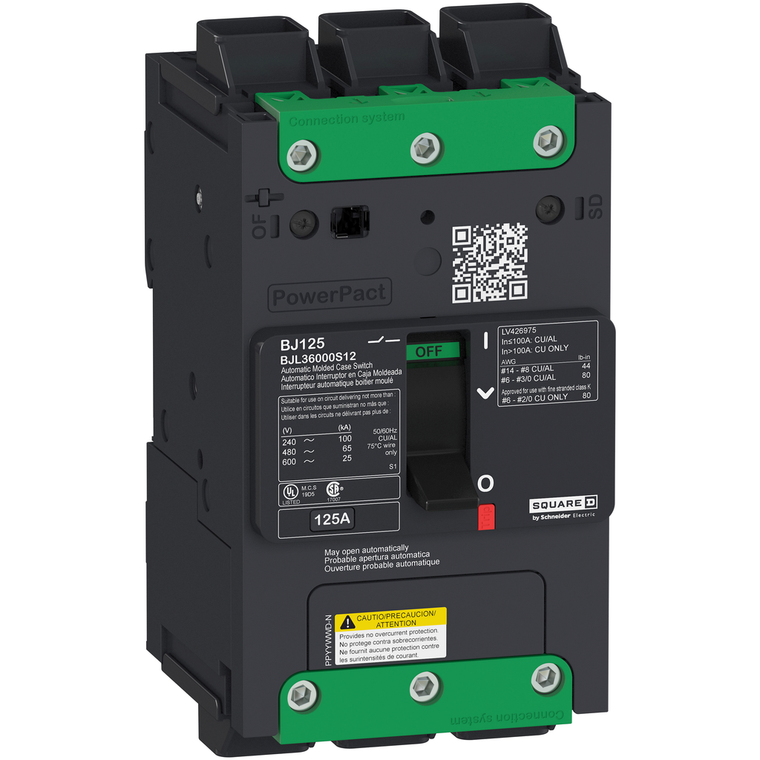

Schneider Electric BDL36000S12 Automatic switch, PowerPacT B, 125A, 3 pole, 600VAC, 14kA, EverLink lug, magnetic

Schneider Electric BDL36000S12 Automatic switch, PowerPacT B, 125A, 3 pole, 600VAC, 14kA, EverLink lug, magnetic

Schneider Electric
SKU:
BDL36000S12
$777.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
Automatic switch, PowerPacT B, 125A, 3 pole, 600VAC, 14kA, EverLink lug, magnetic
Additional Information
Mounting Mode:
clip-on 35 x 15 mm symmetrical DIN rail) || by screws plate)
Country of Origin:
United States
Eu Rohs Directive:
Compliant with Exemptions
Contact Position Indicator:
yes
Wire Stripping Length:
20 mm
Color:
Gray RAL 7016)
Circularity Profile:
N/A
Halogen Content Performance:
Halogen free product
Tightening Torque:
5-5 N.m 2.5-10 mm² || 9-9 N.m 16-95 mm²
Control Type:
toggle
Magnetic Hold Current:
880 A
9 Mm Pitches:
9
Product Name:
PowerPact B
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
California Proposition 65:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Pvc Free:
Yes
Product Certifications:
UL
Short-Circuit Withstand:
25 kA 208Y/120 V UL 489 || 25 kA 240 V UL 489 || 18 kA 480Y/277 V UL 489 || 18 kA 480 V UL 489 || 14 kA 600 V UL 489
Device Application:
distribution
Number Of Slots:
1 auxiliary switch OF plug-in) || 1 voltage release MN or MX plug-in) || 1 alarm switch SD plug-in)
Ambient Air Temperature For Storage:
-50-85°C
Mercury Free:
Yes
Rohs Exemption Information:
Yes
Mechanical Durability:
15000 cycles IEC 947-1 Annex K ed 5.2
Quality Labels:
CE
Ambient Air Temperature For Operation:
-25-70°C
Length:
20 mm
Standards:
UL 489
Sustainable Offer Status:
Green Premium product
Electrical Connection:
Everlink lug, line || Everlink lug, load
Connection Pitch:
27 mm
Poles Description:
3P
[Ue] Rated Operational Voltage:
600Y/347 V AC 50/60 Hz UL 489
Electrical Durability:
10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
Breaking Capacity Code:
D
Quantity Per Set:
set of 1
Awg Gauge:
AWG 6...AWG 2/0 fine stranded aluminium/copper || AWG 14...AWG 3/0 rigid or stranded aluminium/copper
Operating Altitude:
6561.68 ft (2000 m) without derating || 5000 m with derating
Environmental Disclosure:
ENVPEP2311047EN
Range:
PowerPact
Local Signaling:
for presence of auxiliary contacts flag (green)
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Depth:
89 mm
Product Or Component Type:
automatic switch
Magnetic Tripping Current:
1320-1320 A
