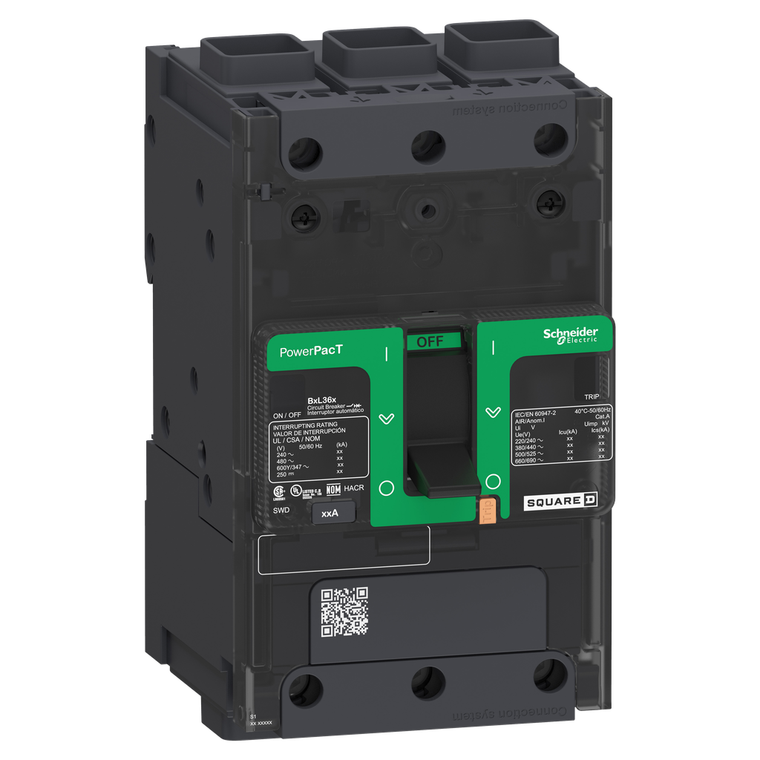

Schneider Electric BGF36025 Circuit breaker, PowerPacT B, 25A, 3 pole, 600Y/347VAC, 18kA, terminal nut, thermal magnetic, 80%

Schneider Electric BGF36025 Circuit breaker, PowerPacT B, 25A, 3 pole, 600Y/347VAC, 18kA, terminal nut, thermal magnetic, 80%

Schneider Electric
SKU:
BGF36025
$1,344.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
PowerPacT B-Frame brings thermal-mechanical circuit protection in a compact size and offers a wide range of accessories, auxiliaries, and connection options. This PowerPacT B-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 18kA at 600Y/347VAC. All PowerPacT B-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT B-Frame circuit breakers come in 1 to 4-pole unit mount construction and in 1 to 3-pole I-Line construction. This circuit breaker's unit mount construction features traditional back pan mounting with screws or integrated DIN rail mounting for installation flexibility. This unit has terminal nuts on both termination ends. This PowerPacT B, 25A, 3 pole, circuit breaker has a breaking capacity of 18kA at 600Y/347VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT B circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Connection Pitch:
27 mm
Poles Description:
3P
Product Or Component Type:
circuit breaker
Weight:
0.924 kg
Breaking Capacity Code:
G
Country of Origin:
United States
Halogen Content Performance:
Halogen free product
Operating Altitude:
6561.68 ft (2000 m) without derating || 5000 m with derating
Ip Degree Of Protection:
front cover IP40 IEC 60529
Pollution Degree:
3 IEC 60947-1
Range:
PowerPact
Mechanical Durability:
15000 cycles IEC 947-1 Annex K ed 5.2
Tightening Torque:
5-5 N.m 2.5-16 mm² (AWG 14...AWG 4) || 9-9 N.m 25-95 mm² (AWG 3...AWG 3/0)
Depth:
80 mm
Pvc Free:
Yes
Color:
Gray RAL 7016)
Rohs Exemption Information:
Yes
Wire Stripping Length:
20 mm
Sustainable Offer Status:
Green Premium product
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Circularity Profile:
N/A
Circuit Breaker Application:
HACR rated
Product Name:
PowerPact B
9 Mm Pitches:
9
Utilisation Category:
category A
Network Frequency:
50/60 Hz
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Number Of Slots:
1 auxiliary switch OF plug-in) || 1 voltage release MN or MX plug-in) || 1 alarm switch SD plug-in)
Quality Labels:
CE
Standards:
EN/IEC 60947-2 || CSA C22.2 No 5 || NMX J-266 || EN/IEC 60947-5-1 || GB 14048.2 || NEMA AB1 || UL 489
Trip Unit Technology:
thermal-magneticTM-D,
Electrical Connection:
terminal nut, ON and OFF end
Protected Poles Description:
3t
Length:
20 mm
Eu Rohs Directive:
Compliant with Exemptions
Mounting Mode:
clip-on 35 mm symmetrical DIN rail) || by screws plate)
[Ui] Rated Insulation Voltage:
800 V IEC 60947-2
[Ics] Rated Service Breaking Capacity:
65 kA 220...240 V AC 50/60 Hz IEC 60947-2 || 18 kA 500...525 V AC 50/60 Hz IEC 60947-2 || 35 kA 380...415 V AC 50/60 Hz IEC 60947-2 || 35 kA 440 V AC 50/60 Hz IEC 60947-2
Control Type:
toggle
Breaking Capacity:
65 kA 208Y/120 V AC 50/60 Hz UL 489 || 65 kA 240 V AC 50/60 Hz UL 489 || 35 kA 480/277 V AC 50/60 Hz UL 489 || 35 kA 480 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 18 kA 600Y/347 V AC 50/60 Hz UL 489
Continuous Current Rating:
0.8
Device Application:
distribution
Electrical Durability:
10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
Line Rated Current:
25-25 A
Device Short Name:
BG 025
Suitability For Isolation:
yes IEC 60947-2
