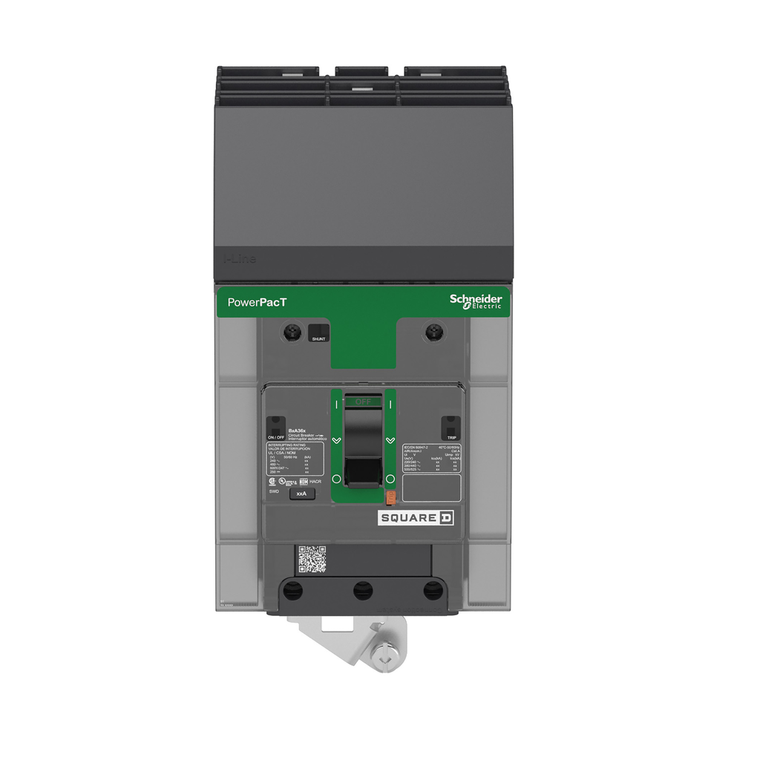

Schneider Electric BJA36070 Molded Case Circuit Brkr 600Y/347V 70A

(No reviews yet) Write a Review

Write a Review

Schneider Electric BJA36070 Molded Case Circuit Brkr 600Y/347V 70A

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

BJA36070

UPC:

3606481185891

MPN:

Condition:

New

Device Application:

distribution

Line Rated Current:

70-70 A

Electrical Durability:

10000 cycles IEC 947-1 Annex K ed 5.2 440 V In

Suitability For Isolation:

yes IEC 60947-2

Trip Unit Technology:

thermal-magnetic

Awg Gauge:

AWG 14...AWG 2/0 aluminium/copper

Product Certifications:

UL || IEC || CCC || EAC || CSA || NOM

Continuous Current Rating:

0.8

Tightening Torque:

3.6-4.4 N.m 2.5-6 mm² (AWG 14...AWG 10) || 5-6.2 N.m 10-70 mm² (AWG 8...AWG 2/0)

Mounting Height:

114 mm

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

9 Mm Pitches:

9

Width:

81 mm

[Uimp] Rated Impulse Withstand Voltage:

8 kV IEC 60947-2

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Ik Degree Of Protection:

IK07 IEC 62262

Control Type:

toggle

Ip Degree Of Protection:

front cover IP40 IEC 60529

Net Weight:

1.315 kg

Product Or Component Type:

circuit breaker

Halogen Content Performance:

Halogen free product

Electrical Connection:

I-Line connection, line || lugs, load

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

California Proposition 65:

WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information

Mercury Free:

Yes

Eu Rohs Directive:

Compliant with Exemptions

Network Frequency:

50/60 Hz

Pvc Free:

Yes

Ambient Air Temperature For Operation:

-25-70 °C

[Ui] Rated Insulation Voltage:

800 V IEC 60947-2

Circularity Profile:

N/A

Utilisation Category:

category A

Color:

Gray RAL 7016)

Number Of Slots:

1 auxiliary switch OF plug-in) || 1 voltage release MN or MX plug-in) || 1 alarm switch SD plug-in)

Rohs Exemption Information:

Yes

Connection Pitch:

27 mm

Breaking Capacity Code:

J

Poles Description:

3P

[Ics] Rated Service Breaking Capacity:

100 kA 220...240 V AC 50/60 Hz IEC 60947-2 || 25 kA 500...525 V AC 50/60 Hz IEC 60947-2 || 10 kA 690 V AC 50/60 Hz IEC 60947-2 || 65 kA 380...415 V AC 50/60 Hz IEC 60947-2 || 65 kA 440 V AC 50/60 Hz IEC 60947-2

Local Signalling:

presence of auxiliary contacts flag green)

Quantity Per Set:

set of 1

Device Short Name:

BJ 070

Product Name:

PowerPact B

Height:

137 mm

Wire Stripping Length:

20 mm

Ambient Air Temperature For Storage:

-50-85 °C

Operating Altitude:

< 6561.68 ft (2000 m) without derating || 5000 m with derating

Sustainable Offer Status:

Green Premium product

[Ue] Rated Operational Voltage:

690 V AC 50/60 Hz UL 489

Circuit Breaker Application:

HACR rated

Range:

PowerPact

Quality Labels:

CE

Standards:

GB 14048.2 || NMX J-266 || EN/IEC 60947-5-1 || UL 489 || EN/IEC 60947-2 || NEMA AB1 || CSA C22.2 No 5

Breaking Capacity:

100 kA 208Y/120 V AC 50/60 Hz UL 489 || 100 kA 240 V AC 50/60 Hz UL 489 || 65 kA 480/277 V AC 50/60 Hz UL 489 || 65 kA 480 V AC 50/60 Hz UL 489 || 25 kA 600Y/347 V AC 50/60 Hz UL 489 || 50 kA 250 V DC UL 489

Mechanical Durability:

20000 cycles IEC 947-1 Annex K ed 5.2

Mounting Mode:

I-Line

Depth:

89 mm

Pollution Degree:

3 IEC 60947-1

Phase Connection:

ABC

Environmental Disclosure:

ENVPEP1610005EN
