6561.68 ft (2000 m) without derating || 5000 m with derating
Circularity Profile:
N/A
Mechanical Durability:
15000 cycles IEC 947-1 Annex K ed 5.2
Suitability For Isolation:
yes IEC 60947-2
Ambient Air Temperature For Operation:
-25-70°C
Ambient Air Temperature For Storage:
-50-85°C
Connection Pitch:
27 mm
Electrical Connection:
terminal nut, ON and OFF end
Range:

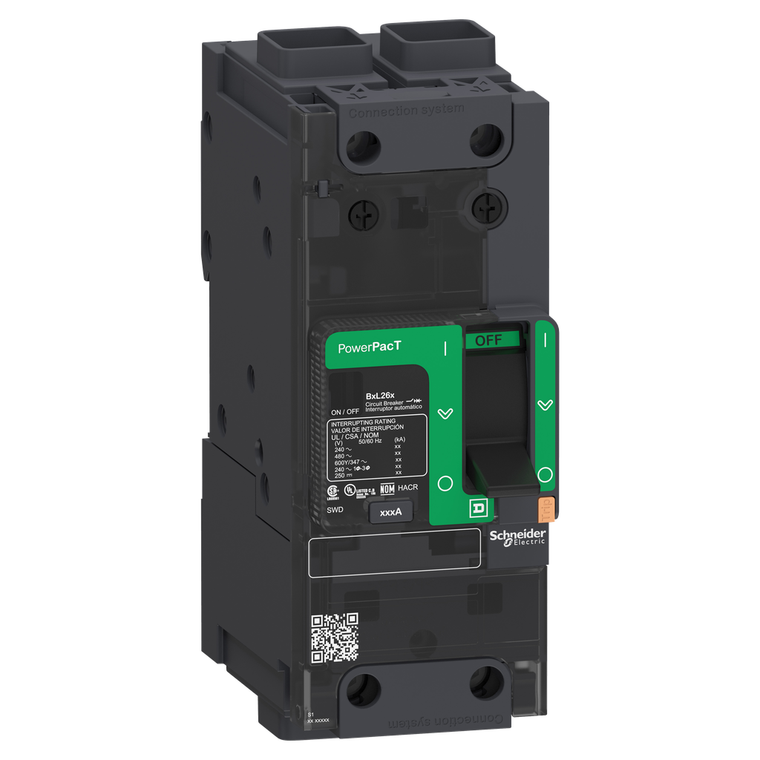

PowerPact
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
100 kA 220...240 V AC 50/60 Hz IEC 60947-2 || 25 kA 500...525 V AC 50/60 Hz IEC 60947-2 || 2.5 kA 690 V AC 50/60 Hz IEC 60947-2 || 65 kA 380...415 V AC 50/60 Hz IEC 60947-2 || 65 kA 440 V AC 50/60 Hz IEC 60947-2
Depth:
80 mm
Quality Labels:
CE
Local Signaling:
presence of auxiliary contacts flag green)
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Product out of China RoHS scope. Substance declaration for your information.
Pollution Degree:
3 IEC 60947-1
Circuit Breaker Application:
HACR rated
Breaking Capacity Code:
J
Color:
Gray RAL 7016)
Poles Description:
2P
Number Of Slots:
1 auxiliary switch OF plug-in) || 1 voltage release MN or MX plug-in)
Trip Unit Name:
TM-D
Breaking Capacity:
100 kA 208Y/120 V AC 50/60 Hz UL 489 || 100 kA 240 V AC 50/60 Hz UL 489 || 65 kA 480/277 V AC 50/60 Hz UL 489 || 65 kA 480 V AC 50/60 Hz UL 489 || 25 kA 600Y/347 V AC 50/60 Hz UL 489 || 50 kA 250 V DC UL 489
