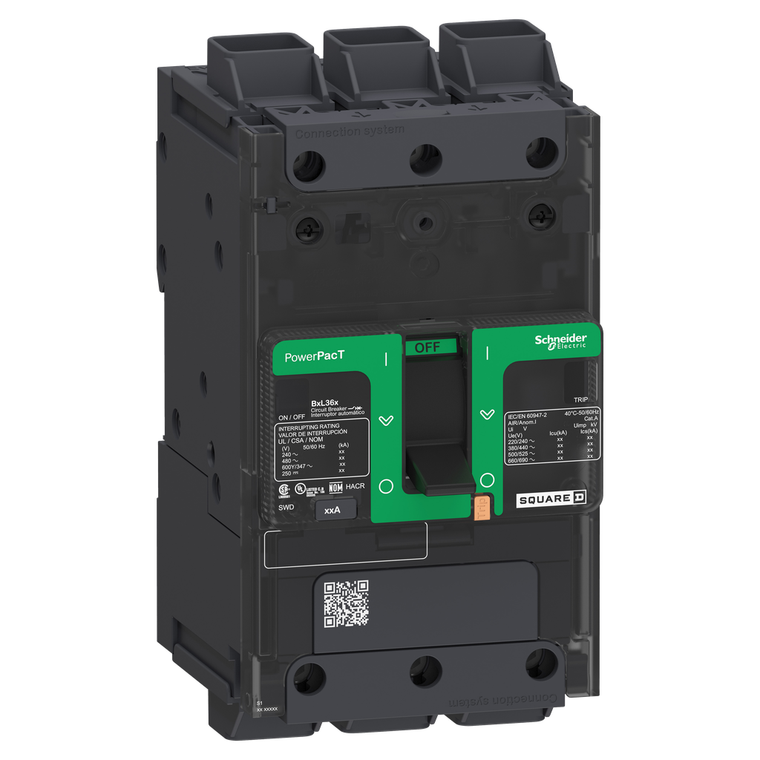

Schneider Electric BJL36100LU Circuit breaker, PowerPacT B, 100A, 3 pole, 600Y/347VAC, 25kA, lugs, thermal magnetic, 80%, control wire ON end

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric BJL36100LU Circuit breaker, PowerPacT B, 100A, 3 pole, 600Y/347VAC, 25kA, lugs, thermal magnetic, 80%, control wire ON end

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

BJL36100LU

UPC:

MPN:

BJL36100LU

Condition:

New

Pollution Degree:

3 IEC 60947-1

Line Rated Current:

100-100 A

Quantity Per Set:

set of 1

Height:

137 mm

California Proposition 65:

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Number Of Slots:

1 auxiliary switch OF plug-in) || 1 voltage release MN or MX plug-in) || 1 alarm switch SD plug-in)

Circuit Breaker Application:

HACR rated

Mercury Free:

Yes

Depth:

80 mm

Width:

81 mm

Breaking Capacity:

100 kA 208Y/120 V AC 50/60 Hz UL 489 || 100 kA 240 V AC 50/60 Hz UL 489 || 65 kA 480/277 V AC 50/60 Hz UL 489 || 65 kA 480 V AC 50/60 Hz UL 489 || 25 kA 600Y/347 V AC 50/60 Hz UL 489 || 50 kA 250 V DC UL 489

Device Application:

distribution

Electrical Connection:

Everlink lug, line || Everlink lug, load

Length:

20 mm

Color:

Gray RAL 7016)

Electrical Durability:

10000 cycles IEC 947-1 Annex K ed 5.2 440 V In

Mounting Mode:

clip-on 35 mm symmetrical DIN rail) || by screws plate)

Ambient Air Temperature For Storage:

-50-85°C

[Ics] Rated Service Breaking Capacity:

100 kA 220...240 V AC 50/60 Hz IEC 60947-2 || 25 kA 500...525 V AC 50/60 Hz IEC 60947-2 || 2.5 kA 690 V AC 50/60 Hz IEC 60947-2 || 65 kA 380...415 V AC 50/60 Hz IEC 60947-2 || 65 kA 440 V AC 50/60 Hz IEC 60947-2

Continuous Current Rating:

0.8

Connection Pitch:

27 mm

Halogen Content Performance:

Halogen free product

Sustainable Offer Status:

Green Premium product

Poles Description:

3P

Ambient Air Temperature For Operation:

-25-70°C

Eu Rohs Directive:

Compliant

[Ue] Rated Operational Voltage:

690 V AC 50/60 Hz UL 489

Suitability For Isolation:

yes IEC 60947-2

Operating Altitude:

6561.68 ft (2000 m) without derating || 5000 m with derating

Utilisation Category:

category A

Control Type:

toggle

[Uimp] Rated Impulse Withstand Voltage:

8 kV IEC 60947-2

Ip Degree Of Protection:

front cover IP40 IEC 60529

Product Certifications:

UL || IEC || CCC || EAC || CSA || NOM

Standards:

NMX J-266 || EN/IEC 60947-5-1 || GB 14048.2 || UL 489 || NEMA AB1 || CSA C22.2 No 5 || EN/IEC 60947-2

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Trip Unit Technology:

thermal-magneticTM-D,

Trip Unit Name:

TM-D

Wire Stripping Length:

20 mm

Ik Degree Of Protection:

IK07 conforming to IEC 62262

Range:

PowerPact

Pvc Free:

Yes

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Breaking Capacity Code:

J

[Ui] Rated Insulation Voltage:

800 V IEC 60947-2

Awg Gauge:

AWG 6...AWG 2/0 fine stranded aluminium/copper || AWG 14...AWG 3/0 rigid or stranded aluminium/copper

Mechanical Durability:

15000 cycles IEC 947-1 Annex K ed 5.2

Net Weight:

1.074 kg

Environmental Disclosure:

ENVPEP1610005EN

Country of Origin:

United States
