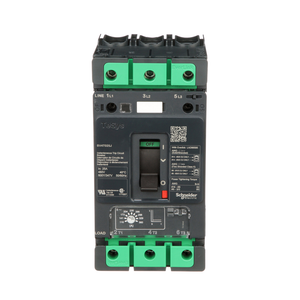

Schneider Electric BV4T050J Motor Circuit Protector 600Y/347V 50A
Schneider Electric
$500.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
The TeSys BV4 motor circuit protector allows for compact motor protection in conjunction with both the TeSys and Square D NEMA product families for motor control. These protectors have UL508 type D combination ratings in accordance to current NEC installation requirements The BV4 is a magnetic only protector. It is a UL489 Listed circuit protector rated up to 100kA short circuit protection rating per a listed combination motor controller rating. This 3 pole motor circuit protector with high fault has a 50A rating. It also has an adjustable instantaneous trip rating of 176 to 650 amperes. BV4 protectors have wiring terminals with the EverLink patented technology. These terminals reduce the risk of loose bare cables due to copper creeping. Vibration withstand is improved and periodic retightening is no longer needed. BV4 motor circuit protectors can be installed directly to a panel or on standard DIN rail. This circuit protector is 6.38 inches tall, 3.19 inches wide and 4.57 inches deep. This motor circuit protector is UL Listed and CSA certified.
- Electrical Durability:
- 20000 cycles AC-3 440 V In/2 || 10000 cycles AC-3 440 V In
- Quantity Per Set:
- 1
- Utilisation Category:
- category A
- Mechanical Durability:
- 40000 cycles
- Poles Description:
- 3P
- Depth:
- 116 mm
- Mounting Mode:
- by clips || by screws
- Eu Rohs Directive:
- Compliant with Exemptions
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Color:
- Gray RAL 7016)
- Ambient Air Temperature For Operation:
- -25-70 °C
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Trip Unit Technology:
- magnetic
- Product Certifications:
- CSA || UL
- Line Rated Current:
- 50 A 40 °C
- Device Short Name:
- BV4
- Performance Level:
- high performance
- Height:
- 162 mm
- Product Or Component Type:
- Motor Circuit Protector
- Number Of Slots:
- 1 alarm switch fault signalling contact, plug-in || 1 voltage release electrical remote tripping, plug-in || 1 auxiliary switch open/close contact, plug-in
- Connections - Terminals:
- 2 EverLink BTR screw connectors 1.5-70 mm² AWG 14...AWG 2/0), solid copper || 2 EverLink BTR screw connectors 1.5-50 mm² AWG 6...AWG 1/0), flexible copper
- Mounting Support:
- 35 mm symmetrical DIN rail || 75 mm symmetrical DIN rail || plate
- Ambient Air Temperature For Storage:
- -50-85 °C
- Halogen Content Performance:
- Halogen free plastic parts product
- Tightening Torque:
- 5-5 N.m 10-10 mm² (AWG 8) || 9-9 N.m 16-16 mm² (AWG 6)
- Local Signalling:
- for presence of auxiliary contacts flag (green)
- Device Application:
- motor
- Trip Unit Rating:
- 176-650 A 40 °C
- Width:
- 81 mm
- Ip Degree Of Protection:
- IP40 front face IEC 60529
- Mechanical Robustness:
- vibrations +/- 1 mm 2...13.2 Hz IEC 60068-2-6 || vibrations 0.7 gn 13.2...100 Hz IEC 60068-2-6 || shocks 15 gn 11 ms IEC 60068-2-27
- Operating Altitude:
- 6561.68 ft (2000 m) without derating || > 2000...5000 m with derating
- Ik Degree Of Protection:
- IK07 IEC 62262
- Wire Stripping Length:
- 20 mm
- Connection Pitch:
- 27 mm
- Net Weight:
- 1.5 kg
- [Ue] Rated Operational Voltage:
- 600Y/347 V AC 50/60 Hz
- Control Type:
- toggle
- Range:
- TeSys
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Mercury Free:
- Yes
- Product Name:
- TeSys BV4
- Pvc Free:
- Yes
- Rohs Exemption Information:
- Yes
- Standards:
- UL 489 || CSA C22.2 No 5
- Protection Type:
- short-circuit
