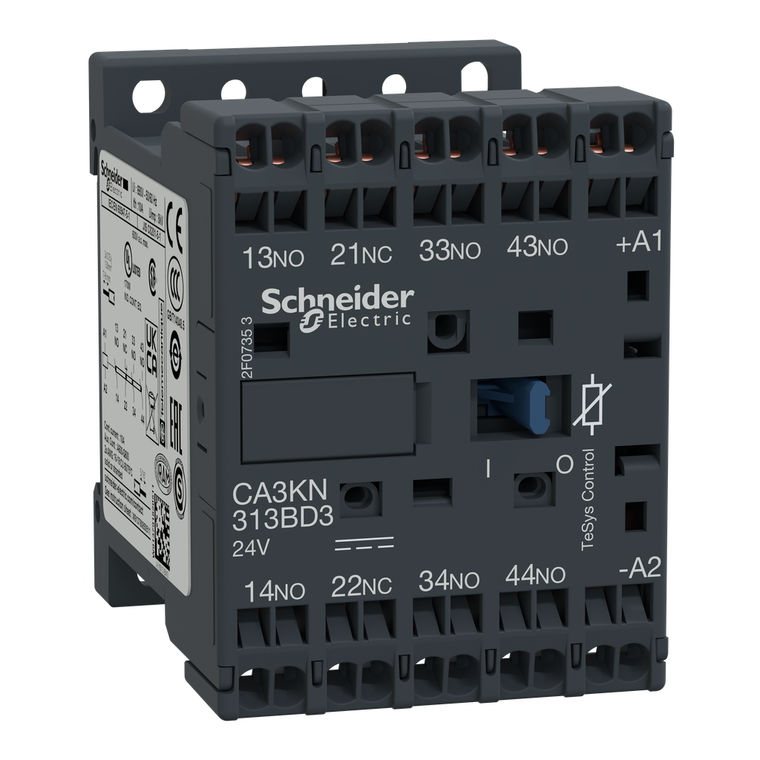

Schneider Electric CA3KN313BD3 Control relay, TeSys K, 3 NO + 1 NC, lt or eq to 690V, 24VDC standard coil

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric CA3KN313BD3 Control relay, TeSys K, 3 NO + 1 NC, lt or eq to 690V, 24VDC standard coil

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

CA3KN313BD3

UPC:

MPN:

CA3KN313BD3

Condition:

New

Height:

58 mm

Environmental Disclosure:

ENVPEP1503003EN

Protective Treatment:

TC IEC 60068

Mechanical Robustness:

vibrations contactor open2 Gn, 5...300 Hz IEC 60068-2-6 || vibrations contactor closed4 Gn, 5...300 Hz IEC 60068-2-6 || shocks contactor open10 Gn for 11 ms IEC 60068-2-27 || shocks contactor closed15 Gn for 11 ms IEC 60068-2-27

Inrush Power In W:

3-3 W 20°C)

Pole Contact Composition:

3 NO + 1 NC

Contactor Application:

control circuit

Toxic Heavy Metal Free:

Yes

Rohs Exemption Information:

Yes

Associated Fuse Rating:

10 A gG conforming to IEC 60947 || 10 A gG conforming to VDE 0660

Immunity To Microbreaks:

2 ms

Country of Origin:

France

Maximum Operating Rate:

10000 cyc/h

Product Or Component Type:

control relay

Operating Altitude:

6561.68 ft (2000 m) without derating

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Weight:

0.225 kg

Control Circuit Type:

DC standard

China Rohs Regulation:

Pro-active China RoHS declaration (out of China RoHS legal scope)

Ambient Air Temperature For Storage:

-50-80°C

Flame Retardance:

V1 conforming to UL 94 || requirement 2 conforming to NF F 16-101 || requirement 2 conforming to NF F 16-102

Irms Rated Making Capacity:

110 A IEC 60947

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Heat Dissipation:

3-3 W

Reach Free Of Svhc:

Yes

Connections - Terminals:

spring terminals 1 0.75-1.5 mm²solid || spring terminals 1 0.75-1.5 mm²flexible without cable end

Coil Technology:

built-in bidirectional peak limiting diode suppressor

Ambient Air Temperature For Operation:

-25-50°C

Non Overlap Distance:

0.5 mm

Mercury Free:

Yes

[Ith] Conventional Free Air Thermal Current:

10 A (at 50°C)

Net Weight:

0.225 kg

Eu Rohs Directive:

Compliant

Hold-In Power Consumption In W:

3-3 W 20°C

[Ue] Rated Operational Voltage:

<= 690 V <= 400 Hz

Range:

TeSys

Control Circuit Voltage Limits:

operational: 0.8...1.15 Uc (at <50°C) || drop-out: 0.1...0.75 Uc (at <50°C)

Minimum Switching Voltage:

17 V

Mechanical Durability:

20 Mcycles

[Uc] Control Circuit Voltage:

24 V DC

Warranty:

18 months

Sustainable Offer Status:

Green Premium product

Depth:

57 mm

Circularity Profile:

ENVEOLI1503003EN

Product Name:

TeSys CAK

Insulation Resistance:

> 10 MOhm

[Ui] Rated Insulation Voltage:

690 V IEC 60947 || 750 V VDE 0110 group C || 690 V BS 5424 || 600 V CSA C22.2 No 14

Minimum Switching Current:

5 mA
