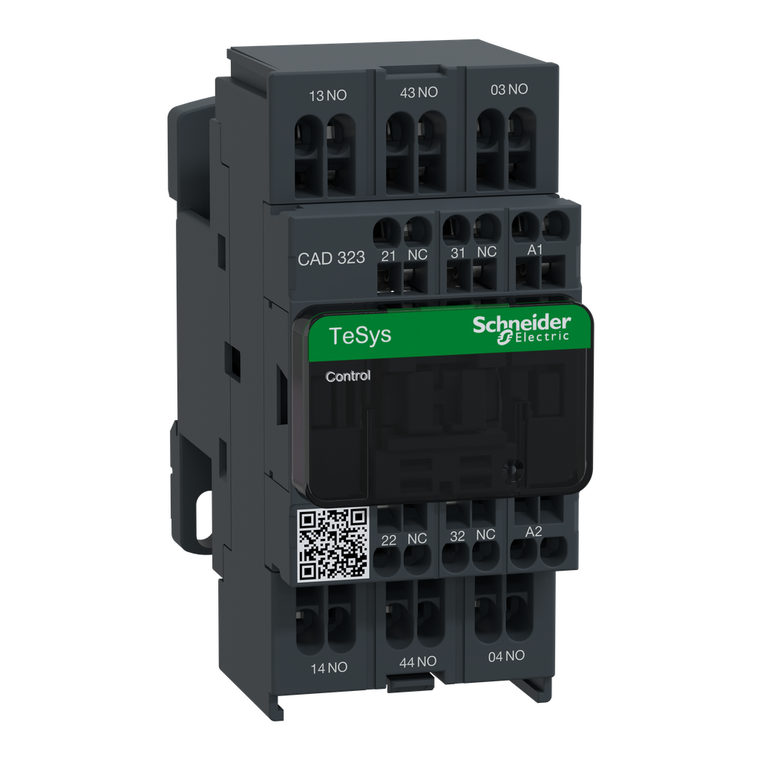

Schneider Electric CAD323P7 TeSys Deca control relay - 3 NO + 2 NC - <= 690 V - 230 V AC standard coil

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

CAD323P7

UPC:

MPN:

CAD323P7

Condition:

New

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Irms Rated Making Capacity:

140 A AC IEC 60947-5-1 || 250 A DC IEC 60947-5-1

Product Or Component Type:

control relay

Ambient Air Temperature For Storage:

-60-80°C

Rohs Exemption Information:

Yes

Eu Rohs Directive:

Compliant with Exemptions

Minimum Switching Current:

5 mA

Inrush Power In Va:

70-70 VA 50 Hz (at 20°C)

[Icw] Rated Short-Time Withstand Current:

100 A - 1 s || 120 A - 500 ms || 140 A - 100 ms

Country of Origin:

France

Standards:

EN/IEC 60947-5-1 || GB/T 14048.5 || UL 60947-5-1 || CSA C22.2 No 60947-5-1 || JIS C8201-5-1

Operating Time:

12...22 ms coil energisation and NO closing || 4...12 ms coil de-energisation and NO opening || 4...19 ms coil energisation and NC opening || 6...17 ms coil de-energisation and NC closing

Ambient Air Temperature For Operation:

-40-60°C || 60-70°C with derating

Ip Degree Of Protection:

IP2X front face VDE 0106

Mercury Free:

Yes

Connections - Terminals:

spring terminals 1 1-2.5 mm²flexible without cable end || spring terminals 2 1-2.5 mm²flexible without cable end || spring terminals 1 1-2.5 mm²solid without cable end || spring terminals 2 1-2.5 mm²solid without cable end

Pole Contact Composition:

3 NO + 2 NC

[Ith] Conventional Free Air Thermal Current:

10 A (at 60°C)

Environmental Disclosure:

ENVPEP1501004

Control Circuit Voltage Limits:

0.3...0.6 Uc -40-70°C drop-out AC 50/60 Hz || 0.8...1.1 Uc -40-60°C operational AC 50 Hz || 0.85...1.1 Uc -40-60°C operational AC 60 Hz || 1...1.1 Uc 60-70°C operational AC 50/60 Hz

Utilisation Category:

DC-13 || AC-14 || AC-15

Product Name:

TeSys CAD

[Uc] Control Circuit Voltage:

230 V AC 50/60 Hz

Associated Fuse Rating:

10 A gG conforming to IEC 60947-5-1

Sustainable Offer Status:

Green Premium product

Range:

TeSys || TeSys Deca

[Uimp] Rated Impulse Withstand Voltage:

6 kV IEC 60947

Mechanical Durability:

30 Mcycles

Minimum Switching Voltage:

17 V

[Ue] Rated Operational Voltage:

<= 690 V AC 25...400 Hz

Maximum Operating Rate:

180 cyc/mn

Mounting Support:

plate || rail

Control Circuit Type:

AC 50/60 Hz

Circularity Profile:

ENVEOLI1501004

Hold-In Power Consumption In Va:

8-8 VA 50 Hz (at 20°C)

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Operating Altitude:

0...9842.52 ft (0...3000 m)

Insulation Resistance:

> 10 MOhm

Contactor Application:

control circuit

Device Short Name:

CAD

[Ui] Rated Insulation Voltage:

600 V UL || 600 V CSA || 690 V IEC 60947-5-1

Warranty:

18 months

Product Certifications:

CB || CCC || UL || CSA || EAC || CE || UKCA

Protective Treatment:

TH IEC 60068

Depth:

84 mm
