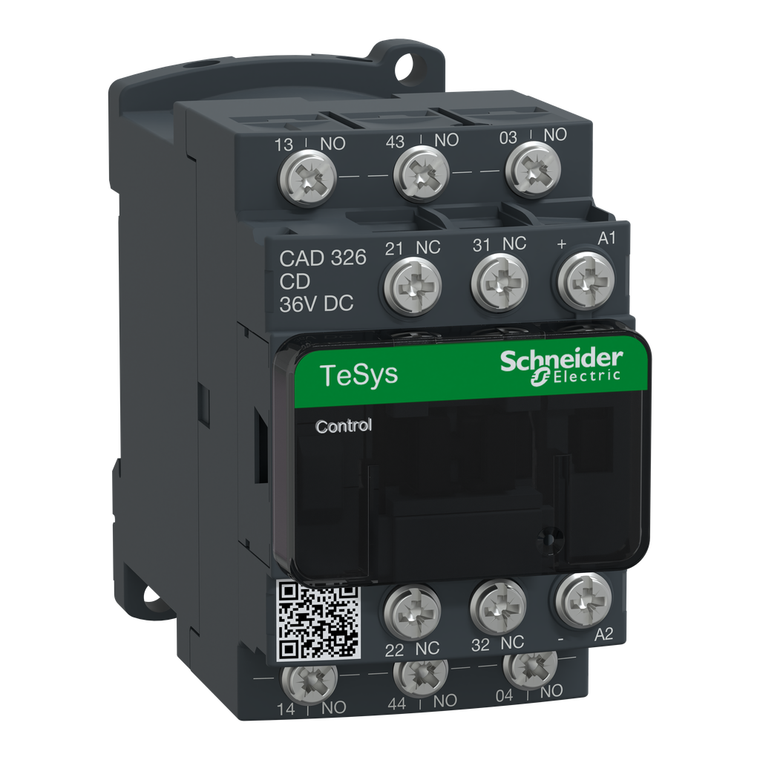

Schneider Electric CAD326CD TeSys Deca control relay - 3 NO + 2 NC - <= 690 V - 36 V DC standard coil

(No reviews yet) Write a Review
SKU:
CAD326CD
MPN:
CAD326CD
Condition:
New
Hold-In Power Consumption In W:
5.4-5.4 W 20°C
Maximum Operating Rate:
180 cyc/mn
Ip Degree Of Protection:
IP2X front face VDE 0106
Time Constant:
28 ms
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Product Or Component Type:
control relay
Control Circuit Type:
DC standard
Mounting Support:
rail || plate
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Insulation Resistance:
> 10 MOhm
Net Weight:
0.58 kg
Non-Overlap Time:
1.5 ms on energisation between NC and NO contact || 1.5 ms on de-energisation between NC and NO contact
Product Certifications:
CB || CCC || UL || CSA || EAC || CE || UKCA
Protective Treatment:
TH IEC 60068
Irms Rated Making Capacity:
140 A AC IEC 60947-5-1 || 250 A DC IEC 60947-5-1
[Icw] Rated Short-Time Withstand Current:
100 A - 1 s || 120 A - 500 ms || 140 A - 100 ms
Sustainable Offer Status:
Green Premium product
Weight:
0.58 kg
Operating Altitude:
0...9842.52 ft (0...3000 m)
Ambient Air Temperature For Operation:
-40-60°C || 60-70°C with derating
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Warranty:
18 months
Standards:
EN/IEC 60947-5-1 || GB/T 14048.5 || UL 60947-5-1 || CSA C22.2 No 60947-5-1 || JIS C8201-5-1
Ambient Air Temperature For Storage:
-60-80°C
Utilisation Category:
AC-14 || DC-13 || AC-15
Product Name:
TeSys CAD
Mechanical Durability:
30 Mcycles
Contactor Application:
control circuit
Width:
45 mm
Connections - Terminals:
lugs-ring terminals 8 mm)
Mercury Free:
Yes
Pole Contact Composition:
3 NO + 2 NC
Rohs Exemption Information:
Yes
[Ue] Rated Operational Voltage:
<= 690 V AC 25...400 Hz
Inrush Power In W:
5.4-5.4 W 20°C)
[Ith] Conventional Free Air Thermal Current:
10 A (at 60°C)
Country of Origin:
Indonesia
[Uc] Control Circuit Voltage:
36 V DC
Device Short Name:
CAD
Environmental Disclosure:
ENVPEP110230EN
Range:
TeSys || TeSys Deca
Associated Fuse Rating:
10 A gG conforming to IEC 60947-5-1
Eu Rohs Directive:
Compliant with Exemptions
[Ui] Rated Insulation Voltage:
600 V UL || 600 V CSA || 690 V IEC 60947-5-1
Circularity Profile:
ENVEOLI1102030EN
[Uimp] Rated Impulse Withstand Voltage:
6 kV IEC 60947
Operating Time:
53...72 ms coil energisation and NO closing || 16...24 ms coil de-energisation and NO opening || 47...63 ms coil energisation and NC opening || 15...25 ms coil de-energisation and NC closing
$112.20

Description

TeSys D control relay, 5 contacts (3NO + 2NC), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 36V DC control circuit with no inrush consumption and equipped with a surge suppression device, connection by lugs. For high operating rates until 180 cycles/min and ambient temperature -40/+60°C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium product (RoHS/REACh).
