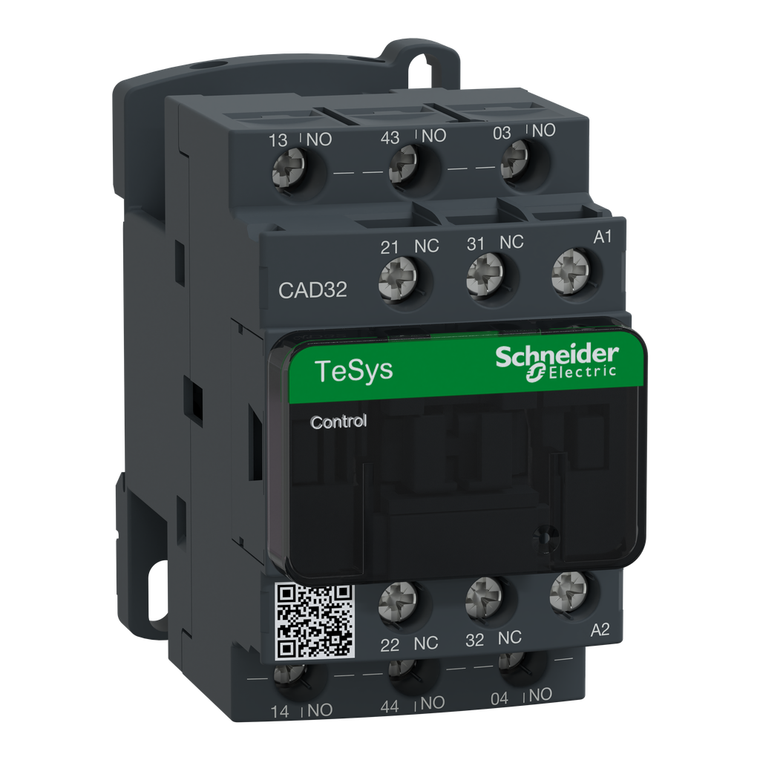

Schneider Electric CAD32FE7 TeSys Deca control relay - 3 NO + 2 NC - <= 690 V - 115 V AC standard coil

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric CAD32FE7 TeSys Deca control relay - 3 NO + 2 NC - <= 690 V - 115 V AC standard coil

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

CAD32FE7

UPC:

MPN:

CAD32FE7

Condition:

New

Weight:

0.58 kg

[Ith] Conventional Free Air Thermal Current:

10 A (at 60°C)

Operating Time:

12...22 ms coil energisation and NO closing || 4...12 ms coil de-energisation and NO opening || 4...19 ms coil energisation and NC opening || 6...17 ms coil de-energisation and NC closing

Product Certifications:

CB || CCC || UL || CSA || EAC || CE || UKCA

Mechanical Robustness:

shocks control relay open10 Gn for 11 ms IEC 60068-2-27 || shocks control relay closed15 Gn for 11 ms IEC 60068-2-27 || vibrations control relay open2 Gn, 5...300 Hz IEC 60068-2-6 || vibrations control relay closed4 Gn, 5...300 Hz IEC 60068-2-6

Minimum Switching Voltage:

17 V

Insulation Resistance:

> 10 MOhm

Mounting Support:

rail || plate

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Sustainable Offer Status:

Green Premium product

Tightening Torque:

1.2 N.m screw clamp terminals Philips No 2 || 1.2 N.m screw clamp terminals flat Ø 6 mm || 1.2 N.m screw clamp terminals pozidriv No 2

[Uc] Control Circuit Voltage:

115 V AC 50/60 Hz

Control Circuit Type:

AC 50/60 Hz

Ip Degree Of Protection:

IP2X front face VDE 0106

Device Short Name:

CAD

Depth:

84 mm

Operating Altitude:

0...9842.52 ft (0...3000 m)

Standards:

EN/IEC 60947-5-1 || GB/T 14048.5 || UL 60947-5-1 || CSA C22.2 No 60947-5-1 || JIS C8201-5-1

Connections - Terminals:

screw clamp terminals 1 1-4 mm²flexible without cable end || screw clamp terminals 2 1-4 mm²flexible without cable end || screw clamp terminals 1 1-4 mm²flexible with cable end || screw clamp terminals 2 1-2.5 mm²flexible with cable end || sc

Mechanical Durability:

30 Mcycles

Eu Rohs Directive:

Compliant with Exemptions

Control Circuit Voltage Limits:

0.3...0.6 Uc -40-70°C drop-out AC 50/60 Hz || 0.8...1.1 Uc -40-60°C operational AC 50 Hz || 0.85...1.1 Uc -40-60°C operational AC 60 Hz || 1...1.1 Uc 60-70°C operational AC 50/60 Hz

Range:

TeSys || TeSys Deca

Irms Rated Making Capacity:

140 A AC IEC 60947-5-1 || 250 A DC IEC 60947-5-1

Associated Fuse Rating:

10 A gG conforming to IEC 60947-5-1

Hold-In Power Consumption In Va:

8-8 VA 50 Hz (at 20°C)

Mercury Free:

Yes

Country of Origin:

France

Contactor Application:

control circuit

Product Name:

TeSys CAD

Width:

45 mm

[Ue] Rated Operational Voltage:

<= 690 V AC 25...400 Hz

Utilisation Category:

AC-14 || AC-15 || DC-13

Pole Contact Composition:

3 NO + 2 NC

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Net Weight:

0.58 kg

Environmental Disclosure:

ENVPEP1501004

Maximum Operating Rate:

180 cyc/mn

Product Or Component Type:

control relay

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Rohs Exemption Information:

Yes

[Ui] Rated Insulation Voltage:

600 V UL || 600 V CSA || 690 V IEC 60947-5-1

[Icw] Rated Short-Time Withstand Current:

100 A - 1 s || 120 A - 500 ms || 140 A - 100 ms

Non-Overlap Time:

1.5 ms on energisation between NC and NO contact || 1.5 ms on de-energisation between NC and NO contact

Minimum Switching Current:

5 mA

[Uimp] Rated Impulse Withstand Voltage:

6 kV IEC 60947

Inrush Power In Va:

70-70 VA 50 Hz (at 20°C)
