Schneider Electric CAD32GD TeSys Deca control relay - 3 NO + 2 NC - <= 690 V - 125 V DC standard coil

Schneider Electric CAD32GD TeSys Deca control relay - 3 NO + 2 NC - <= 690 V - 125 V DC standard coil

Schneider Electric
SKU:
CAD32GD
$112.20
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

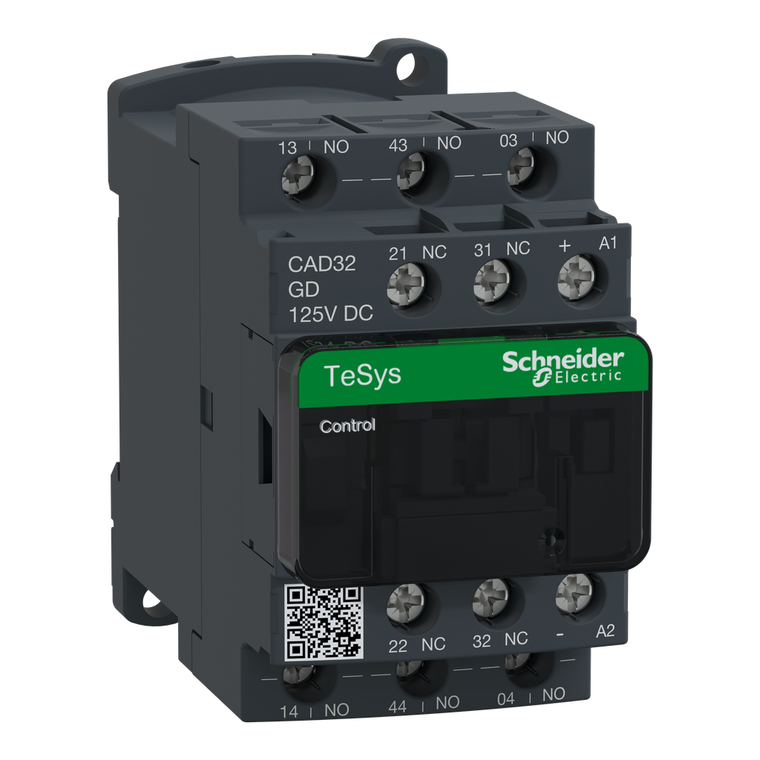

TeSys D control relay, 5 contacts (3NO + 2NC), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 125V DC control circuit with no inrush consumption and equipped with a surge suppression device, connection by screw clamp terminals. For high operating rates until 180 cycles/min and ambient temperature -40/+60°C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium product (RoHS/REACh).
Additional Information
Control Circuit Type:
DC standard
Inrush Power In W:
5.4-5.4 W 20°C)
Insulation Resistance:
> 10 MOhm
Protective Treatment:
TH IEC 60068
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Operating Altitude:
0...9842.52 ft (0...3000 m)
Product Or Component Type:
control relay
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Operating Time:
53...72 ms coil energisation and NO closing || 16...24 ms coil de-energisation and NO opening || 47...63 ms coil energisation and NC opening || 15...25 ms coil de-energisation and NC closing
Connections - Terminals:
screw clamp terminals 1 1-4 mm²flexible without cable end || screw clamp terminals 2 1-4 mm²flexible without cable end || screw clamp terminals 1 1-4 mm²flexible with cable end || screw clamp terminals 2 1-2.5 mm²flexible with cable end || sc
[Ui] Rated Insulation Voltage:
600 V UL || 600 V CSA || 690 V IEC 60947-5-1
Contactor Application:
control circuit
Environmental Disclosure:
ENVPEP110230EN
[Ith] Conventional Free Air Thermal Current:
10 A (at 60°C)
Depth:
93 mm
Ambient Air Temperature For Operation:
-40-60°C || 60-70°C with derating
Maximum Operating Rate:
180 cyc/mn
Standards:
EN/IEC 60947-5-1 || GB/T 14048.5 || UL 60947-5-1 || CSA C22.2 No 60947-5-1 || JIS C8201-5-1
[Uc] Control Circuit Voltage:
125 V DC
Mechanical Robustness:
shocks control relay open10 Gn for 11 ms IEC 60068-2-27 || shocks control relay closed15 Gn for 11 ms IEC 60068-2-27 || vibrations control relay open2 Gn, 5...300 Hz IEC 60068-2-6 || vibrations control relay closed4 Gn, 5...300 Hz IEC 60068-2-6
Non-Overlap Time:
1.5 ms on energisation between NC and NO contact || 1.5 ms on de-energisation between NC and NO contact
Mounting Support:
rail || plate
Sustainable Offer Status:
Green Premium product
Control Circuit Voltage Limits:
0.1...0.25 Uc -40-70°C drop-out DC || 0.7...1.25 Uc -40-60°C operational DC || 1...1.25 Uc 60-70°C operational DC
Eu Rohs Directive:
Compliant with Exemptions
Utilisation Category:
DC-13 || AC-14 || AC-15
Ip Degree Of Protection:
IP2X front face VDE 0106
Mechanical Durability:
30 Mcycles
Product Name:
TeSys CAD
[Uimp] Rated Impulse Withstand Voltage:
6 kV IEC 60947
Mercury Free:
Yes
Irms Rated Making Capacity:
140 A AC IEC 60947-5-1 || 250 A DC IEC 60947-5-1
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Net Weight:
0.58 kg
Range:
TeSys || TeSys Deca
Pole Contact Composition:
3 NO + 2 NC
Circularity Profile:
ENVEOLI1102030EN
Warranty:
18 months
Associated Fuse Rating:
10 A gG conforming to IEC 60947-5-1
[Ue] Rated Operational Voltage:
<= 690 V AC 25...400 Hz
Country of Origin:
Mexico
Device Short Name:
CAD
Weight:
0.58 kg
Time Constant:
28 ms
Minimum Switching Voltage:
17 V
