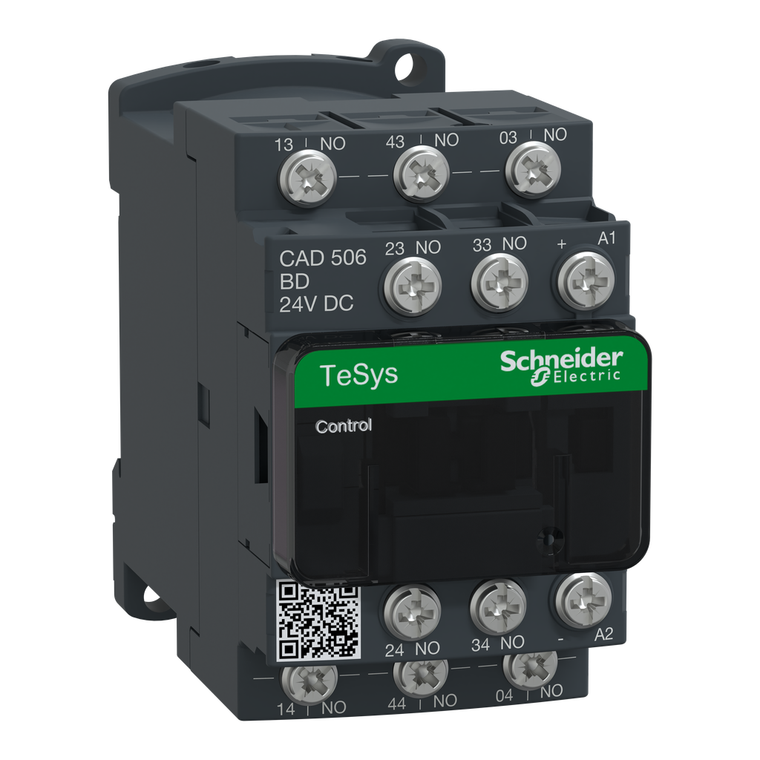

Schneider Electric CAD506BL Control relay, TeSys Deca, 5NO, <= 690V, 24VDC low consumption coil, Lugs-ring terminals
SKU:
CAD506BL
UPC:
MPN:
CAD506BL
Condition:
New
Environmental Disclosure:
ENVPEP110230EN
Connections - Terminals:
lugs-ring terminals 8 mm)
[Uc] Control Circuit Voltage:
24 V DC
Hold-In Power Consumption In W:
2.4-2.4 W 20°C
Product Or Component Type:
control relay
Mounting Support:
rail || plate
[Icw] Rated Short-Time Withstand Current:
100 A - 1 s || 120 A - 500 ms || 140 A - 100 ms
Eu Rohs Directive:
Compliant with Exemptions
Standards:
EN/IEC 60947-5-1 || GB/T 14048.5 || UL 60947-5-1 || CSA C22.2 No 60947-5-1 || JIS C8201-5-1
Mechanical Durability:
30 Mcycles
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Minimum Switching Voltage:
17 V
Irms Rated Making Capacity:
140 A AC IEC 60947-5-1 || 250 A DC IEC 60947-5-1
[Ue] Rated Operational Voltage:
<= 690 V AC 25...400 Hz
Sustainable Offer Status:
Green Premium product
Product Certifications:
CB Scheme || CCC || UL || CSA || EAC || CE || UKCA
Maximum Operating Rate:
180 cyc/mn
Depth:
93 mm
Insulation Resistance:
> 10 MOhm
Ip Degree Of Protection:
IP2X VDE 0106
Warranty:
18 months
Control Circuit Voltage Limits:
0.1...0.25 Uc -40-70°C drop-out DC || 0.7...1.25 Uc -40-60°C operational DC || 1...1.25 Uc 60-70°C operational DC
Utilisation Category:
AC-14 || DC-13 || AC-15
Control Circuit Type:
DC low consumption
Operating Altitude:
0...9842.52 ft (0...3000 m)
Mercury Free:
Yes
Minimum Switching Current:
5 mA
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Operating Time:
65...88 ms coil energisation and NO closing || 14...25 ms coil de-energisation and NO opening
Weight:
0.58 kg
Range:
TeSys
Pole Contact Composition:
5 NO
Net Weight:
0.58 kg
Time Constant:
40 ms
Mechanical Robustness:
shocks control relay open10 Gn for 11 ms IEC 60068-2-27 || shocks control relay closed15 Gn for 11 ms IEC 60068-2-27 || vibrations control relay open2 Gn, 5...300 Hz IEC 60068-2-6 || vibrations control relay closed4 Gn, 5...300 Hz IEC 60068-2-6
Rohs Exemption Information:
Yes
Circularity Profile:
ENVEOLI1102030EN
[Ith] Conventional Free Air Thermal Current:
10 A (at 60°C)
Device Short Name:
CAD
Non-Overlap Time:
1.5 ms on energisation between NC and NO contact || 1.5 ms on de-energisation between NC and NO contact
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
