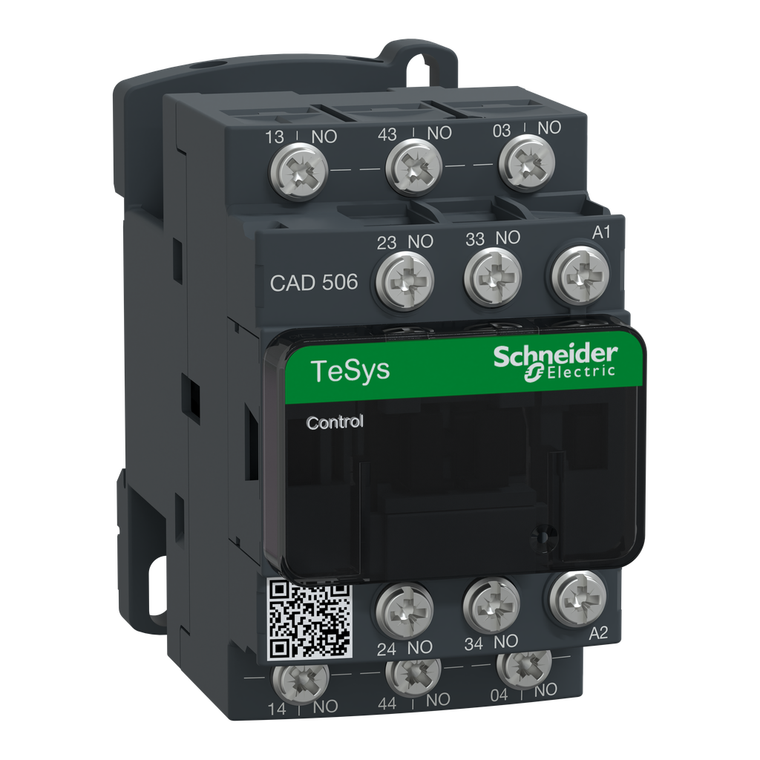

Schneider Electric CAD506M7 TeSys Deca control relay - 5 NO - <= 690 V - 220 V AC standard coil

(No reviews yet) Write a Review
SKU:
CAD506M7
MPN:
CAD506M7
Condition:
New
Sustainable Offer Status:
Green Premium product
Mercury Free:
Yes
Range:
TeSys || TeSys Deca
Product Name:
TeSys CAD
Operating Time:
12...22 ms coil energisation and NO closing || 4...12 ms coil de-energisation and NO opening
Non-Overlap Time:
1.5 ms on energisation between NC and NO contact || 1.5 ms on de-energisation between NC and NO contact
Product Certifications:
CB || CCC || UL || CSA || EAC || CE || UKCA
Hold-In Power Consumption In Va:
8-8 VA 50 Hz (at 20°C)
[Ith] Conventional Free Air Thermal Current:
10 A (at 60°C)
[Uc] Control Circuit Voltage:
220 V AC 50/60 Hz
Minimum Switching Voltage:
17 V
Control Circuit Voltage Limits:
0.3...0.6 Uc -40-70°C drop-out AC 50/60 Hz || 0.8...1.1 Uc -40-60°C operational AC 50 Hz || 0.85...1.1 Uc -40-60°C operational AC 60 Hz || 1...1.1 Uc 60-70°C operational AC 50/60 Hz
Maximum Operating Rate:
180 cyc/mn
[Ue] Rated Operational Voltage:
<= 690 V AC 25...400 Hz
Product Or Component Type:
control relay
Warranty:
18 months
Associated Fuse Rating:
10 A gG conforming to IEC 60947-5-1
Control Circuit Type:
AC 50/60 Hz
Utilisation Category:
AC-14 || DC-13 || AC-15
[Icw] Rated Short-Time Withstand Current:
100 A - 1 s || 120 A - 500 ms || 140 A - 100 ms
Ip Degree Of Protection:
IP2X front face VDE 0106
Ambient Air Temperature For Storage:
-60-80°C
Depth:
84 mm
Operating Altitude:
0...9842.52 ft (0...3000 m)
Circularity Profile:
ENVEOLI1501004
Irms Rated Making Capacity:
140 A AC IEC 60947-5-1 || 250 A DC IEC 60947-5-1
Net Weight:
0.58 kg
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Environmental Disclosure:
ENVPEP1501004
Connections - Terminals:
lugs-ring terminals 8 mm)
Insulation Resistance:
> 10 MOhm
Contactor Application:
control circuit
Device Short Name:
CAD
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Weight:
0.58 kg
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Pole Contact Composition:
5 NO
Eu Rohs Directive:
Compliant with Exemptions
Ambient Air Temperature For Operation:
-40-60°C || 60-70°C with derating
[Ui] Rated Insulation Voltage:
600 V UL || 600 V CSA || 690 V IEC 60947-5-1
Mechanical Durability:
30 Mcycles
Protective Treatment:
TH IEC 60068
Country of Origin:
France
Minimum Switching Current:
5 mA
Standards:
EN/IEC 60947-5-1 || GB/T 14048.5 || UL 60947-5-1 || CSA C22.2 No 60947-5-1 || JIS C8201-5-1
$63.25

Description

TeSys D control relay, 5 contacts (5NO), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 220V 50/60Hz AC control circuit, connection by spring terminals. For high operating rates until 180 cycles/min and ambient temperature -40/+60°C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium product (RoHS/REACh).
