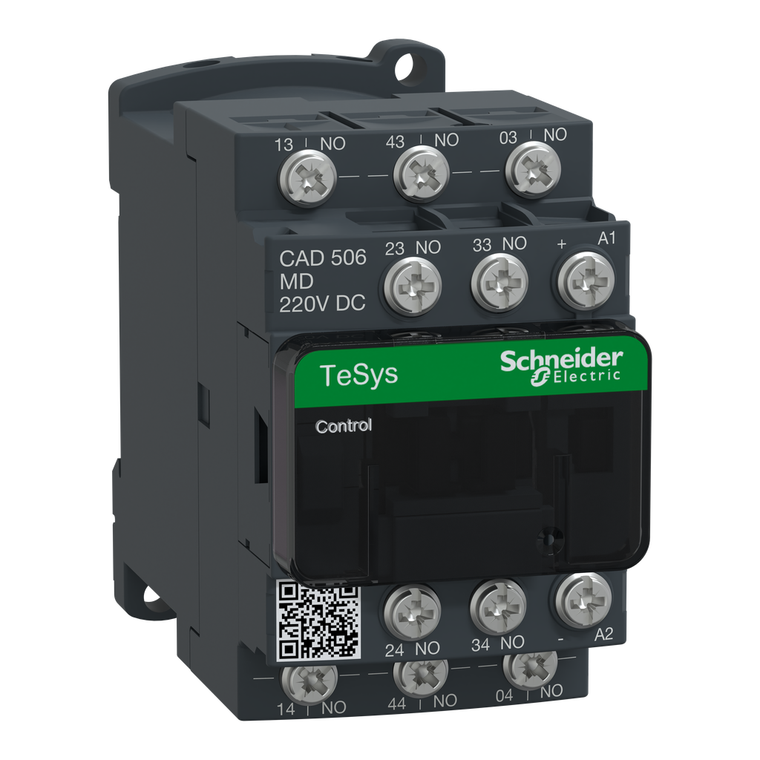

Schneider Electric CAD506MD TeSys Deca control relay - 5 NO - <= 690 V - 220 V DC standard coil

(No reviews yet) Write a Review
SKU:
CAD506MD
MPN:
CAD506MD
Condition:
New
Ambient Air Temperature For Storage:
-60-80°C
Net Weight:
0.58 kg
[Ue] Rated Operational Voltage:
<= 690 V AC 25...400 Hz
[Ith] Conventional Free Air Thermal Current:
10 A (at 60°C)
[Uc] Control Circuit Voltage:
220 V DC
Depth:
93 mm
Insulation Resistance:
> 10 MOhm
Minimum Switching Voltage:
17 V
Maximum Operating Rate:
180 cyc/mn
Weight:
0.58 kg
Control Circuit Type:
DC standard
Operating Time:
53...72 ms coil energisation and NO closing || 16...24 ms coil de-energisation and NO opening
Operating Altitude:
0...9842.52 ft (0...3000 m)
[Uimp] Rated Impulse Withstand Voltage:
6 kV IEC 60947
Range:
TeSys || TeSys Deca
Standards:
EN/IEC 60947-5-1 || GB/T 14048.5 || UL 60947-5-1 || CSA C22.2 No 60947-5-1 || JIS C8201-5-1
Sustainable Offer Status:
Green Premium product
Mechanical Durability:
30 Mcycles
Inrush Power In W:
5.4-5.4 W 20°C)
Control Circuit Voltage Limits:
0.1...0.25 Uc -40-70°C drop-out DC || 0.7...1.25 Uc -40-60°C operational DC || 1...1.25 Uc 60-70°C operational DC
Eu Rohs Directive:
Compliant with Exemptions
[Icw] Rated Short-Time Withstand Current:
100 A - 1 s || 120 A - 500 ms || 140 A - 100 ms
Mercury Free:
Yes
Circularity Profile:
ENVEOLI1102030EN
Protective Treatment:
TH IEC 60068
Device Short Name:
CAD
Rohs Exemption Information:
Yes
Non-Overlap Time:
1.5 ms on energisation between NC and NO contact || 1.5 ms on de-energisation between NC and NO contact
Product Or Component Type:
control relay
Mechanical Robustness:
shocks control relay open10 Gn for 11 ms IEC 60068-2-27 || shocks control relay closed15 Gn for 11 ms IEC 60068-2-27 || vibrations control relay open2 Gn, 5...300 Hz IEC 60068-2-6 || vibrations control relay closed4 Gn, 5...300 Hz IEC 60068-2-6
Mounting Support:
plate || rail
Product Certifications:
CB || CCC || UL || CSA || EAC || CE || UKCA
Ambient Air Temperature For Operation:
-40-60°C || 60-70°C with derating
Product Name:
TeSys CAD
Ip Degree Of Protection:
IP2X front face VDE 0106
Time Constant:
28 ms
Pole Contact Composition:
5 NO
Irms Rated Making Capacity:
140 A AC IEC 60947-5-1 || 250 A DC IEC 60947-5-1
[Ui] Rated Insulation Voltage:
600 V UL || 600 V CSA || 690 V IEC 60947-5-1
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Environmental Disclosure:
ENVPEP110230EN
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Utilisation Category:
AC-15 || DC-13 || AC-14
Associated Fuse Rating:
10 A gG conforming to IEC 60947-5-1
$112.20

Description

TeSys D control relay, 5 contacts (5NO), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 220V DC control circuit with no inrush consumption and equipped with a surge suppression device, connection by lugs. For high operating rates until 180 cycles/min and ambient temperature -40/+60°C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium product (RoHS/REACh).
