Schneider Electric CAD50FD TeSys Deca control relay - 5 NO - <= 690 V - 110 V DC standard coil

Schneider Electric CAD50FD TeSys Deca control relay - 5 NO - <= 690 V - 110 V DC standard coil

Schneider Electric
SKU:
CAD50FD
$112.20
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

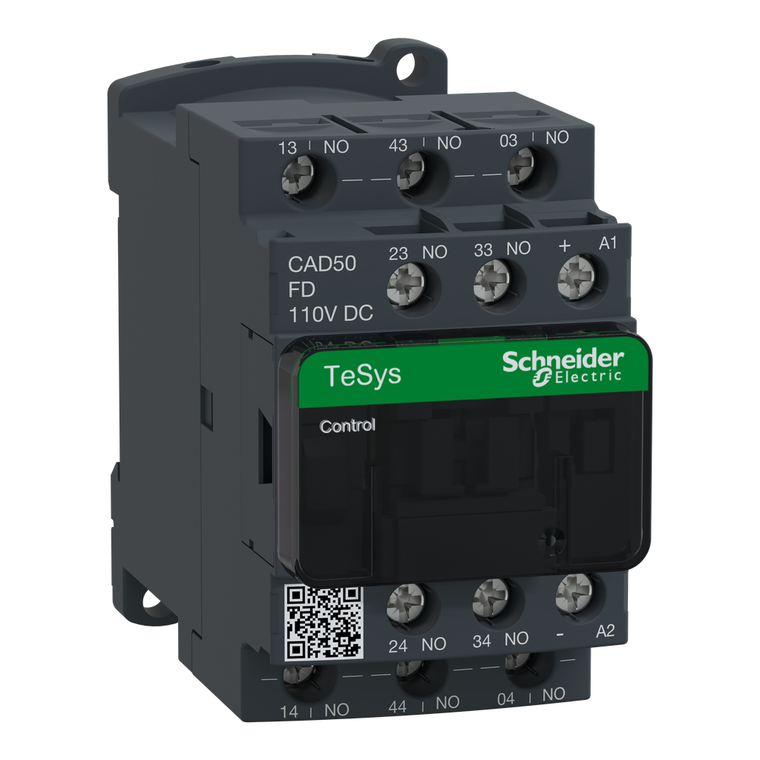

TeSys D control relay, 5 contacts (5NO), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 110V DC control circuit with no inrush consumption and equipped with a surge suppression device, connection by screw clamp terminals. For high operating rates until 180 cycles/min and ambient temperature -40/+60°C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium product (RoHS/REACh).
Additional Information
Net Weight:
0.58 kg
[Icw] Rated Short-Time Withstand Current:
100 A - 1 s || 120 A - 500 ms || 140 A - 100 ms
[Ui] Rated Insulation Voltage:
600 V UL || 600 V CSA || 690 V IEC 60947-5-1
Ambient Air Temperature For Storage:
-60-80°C
Irms Rated Making Capacity:
140 A AC IEC 60947-5-1 || 250 A DC IEC 60947-5-1
[Ith] Conventional Free Air Thermal Current:
10 A (at 60°C)
Maximum Operating Rate:
180 cyc/mn
Warranty:
18 months
Country of Origin:
Indonesia
Range:
TeSys || TeSys Deca
Device Short Name:
CAD
Standards:
EN/IEC 60947-5-1 || GB/T 14048.5 || UL 60947-5-1 || CSA C22.2 No 60947-5-1 || JIS C8201-5-1
Tightening Torque:
1.2 N.m screw clamp terminals Philips No 2 || 1.2 N.m screw clamp terminals flat Ø 6 mm || 1.2 N.m screw clamp terminals pozidriv No 2
Circularity Profile:
ENVEOLI1102030EN
Control Circuit Voltage Limits:
0.1...0.25 Uc -40-70°C drop-out DC || 0.7...1.25 Uc -40-60°C operational DC || 1...1.25 Uc 60-70°C operational DC
Sustainable Offer Status:
Green Premium product
Protective Treatment:
TH IEC 60068
[Uc] Control Circuit Voltage:
110 V DC
Minimum Switching Current:
5 mA
Weight:
0.58 kg
Operating Time:
53...72 ms coil energisation and NO closing || 16...24 ms coil de-energisation and NO opening
Rohs Exemption Information:
Yes
Minimum Switching Voltage:
17 V
Contactor Application:
control circuit
Mechanical Robustness:
shocks control relay open10 Gn for 11 ms IEC 60068-2-27 || shocks control relay closed15 Gn for 11 ms IEC 60068-2-27 || vibrations control relay open2 Gn, 5...300 Hz IEC 60068-2-6 || vibrations control relay closed4 Gn, 5...300 Hz IEC 60068-2-6
Insulation Resistance:
> 10 MOhm
Mounting Support:
rail || plate
Time Constant:
28 ms
Operating Altitude:
0...9842.52 ft (0...3000 m)
[Ue] Rated Operational Voltage:
<= 690 V AC 25...400 Hz
[Uimp] Rated Impulse Withstand Voltage:
6 kV IEC 60947
Eu Rohs Directive:
Compliant with Exemptions
Inrush Power In W:
5.4-5.4 W 20°C)
Ip Degree Of Protection:
IP2X front face VDE 0106
Product Or Component Type:
control relay
Width:
45 mm
Associated Fuse Rating:
10 A gG conforming to IEC 60947-5-1
Mercury Free:
Yes
Pole Contact Composition:
5 NO
Hold-In Power Consumption In W:
5.4-5.4 W 20°C
Connections - Terminals:
screw clamp terminals 1 1-4 mm²flexible without cable end || screw clamp terminals 2 1-4 mm²flexible without cable end || screw clamp terminals 1 1-4 mm²flexible with cable end || screw clamp terminals 2 1-2.5 mm²flexible with cable end || sc
Environmental Disclosure:
ENVPEP110230EN
Product Certifications:
CB || CCC || UL || CSA || EAC || CE || UKCA
Non-Overlap Time:
1.5 ms on energisation between NC and NO contact || 1.5 ms on de-energisation between NC and NO contact
Control Circuit Type:
DC standard
Depth:
93 mm
Product Name:
TeSys CAD
