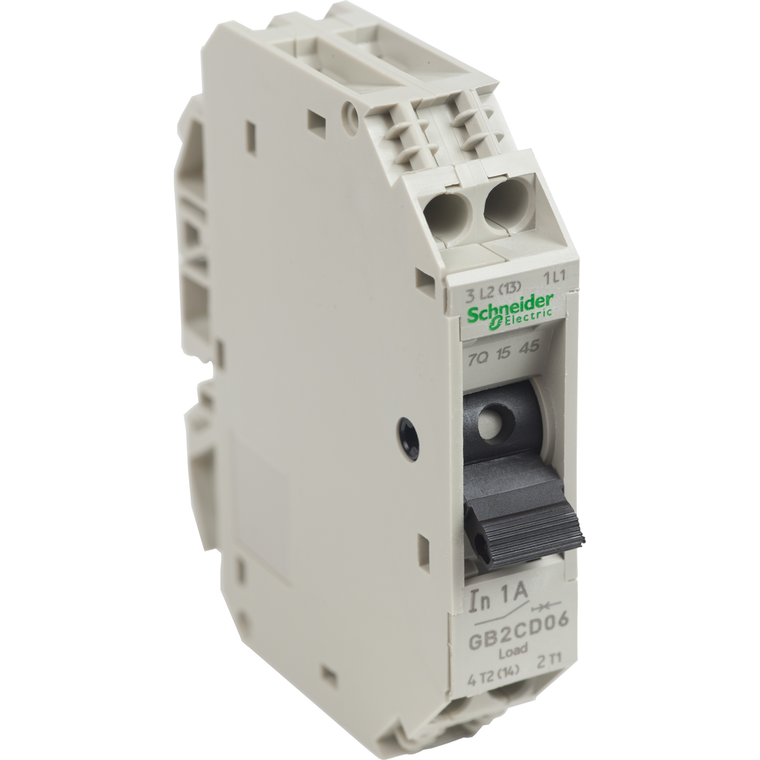

Schneider Electric GB2CD06 TeSys GB2 thermal magnetic circuit protector, 1 P + N, 1 A, Id = 14 A

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric GB2CD06 TeSys GB2 thermal magnetic circuit protector, 1 P + N, 1 A, Id = 14 A

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

GB2CD06

UPC:

MPN:

GB2CD06

Condition:

New

Utilisation Category:

category A IEC 60947-2 || DC-12 IEC 60947-5-1 || DC-13 IEC 60947-5-1

[Ue] Rated Operational Voltage:

250 V AC 50/60 Hz IEC 60947-2 || 277 V AC 60 Hz CSA C22.2 No 235 || 277 V AC 60 Hz UL 1077 || 48 V DC

Operating Altitude:

9842.52 ft (3000 m)

Mounting Mode:

by clips

Tightening Torque:

1.2 N.m connector

Network Type:

AC/DC

Depth:

67 mm

Connections - Terminals:

connector 1 0.75-6 mm²solid without cable end || connector 2 0.75-4 mm²solid without cable end || connector 1 0.75-4 mm²flexible with cable end || connector 2 0.75-2.5 mm²flexible with cable end

Network Frequency:

50/60 Hz IEC 60947-2

Mechanical Durability:

8000 cycles

California Proposition 65:

WARNING: Cancer - www.P65Warnings.ca.gov

Quantity Per Set:

set of 6

Trip Unit Technology:

thermal-magnetic

Reach Free Of Svhc:

Yes

9 Mm Pitches:

2

Product Certifications:

UL || CSA

Mercury Free:

Yes

Country of Origin:

France

Mounting Position:

horizontal || vertical

Weight:

0.07 kg

Breaking Capacity:

50 kA Icu 110 V AC 50/60 Hz IEC 60947-2 || 50 kA Icu 230/240 V AC 50/60 Hz IEC 60947-2 || 1.5 kA Icu 24 V DC IEC 60947-2 || 1 kA Icu 48 V DC IEC 60947-2

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Poles Description:

1P + N

Control Type:

toggle

Fire Resistance:

960°C IEC 60695-2-1

Rohs Exemption Information:

Yes

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

[Ics] Rated Service Short-Circuit Breaking Capacity:

25 % 230/240 V AC 50/60 Hz IEC 60947-2 || 50 % 110 V AC 50/60 Hz IEC 60947-2

Standards:

EN/IEC 60947-1 || EN/IEC 60947-2 || CSA C22.2 No 235 || UL 1077

Line Rated Current:

0.0416666666666667

Product Name:

TeSys GB2

Electrical Durability:

8000 cycles

Mounting Support:

plate || rail

Circularity Profile:

N/A

Device Short Name:

GB2

Range:

TeSys

Ambient Air Temperature For Operation:

-20-60°C

Ip Degree Of Protection:

IP20 IEC 60529

Mechanical Robustness:

shocks 22 Gn for 20 ms IEC 60068-2-27 || vibrations 5 Gn, 5...110 Hz IEC 60068-2-6

Sustainable Offer Status:

Green Premium product

Net Weight:

0.07 kg

Warranty:

18 months

Ambient Air Temperature For Storage:

-40-80°C

Protective Treatment:

TC

[Uimp] Rated Impulse Withstand Voltage:

4 kV IEC 60947-2

Toxic Heavy Metal Free:

Yes
