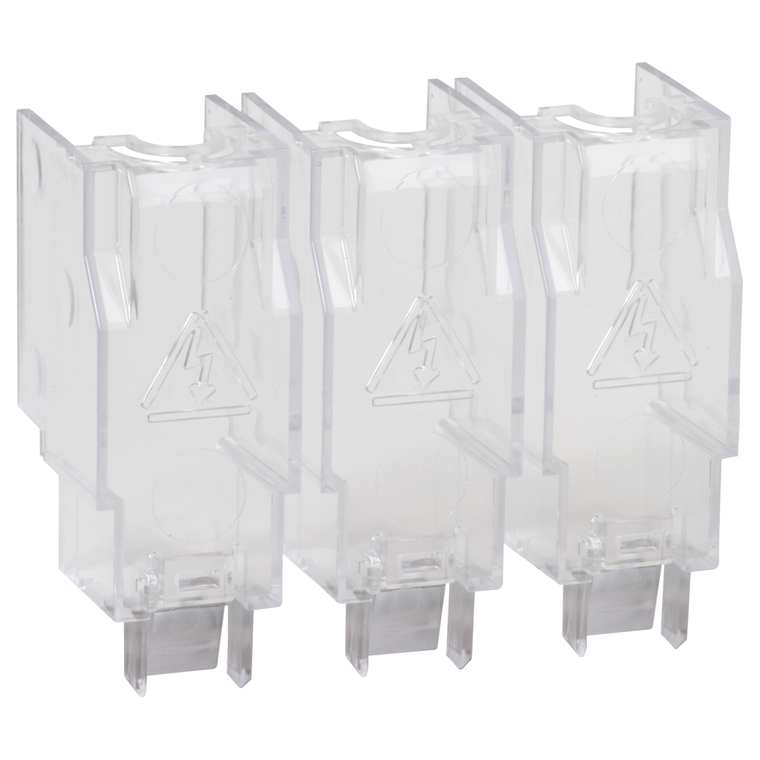

Schneider Electric GS1AP33 Terminalcover 3X100-160A
Schneider Electric
$109.99
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
TeSys GS accessory, protection terminal shroud for 3-pole 100-160A IEC fuse switch-disconnectors GS1J, GS1K, GS1L, GS2J, GS2K, GS2L and 100A UL GS2JU. Made with a semi-transparent isolating material, the shroud protects against direct contact on terminals by providing a front face IP20 protection level. It can be used for upstream or downstream protection (2 pieces are necessary for full protection). Green Premium compliant (RoHS/REACh).
- Accessory / Separate Part Category:
- protection accessory
- China Rohs Regulation:
- X
- Line Rated Current:
- 100 A || 125 A || 160 A
- Rohs Exemption Information:
- Yes
- Circularity Profile:
- ENVEOLI2003007EN
- Poles Description:
- 3P
- Standards:
- IEC
- Net Weight:
- 0.15 kg
- Toxic Heavy Metal Free:
- Yes
- Mercury Free:
- Yes
- Eu Rohs Directive:
- Compliant
- Range:
- TeSys
- Environmental Disclosure:
- ENVPEP2003007EN
- Warranty:
- 18 months
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Reach Free Of Svhc:
- Yes
- Range Compatibility:
- TeSys TeSys GS GS2J || TeSys TeSys GS GS2K || TeSys TeSys GS GS2L || FuPact FuPacT GS GSB100 || FuPact FuPacT GS GSC125 || FuPact FuPacT GS GSD125 || FuPact FuPacT GS GSD160 || FuPact FuPacT GS GSB160
- Sustainable Offer Status:
- Green Premium product
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Styrene, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
- Product Or Component Type:
- terminal shroud
- Device Short Name:
- GS1AP
- Catalog:
- View
- Datasheet:
- View
