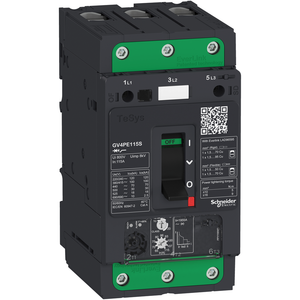

Schneider Electric GV4PEM07N Motor circuit breaker, TeSys GV4, 3P, 7A, Icu 50kA, thermal magnetic multifunction, Everlink terminals
Schneider Electric
$1,267.50
TeSys GV motor circuit breaker, 3 poles (3P), 7A/690V, for protection of 3-phase motors 1.5-3kW@400V. Multifunction circuit breaker, it provides thermal magnetic protection and advanced motor protection, breaking capacity Icu 50kA@400V, start-stop control by toggle, connection by Everlink BTR screw terminals. Thermal protection adjustable by dials with a setting current Ir in range 2.9-7A and a selectable tripping class 10 or 20, magnetic protection at 17 In. Advanced protections are adjustable with a smartphone using wireless NFC and include short time delay protection Isd with a setting range 5-13 Ir, phase unbalance and loss protection, ground fault protection, locked rotor (jam), long start. It makes internal locations available for additional auxiliary contact blocks (OF, SD), and voltage trip units (MN, MX). It can be equiped externally with 1 or 2 auxiliary SDx modules in order to have alarming and fault differentiation. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), Green Premium compliant (RoHS/REACh).
- Tightening Torque:
- 9 N.m 16-95 mm² || 5 N.m 1.5-10 mm²
- Poles Description:
- 3P
- Height:
- 155 mm
- [Ui] Rated Insulation Voltage:
- 800 V AC 50/60 Hz IEC 60947-2
- Device Application:
- motor protection
- Weight:
- 1.45 kg
- Magnetic Tripping Current:
- 119-119 A
- Range Of Product:
- TeSys GV4
- Maximum Operating Rate:
- 25 cyc/h
- Warranty:
- 18 months
- Pvc Free:
- Yes
- Range:
- TeSys Deca
- Color:
- Gray RAL 7016)
- Control Type:
- toggle
- Climatic Withstand:
- IACS E10
- Net Weight:
- 1.45 kg
- Ip Degree Of Protection:
- IP40 IEC 60529
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Motor Power Kw:
- 1.5-1.5 kW 400...415 V AC 50/60 Hz || 2.2-2.2 kW 400...415 V AC 50/60 Hz || 2.5-2.5 kW 400...415 V AC 50/60 Hz || 3-3 kW 400...415 V AC 50/60 Hz || 2.2-2.2 kW 500 V AC 50/60 Hz || 2.5-2.5 kW 500 V AC 50/60 Hz || 3-3 kW 500 V AC 50/60 Hz || 4-4 kW 500
- Product Or Component Type:
- motor circuit breaker
- Ik Degree Of Protection:
- IK07 IEC 62262
- Utilisation Category:
- category A IEC 60947-2 || AC-3 IEC 60947-4-1
- [Ith] Conventional Free Air Thermal Current:
- 115 A IEC 60947-4-1
- Suitability For Isolation:
- yes IEC 60947-1
- Line Rated Current:
- 0.291666666666667
- Mechanical Durability:
- 40000 cycles
- Halogen Content Performance:
- Halogen free plastic parts product
- Phase Failure Sensitivity:
- yes IEC 60947-4-1
- Connections - Terminals:
- EverLink BTR screw connectors top) 1 1.5-70 mm² - solid || EverLink BTR screw connectors top) 1 1.5-50 mm² - flexible || EverLink BTR screw connectors bottom) 1 2.5-95 mm² - solid || EverLink BTR screw connectors bottom) 1 2.5-70 mm² - flexible
- Rated Duty:
- continuous IEC 60947-4-1
- Mercury Free:
- Yes
- Product Name:
- TeSys GV4 || TeSys Deca
- Electrical Durability:
- 40000 cycles AC-3 440 V In/2 || 40000 cycles AC-3 440 V In
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Mechanical Robustness:
- vibrations +/- 1 mm 2...13.2 Hz IEC 60068-2-6 || vibrations 0.7 gn 13.2...100 Hz IEC 60068-2-6 || shocks 15 gn 11 ms IEC 60068-2-27
- Trip Unit Technology:
- electronic || thermal-magnetic
- Environmental Disclosure:
- ENVPEP1704004EN
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Ambient Air Temperature For Storage:
- -50-85°C
- [Ue] Rated Operational Voltage:
- 690 V AC 50/60 Hz IEC 60947-2
- Product Certifications:
- IEC || UL || CSA || CCC || EAC || ATEX || EU-RO MR
- Device Short Name:
- GV4PEM
- Rohs Exemption Information:
- Yes
- Fire Resistance:
- 960°C IEC 60695-2-11
- Sustainable Offer Status:
- Green Premium product
- Power Dissipation Per Pole:
- 4.6 W
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Country of Origin:
- Poland
