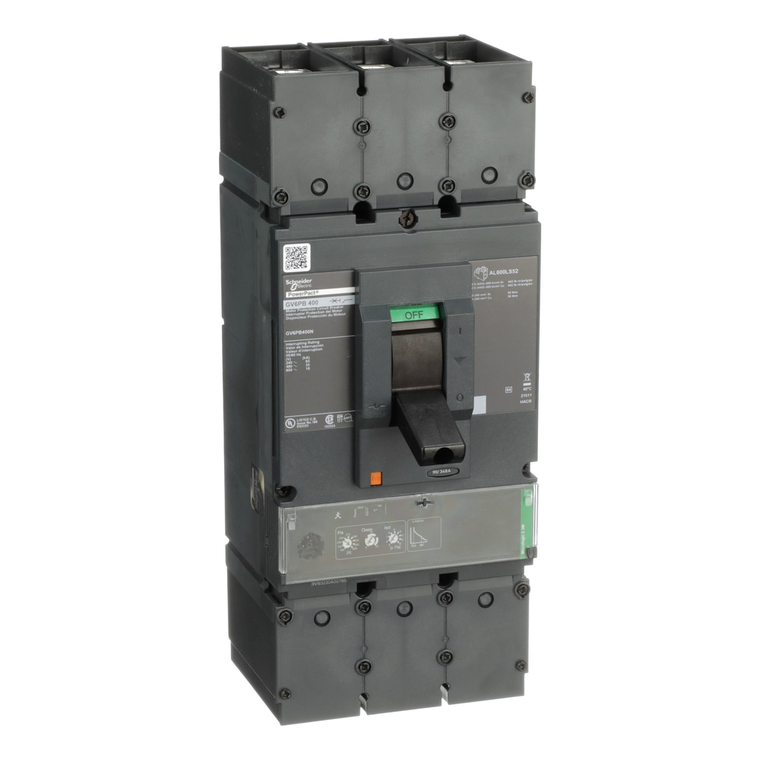

Schneider Electric GV6PB400N TeSys Motor Protection Circuit Breaker, 400A, 3P, 600V, 18kA
SKU:
GV6PB400N
UPC:
MPN:
GV6PB400N
Condition:
New
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
[Ue] Rated Operational Voltage:
600 V AC
Phase Failure Sensitivity:
yes
Product Or Component Type:
motor protection circuit breaker
Line Rated Current:
400 A
Tightening Torque:
4.4-50 N.m 70-240 mm² (AWG 2/0...500 kcmil)
Eu Rohs Directive:
Compliant with Exemptions
Thermal Protection Adjustment Range:
190-348 A
Awg Gauge:
AWG 2/0...500 kcmil aluminium/copper
Country of Origin:
United States
Mounting Mode:
unit mount
Ambient Air Temperature For Operation:
40-40°C
Poles Description:
3P
Mercury Free:
Yes
Environmental Disclosure:
ENVPEP2206029EN
Product Certifications:
UL Listed || CSA
Breaking Capacity:
65 kA 240 V AC || 35 kA 480 V AC || 18 kA 600 V AC
