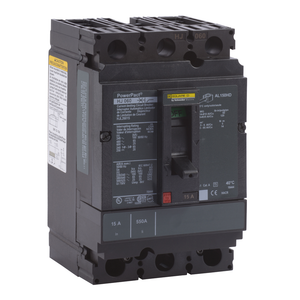

Schneider Electric HGA260252 Molded Case Circuit Breaker 600V 25A
Schneider Electric
$2,007.00
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 18kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. PowerPacT H I-Line circuit breakers are available in I-Line construction for easy installation and removal in I-Line applications. This breaker has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT H, 25A, 2 pole, circuit breaker has a breaking capacity of 18kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an AC phase connection. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Ambient Air Temperature For Storage:
- -50-85 °C
- Suitability For Isolation:
- yes IEC 60947-2
- Protected Poles Description:
- 2t
- Terminal Identifier:
- AL150HD
- Ambient Air Temperature For Operation:
- -2-70 °C
- Color:
- Black
- Net Weight:
- 2.2 kg
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Ip Degree Of Protection:
- front cover IP40 IEC 60529
- Local Signalling:
- switched off (OFF) 1 trip indicator green)
- Network Frequency:
- 50/60 Hz
- Circularity Profile:
- ENVEOLI1311006EN
- Height:
- 163 mm
- Magnetic Hold Current:
- 350 A
- Product Certifications:
- UL || CSA || NOM
- Warranty:
- 18 months
- Product Name:
- PowerPact H
- Control Type:
- toggle
- Poles Description:
- 2P
- Quantity Per Set:
- 1
- Communication Interface:
- Modbus || Ethernet
- Depth:
- 86 mm
- Device Application:
- distribution
- Environmental Disclosure:
- ENVPEP1311006EN
- Tightening Torque:
- 5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
- Phase Connection:
- AC
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Breaking Capacity Code:
- G
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- [Ics] Rated Service Breaking Capacity:
- 65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Width:
- 104 mm
- Circuit Breaker Application:
- HACR rated
- Rohs Exemption Information:
- Yes
- Mercury Free:
- Yes
- Line Rated Current:
- 25-25 A
- Eu Rohs Directive:
- Compliant
- Pollution Degree:
- 3 IEC 60947-1
- Electrical Connection:
- I-Line connection, line || lugs, load
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Mounting Support:
- bracket
- Trip Unit Technology:
- thermal-magnetic
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- Range:
- PowerPact
- Breaking Capacity:
- 65 kA 240 V AC 50/60 Hz UL 489 || 35 kA 480 V AC 50/60 Hz UL 489 || 18 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 20 kA 500 V DC UL 489
- Mounting Height:
- 3 in
- Product Or Component Type:
- circuit breaker
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Wire Stripping Length:
- 16 mm
- Quality Labels:
- CE
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Mounting Mode:
- I-Line bracket)
- Sustainable Offer Status:
- Green Premium product
- Magnetic Tripping Current:
- 750-750 A
- Awg Gauge:
- AWG 14...AWG 3/0 aluminium/copper terminal
- Continuous Current Rating:
- 0.8
- Pvc Free:
- Yes
- Utilisation Category:
- category A
- [Ue] Rated Operational Voltage:
- 690 V AC 50/60 Hz IEC 60947-3
