Schneider Electric HGA36025 Molded Case Circuit Breaker 600V 25A
Schneider Electric

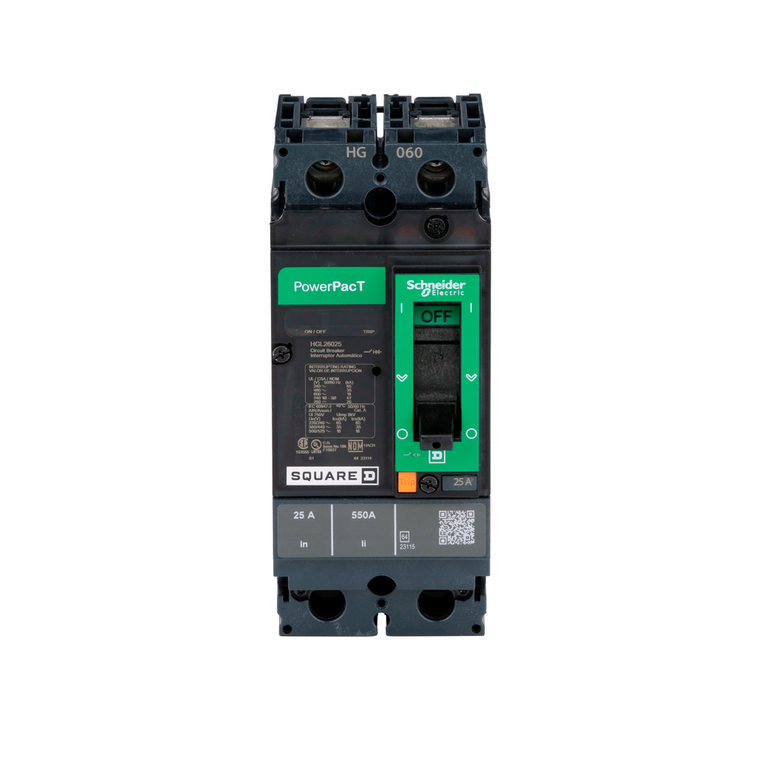

Schneider Electric HGL26025 Molded Case Circuit Breaker 600V 25A
Schneider Electric
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 18kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT H, 25A, 2 pole, circuit breaker has a breaking capacity of 18kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Product Or Component Type:
- circuit breaker
- Mercury Free:
- Yes
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Quantity Per Set:
- 1
- Ambient Air Temperature For Operation:
- -2-70 °C
- Electrical Connection:
- lugs, line || lugs, load
- Suitability For Isolation:
- yes IEC 60947-2
- Utilisation Category:
- category A
- Range:
- PowerPact
- Sustainable Offer Status:
- Green Premium product
- Warranty:
- 18 months
- Rohs Exemption Information:
- Yes
- Breaking Capacity:
- 65 kA 240 V AC 50/60 Hz UL 489 || 35 kA 480 V AC 50/60 Hz UL 489 || 18 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 20 kA 500 V DC UL 489
- Pollution Degree:
- 3 IEC 60947-1
- Protected Poles Description:
- 2t
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Local Signalling:
- switched off (OFF) 1 trip indicator green)
- Poles Description:
- 2P
- Terminal Identifier:
- AL150HD
- Network Frequency:
- 50/60 Hz
- Environmental Disclosure:
- ENVPEP2206027EN
- Continuous Current Rating:
- 0.8
- Product Certifications:
- UL || CSA || NOM
- Tightening Torque:
- 5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
- Depth:
- 86 mm
- Wire Stripping Length:
- 16 mm
- Mounting Mode:
- unit mount lug)
- Circuit Breaker Application:
- HACR rated
- Control Type:
- toggle
- Magnetic Tripping Current:
- 750-750 A
- Ip Degree Of Protection:
- front cover IP40 IEC 60529
- Quality Labels:
- CE
- Product Name:
- PowerPact H
- [Ue] Rated Operational Voltage:
- 690 V AC 50/60 Hz IEC 60947-3
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Pvc Free:
- Yes
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Net Weight:
- 2.2 kg
- Magnetic Hold Current:
- 350 A
- [Ics] Rated Service Breaking Capacity:
- 65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- Width:
- 104 mm
- Line Rated Current:
- 25-25 A
- Breaking Capacity Code:
- G
- Mounting Support:
- lug
- Eu Rohs Directive:
- Compliant with Exemptions
- Ambient Air Temperature For Storage:
- -50-85 °C
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Device Application:
- distribution
- Communication Interface:
- Modbus || Ethernet
- Trip Unit Technology:
- thermal-magnetic
- Circularity Profile:
- ENVEOLI2206027EN
- Awg Gauge:
- AWG 14...AWG 3/0 aluminium/copper terminal
- Color:
- Black
- Height:
- 163 mm
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
