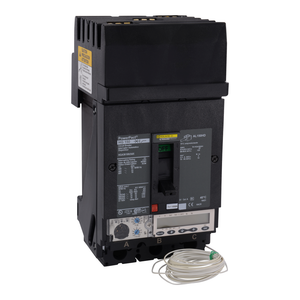

Schneider Electric HGA36060U54X Circuit breaker, PowerPacT H, 60A, 3 pole, 600VAC, 18kA, I-Line, Micrologic 6.2E, 80%, ABC
Schneider Electric
$3,709.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric HGA36060U54X Circuit breaker, PowerPacT H, 60A, 3 pole, 600VAC, 18kA, I-Line, Micrologic 6.2E, 80%, ABC
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides Micrologic Energy with a 6.2E trip unit and an LSIG function with a breaking capacity of 18kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. PowerPacT H I-Line circuit breakers are available in I-Line construction for easy installation and removal in I-Line applications. This breaker has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT H, 60A, 3 pole, circuit breaker has a breaking capacity of 18kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Height:
- 163 mm
- Quantity Per Set:
- 1
- Mounting Height:
- 4.5 in
- Rohs Exemption Information:
- Yes
- Device Application:
- distribution
- Electrical Connection:
- I-Line connection, line || lugs, load
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Phase Connection:
- ABC
- Pvc Free:
- Yes
- Control Type:
- toggle
- Mercury Free:
- Yes
- Suitability For Isolation:
- yes IEC 60947-2
- Communication Interface:
- Modbus || Ethernet
- Eu Rohs Directive:
- Compliant with Exemptions
- Ambient Air Temperature For Storage:
- -50-85°C
- Length:
- 16 mm
- Country of Origin:
- United States
- Poles Description:
- 3P
- Warranty:
- 18 months
- Breaking Capacity Code:
- G
- Mounting Support:
- bracket
- Local Signaling:
- ready 1 LED green) || alarm 1 LED 90 % Ir orange) || alarm LED 105 % Ir red) || switched off (OFF) 1 trip indicator green)
- Ip Degree Of Protection:
- front cover IP40 IEC 60529
- Range:
- PowerPact
- Long Time Pick-Up Adjustment Range:
- 0.25...1 x In
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Net Weight:
- 2.2 kg
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Mounting Mode:
- I-Line bracket)
- Color:
- Black
- Continuous Current Rating:
- 0.8
- Utilisation Category:
- category A
- Terminal Identifier:
- AL150HD
- Wire Stripping Length:
- 16 mm
- Network Frequency:
- 50/60 Hz
- Trip Unit Name:
- MicroLogic 6.2 E
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Protected Poles Description:
- 3t
- Awg Gauge:
- AWG 14...AWG 3/0 aluminium/copper terminal
- Tightening Torque:
- 5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
- Weight:
- 2.2 kg
- Circularity Profile:
- ENVEOLI2206028EN
- Depth:
- 86 mm
- Sustainable Offer Status:
- Green Premium product
- Trip Unit Technology:
- electronic, energy, MicroLogic 6.2 E, LSIG
- [Ue] Rated Operational Voltage:
- 690 V AC 50/60 Hz IEC 60947-3
- Product Certifications:
- UL || CSA || NOM
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
