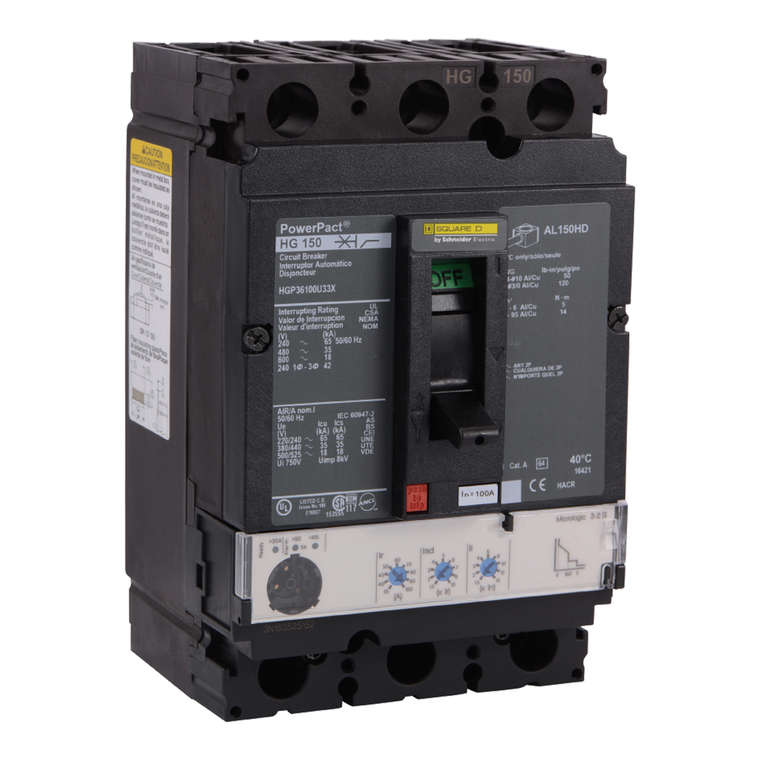

Schneider Electric HGP36100U33X Circuit breaker, PowerPacT H, 100A, 3 pole, 600VAC, 18kA, lugs, Micrologic 3.2S, 80%

Schneider Electric HGP36100U33X Circuit breaker, PowerPacT H, 100A, 3 pole, 600VAC, 18kA, lugs, Micrologic 3.2S, 80%

Schneider Electric
SKU:
HGP36100U33X
$2,046.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides Micrologic Standard with a 3.2S trip unit and an LSI function with a breaking capacity of 18kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has terminal nuts on the line side and lugs on the load side. This PowerPacT H, 100A, 3 pole, circuit breaker has a breaking capacity of 18kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Utilisation Category:
category A
Product Name:
PowerPact H
Ambient Air Temperature For Storage:
-50-85°C
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
[Ue] Rated Operational Voltage:
690 V AC 50/60 Hz IEC 60947-3
Quantity Per Set:
1
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Breaking Capacity:
65 kA 240 V AC 50/60 Hz UL 489 || 35 kA 480 V AC 50/60 Hz UL 489 || 18 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 20 kA 500 V DC UL 489
Height:
163 mm
Product Or Component Type:
circuit breaker
Awg Gauge:
AWG 14...AWG 3/0 aluminium/copper terminal
Continuous Current Rating:
0.8
Environmental Disclosure:
ENVPEP2206028EN
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Mounting Support:
lug
Circuit Breaker Application:
HACR rated
[Ics] Rated Service Breaking Capacity:
65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
Trip Unit Name:
MicroLogic 3.2 S
Color:
Black
Protected Poles Description:
3t
Range:
PowerPact
Product Certifications:
UL || CSA || NOM
Weight:
2.2 kg
Pvc Free:
Yes
Device Application:
distribution
Terminal Identifier:
AL150HD
Pollution Degree:
3 IEC 60947-1
Wire Stripping Length:
16 mm
Trip Unit Technology:
electronic, standard, MicroLogic 3.2 S, LSI
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Breaking Capacity Code:
G
Communication Interface:
Modbus || Ethernet
Tightening Torque:
5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
Suitability For Isolation:
yes IEC 60947-2
Control Type:
toggle
Long Time Pick-Up Adjustment Range:
0.25...1 x In
Circularity Profile:
ENVEOLI2206028EN
Mounting Mode:
unit mount lug)
Network Frequency:
50/60 Hz
Electrical Connection:
terminal nut, line || lugs, load
Length:
16 mm
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Quality Labels:
CE
Net Weight:
2.2 kg
Ambient Air Temperature For Operation:
-25-70°C
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
Sustainable Offer Status:
Green Premium product
