Schneider Electric HJA260251 Molded Case Circuit Breaker 600V 25A
Schneider Electric
$3,575.25
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

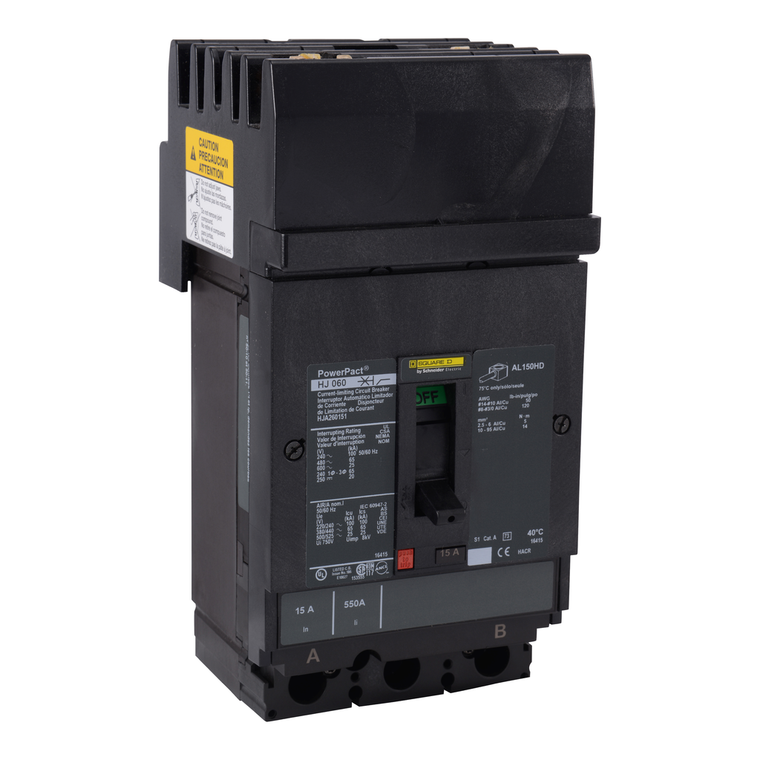

Schneider Electric HJA260251 Molded Case Circuit Breaker 600V 25A
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 25kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. PowerPacT H I-Line circuit breakers are available in I-Line construction for easy installation and removal in I-Line applications. This breaker has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT H, 25A, 2 pole, circuit breaker has a breaking capacity of 25kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an AB phase connection. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Rohs Exemption Information:
- Yes
- Warranty:
- 18 months
- Net Weight:
- 2.2 kg
- Control Type:
- toggle
- Height:
- 163 mm
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Breaking Capacity:
- 100 kA 240 V AC 50/60 Hz UL 489 || 65 kA 480 V AC 50/60 Hz UL 489 || 25 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Sustainable Offer Status:
- Green Premium product
- Continuous Current Rating:
- 0.8
- Ambient Air Temperature For Storage:
- -50-85 °C
- Tightening Torque:
- 5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
- Utilisation Category:
- category A
- Local Signalling:
- switched off (OFF) 1 trip indicator green)
- Mercury Free:
- Yes
- Product Certifications:
- UL || CSA || NOM
- Width:
- 104 mm
- Circuit Breaker Application:
- HACR rated
- Mounting Mode:
- I-Line bracket)
- Product Or Component Type:
- circuit breaker
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Pollution Degree:
- 3 IEC 60947-1
- Magnetic Tripping Current:
- 750-750 A
- Mounting Height:
- 4.5 in
- Circularity Profile:
- ENVEOLI1311006EN
- Ip Degree Of Protection:
- front cover IP40 IEC 60529
- Trip Unit Technology:
- thermal-magnetic
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Terminal Identifier:
- AL150HD
- Quantity Per Set:
- 1
- Device Application:
- distribution
- Awg Gauge:
- AWG 14...AWG 3/0 aluminium/copper terminal
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Wire Stripping Length:
- 16 mm
- Mounting Support:
- bracket
- Breaking Capacity Code:
- J
- Line Rated Current:
- 25-25 A
- Network Frequency:
- 50/60 Hz
- [Ue] Rated Operational Voltage:
- 690 V AC 50/60 Hz IEC 60947-3
- [Ics] Rated Service Breaking Capacity:
- 100 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 65 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 25 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Phase Connection:
- AB
- Eu Rohs Directive:
- Compliant
- Suitability For Isolation:
- yes IEC 60947-2
- Poles Description:
- 2P
- Communication Interface:
- Modbus || Ethernet
- Protected Poles Description:
- 2t
- Pvc Free:
- Yes
- Ambient Air Temperature For Operation:
- -2-70 °C
- Electrical Connection:
- I-Line connection, line || lugs, load
- Color:
- Black
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- Magnetic Hold Current:
- 350 A
- Environmental Disclosure:
- ENVPEP1311006EN
- Range:
- PowerPact
- Product Name:
- PowerPact H
- Quality Labels:
- CE
- Depth:
- 86 mm
