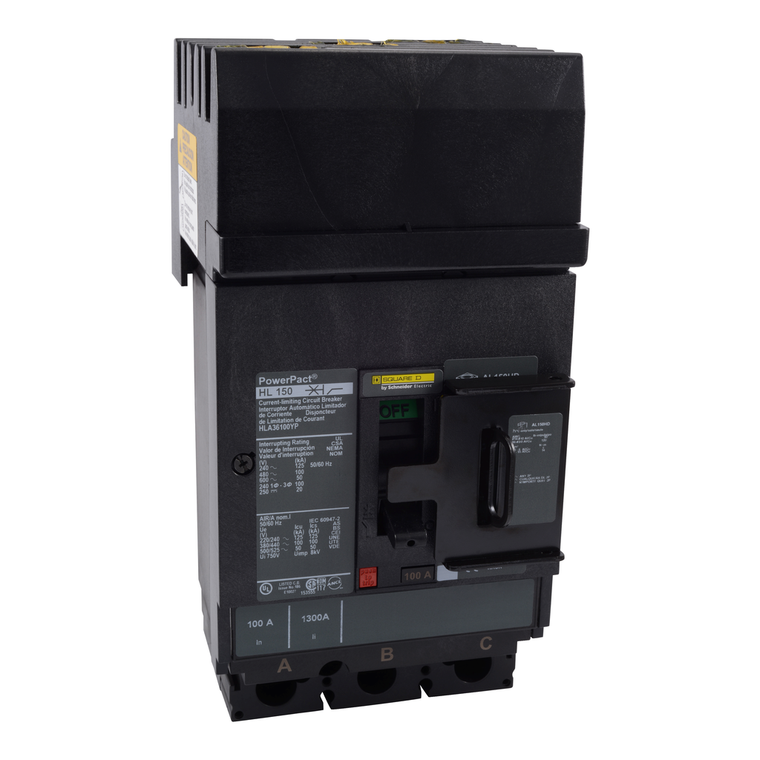

Schneider Electric HLA36100U53X Circuit breaker, PowerPacT H, 100A, 3 pole, 600VAC, 50kA, I-Line, Micrologic 5.2E, 80%, ABC

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric HLA36100U53X Circuit breaker, PowerPacT H, 100A, 3 pole, 600VAC, 50kA, I-Line, Micrologic 5.2E, 80%, ABC

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

HLA36100U53X

UPC:

MPN:

HLA36100U53X

Condition:

New

Tightening Torque:

5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)

Eu Rohs Directive:

Compliant

Trip Unit Technology:

electronic, energy, MicroLogic 5.2 E, LSI

Mounting Support:

bracket

Continuous Current Rating:

0.8

Range:

PowerPact

Phase Connection:

ABC

Quantity Per Set:

1

Ip Degree Of Protection:

front cover IP40 IEC 60529

Magnetic Tripping Current:

1700-1700 A

Utilisation Category:

category A

Suitability For Isolation:

yes IEC 60947-2

Mounting Mode:

I-Line bracket)

Net Weight:

2.2 kg

Country of Origin:

United States

Circuit Breaker Application:

HACR rated

Number Of Slots:

2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)

Pollution Degree:

3 IEC 60947-1

Operating Altitude:

< 6561.68 ft (2000 m) without derating || 5000 m with derating

[Ui] Rated Insulation Voltage:

750 V IEC 60947-2

Length:

16 mm

Local Signaling:

ready 1 LED green) || alarm 1 LED 90 % Ir orange) || alarm LED 105 % Ir red) || switched off (OFF) 1 trip indicator green)

Protected Poles Description:

3t

Control Type:

toggle

Quality Labels:

CE

Awg Gauge:

AWG 14...AWG 3/0 aluminium/copper terminal

Mounting Height:

4.5 in

Height:

163 mm

Breaking Capacity Code:

L

Color:

Black

Weight:

2.2 kg

Product Certifications:

UL || CSA || NOM

[Ics] Rated Service Breaking Capacity:

125 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 100 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 50 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2

Mercury Free:

Yes

Terminal Identifier:

AL150HD

Trip Unit Name:

MicroLogic 5.2 E

Height:

4.5 in

Standards:

UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2

Rohs Exemption Information:

Yes

Product Name:

PowerPact H

Pvc Free:

Yes

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Environmental Disclosure:

ENVPEP1311007EN

Poles Description:

3P

Magnetic Hold Current:

900 A

California Proposition 65:

WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information

Communication Interface:

Modbus || Ethernet

Product Or Component Type:

circuit breaker
