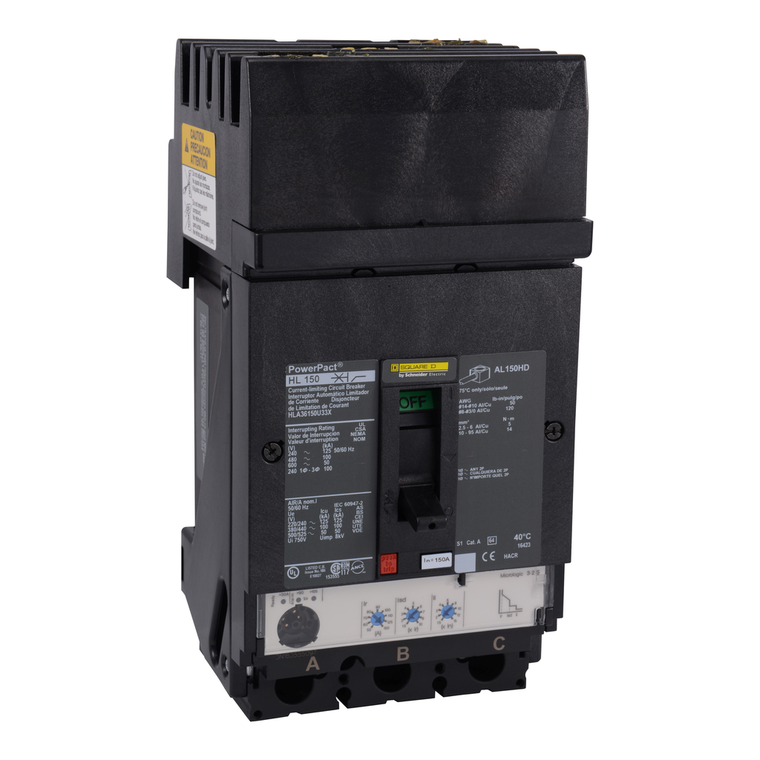

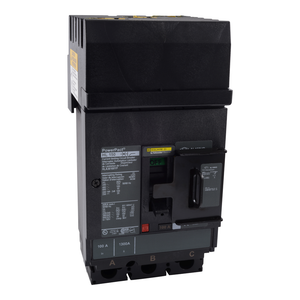

Schneider Electric HLA36150U43X Circuit breaker, PowerPacT H, 150A, 3 pole, 600VAC, 50kA, I-Line, Micrologic 5.2A, 80%, ABC

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric HLA36150U43X Circuit breaker, PowerPacT H, 150A, 3 pole, 600VAC, 50kA, I-Line, Micrologic 5.2A, 80%, ABC

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

HLA36150U43X

UPC:

MPN:

HLA36150U43X

Condition:

New

Pvc Free:

Yes

Communication Interface:

Modbus || Ethernet

Quality Labels:

CE

[Ui] Rated Insulation Voltage:

750 V IEC 60947-2

[Uimp] Rated Impulse Withstand Voltage:

8 kV IEC 60947-2

Weight:

2.2 kg

Operating Altitude:

< 6561.68 ft (2000 m) without derating || 5000 m with derating

Warranty:

18 months

Range:

PowerPact

Environmental Disclosure:

ENVPEP2206028EN

Wire Stripping Length:

16 mm

Mounting Mode:

I-Line bracket)

Rohs Exemption Information:

Yes

Continuous Current Rating:

0.8

Trip Unit Technology:

electronic, ammeter, MicroLogic 5.2 A, LSI

Product Name:

PowerPact H

Trip Unit Name:

MicroLogic 5.2 A

Tightening Torque:

5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)

Network Frequency:

50/60 Hz

Number Of Slots:

2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)

Product Or Component Type:

circuit breaker

Breaking Capacity Code:

L

Net Weight:

2.2 kg

Depth:

86 mm

Terminal Identifier:

AL150HD

Mounting Height:

4.5 in

Circuit Breaker Application:

HACR rated

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Poles Description:

3P

Control Type:

toggle

Height:

163 mm

California Proposition 65:

WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information

Mounting Support:

bracket

Phase Connection:

ABC

Length:

16 mm

Width:

104 mm

[Ue] Rated Operational Voltage:

690 V AC 50/60 Hz IEC 60947-3

Local Signaling:

ready 1 LED green) || alarm 1 LED 90 % Ir orange) || alarm LED 105 % Ir red) || switched off (OFF) 1 trip indicator green)

Protected Poles Description:

3t

Eu Rohs Directive:

Compliant with Exemptions

Awg Gauge:

AWG 14...AWG 3/0 aluminium/copper terminal

Ambient Air Temperature For Storage:

-50-85°C

Electrical Connection:

I-Line connection, line || lugs, load

Standards:

UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Height:

4.5 in

Product Certifications:

UL || CSA || NOM

[Ics] Rated Service Breaking Capacity:

125 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 100 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 50 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2

Long Time Pick-Up Adjustment Range:

0.25...1 x In

Quantity Per Set:

1
